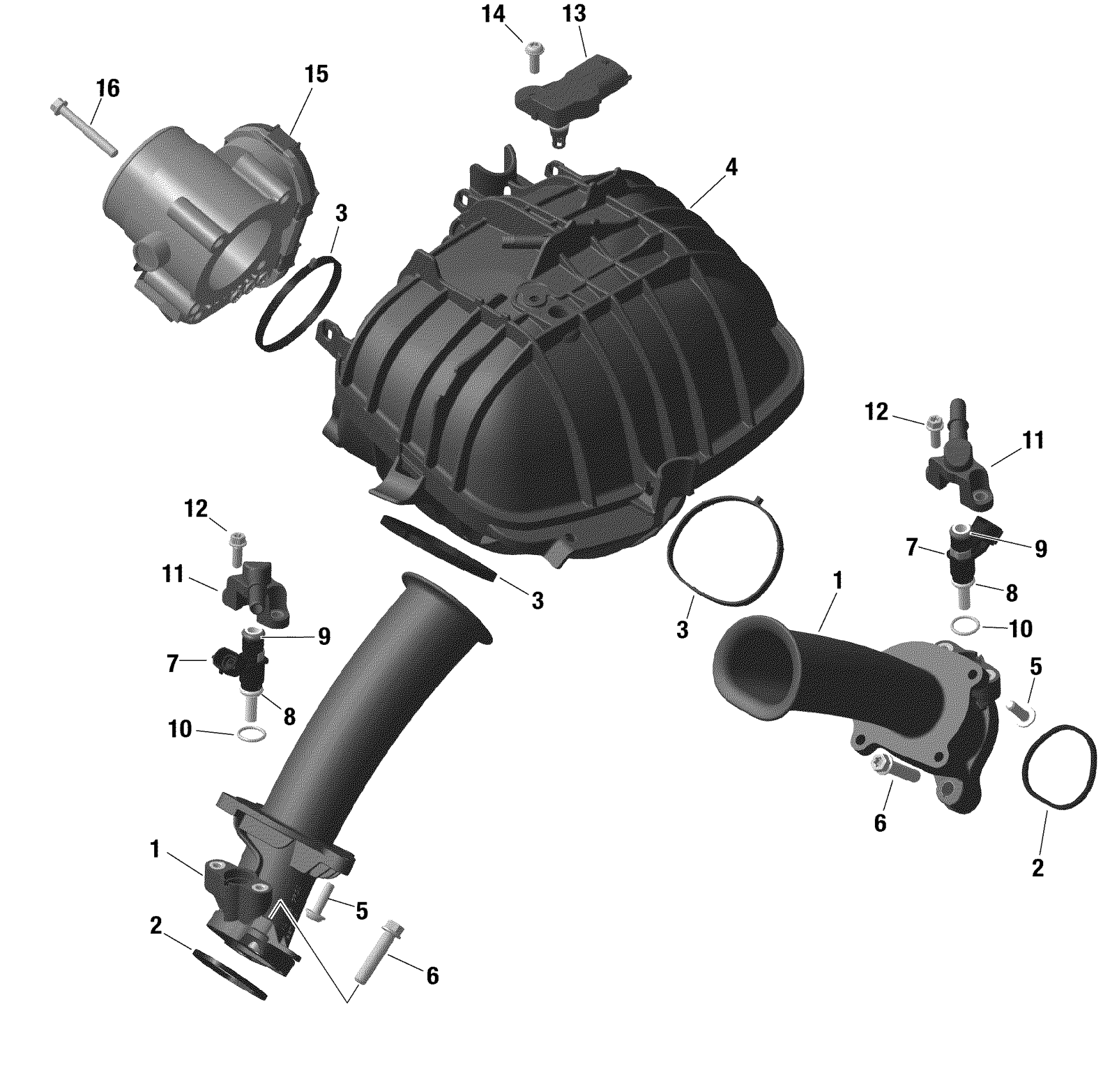

Can-Am Maverick Sport 1000R - DPS - 2020 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667830

$69.99

2

Gasket

420630642

$5.39

3

Gasket | Included in gasket kit

420431900

$5.40

4

Manifold Air Inlet

420667838

$184.99

5

Torx Flange Screw M6 X 20

420841103

$3.66

6

Torx Flange Screw M8 X 35

420641188

$7.41

7

Injection Valve Ass'y | Includes 18 to 20

420874887

$174.99

8

O-Ring

420431890

$7.49

9

O-Ring

420631220

$14.28

10

O-Ring

420631296

$0.76

11

Fuel Rail

420874901

$24.49

12

Torx Flange Screw M6 X 16

420440162

$3.17

13

Pressure And Temperature Sensor

707000995

$88.99

14

Torx Flange Screw M6 X 16

420641588

$2.11

15

Throttle Body Socket Ass'y

420892596

$466.49

16

Torx Flange Screw M6 X 45

420440324

$0.98
