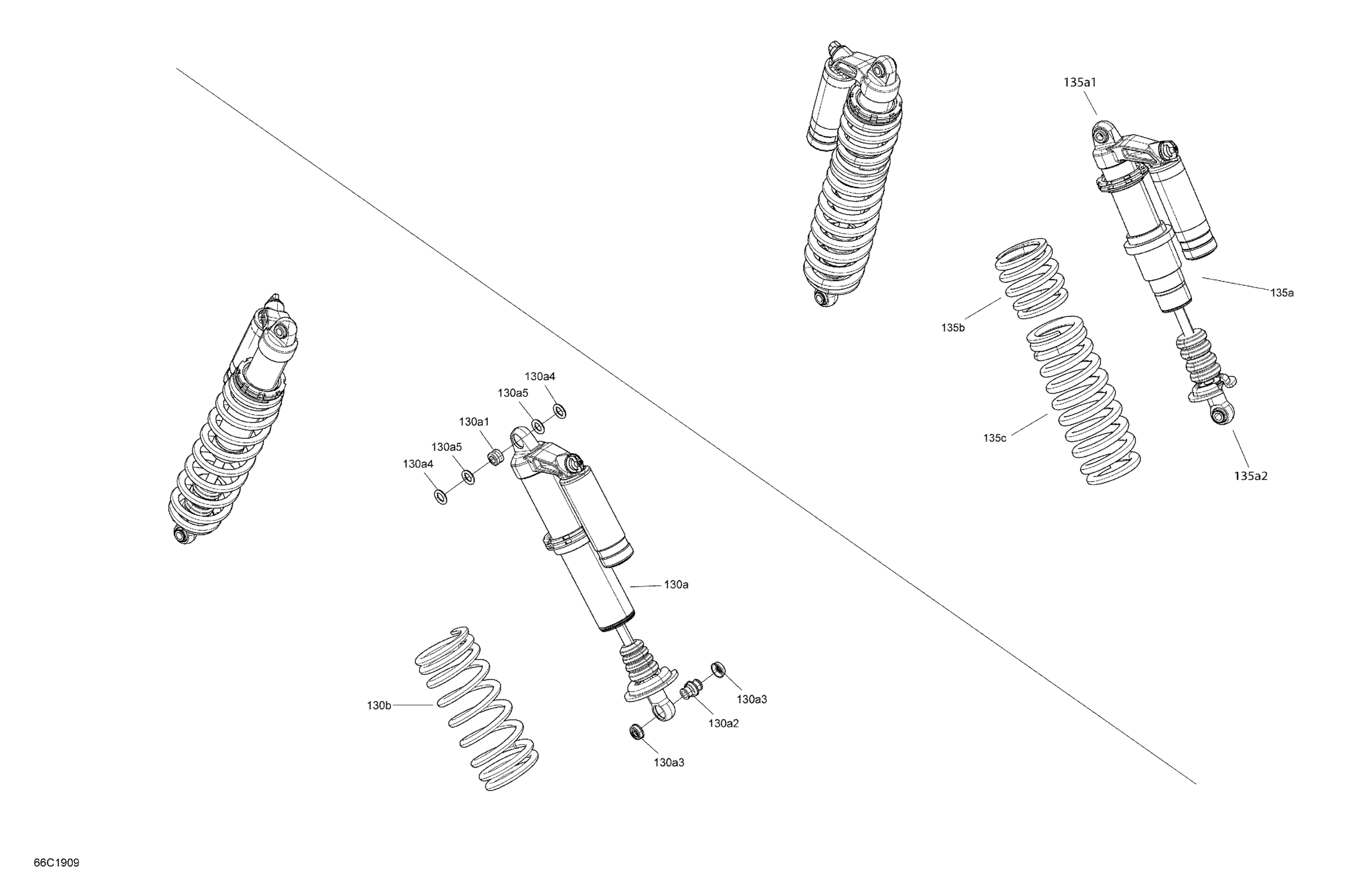

Can-Am Maverick Sport MAX 1000R - DPS - T1B Series, 2019 Shocks - Package DPS Diagram

Description

Price

130a

LH Front Shock

706203673

$644.75

130a

RH Front Shock

706203675

$624.60

130a1

Spherical Bearing

715900329

$79.07

130a2

Spherical Bearing

715900330

$79.07

130a3

Protector

715900331

$12.49

130a4

O-Ring Bushing

715900268

$12.49

130a5

Retaining Ring

715900252

$10.24

130b

Can-Am Red Front Spring

706203349

$97.73

135a

Rear Shock

706003503

$644.75

135a1

Spherical Bearing

715900329

$79.07

135a2

Spherical Bearing

715900330

$79.07

135a3

Protector

715900331

$12.49

135a4

O-Ring Bushing

715900268

$12.49

135a5

Retaining Ring

715900252

$10.24

135b

Can-Am Red, Rear Spring

706003470

$128.33

135c

Can-Am Red, Rear Spring

706003179

$93.25
