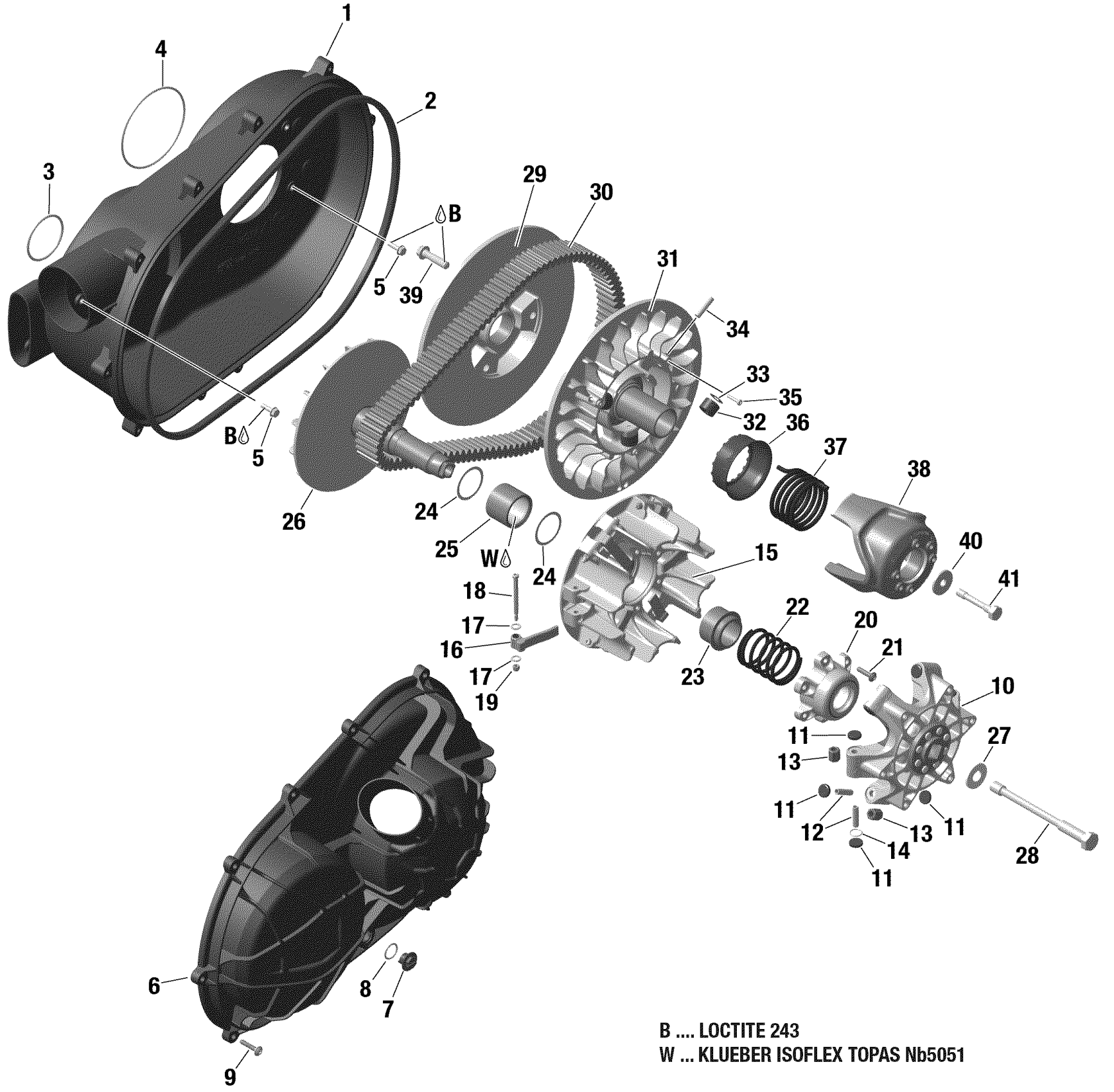

Can-Am Maverick Sport MAX 1000R - DPS - T1B Series, 2019 Transmission - 1010R - TR Diagram

#

Description
Price

1

CVT Air Guide

420212604

$212.28

2

Gasket

420450400

$32.28

3

O-Ring

420430408

$5.52

4

O-Ring

420450431

$5.52

5

Hex.Screw M6 X 20

420441311

$4.24

6

Variator Cover

420212503

$175.35

7

Cap

420441820

$11.06

8

O-Ring

420250052

$9.29

9

Torx Screw 6X30

420441575

$2.54

10

Governor Cup Ass'y

420280727

$179.97

11

Slider Shoe Set

420281296

$42.28

12

Roller Axle

417223257

$9.22

13

Roller Thrust

420229991

$18.43

14

O-Ring

420230456

$1.54

15

Outer Half Ass'y

420280608

$193.82

16>19

Centrifugal Lever Kit | Includes no. 18-21

420248661

$166.12

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Bearing Cover

420280616

$69.20

21

Torx Flange Screw M6 X 25

420841549

$1.97

22

Compression Spring

420638115

$14.75

23

Spring Retainer

420427211

$18.43

24

Washer

420427220

$4.60

25

Needle Roller Bearing With Sleeves

420832351

$46.12

26

Inner Half Ass'y

420280597

$318.43

27

Washer

420245690

$4.60

28

Hexagonal Screw M14X 165

420841161

$27.66

29

Sliding Pulley Ass'y

420280636

$332.28

30

Drive Belt

417300551

$170.99

31

Outer Half Pulley Ass'y

420280626

$332.28

32

Pulley Roller

417127016

$23.05

33

Thrust Washer

420227946

$2.31

34

Bearing Pin

420629192

$14.37

35

Torx Screw M4 X 20

420841531

$1.54

36

Swivel Abutment

417127116

$8.06

37

Compression Spring

420638124

$36.89

38

Cam

420280755

$133.82

39

Torx Flange Screw M10 X 40

420841711

$1.54

40

Collar Washer

420427243

$15.35

41

Hexagonal Screw M10X 61

420441990

$18.43
