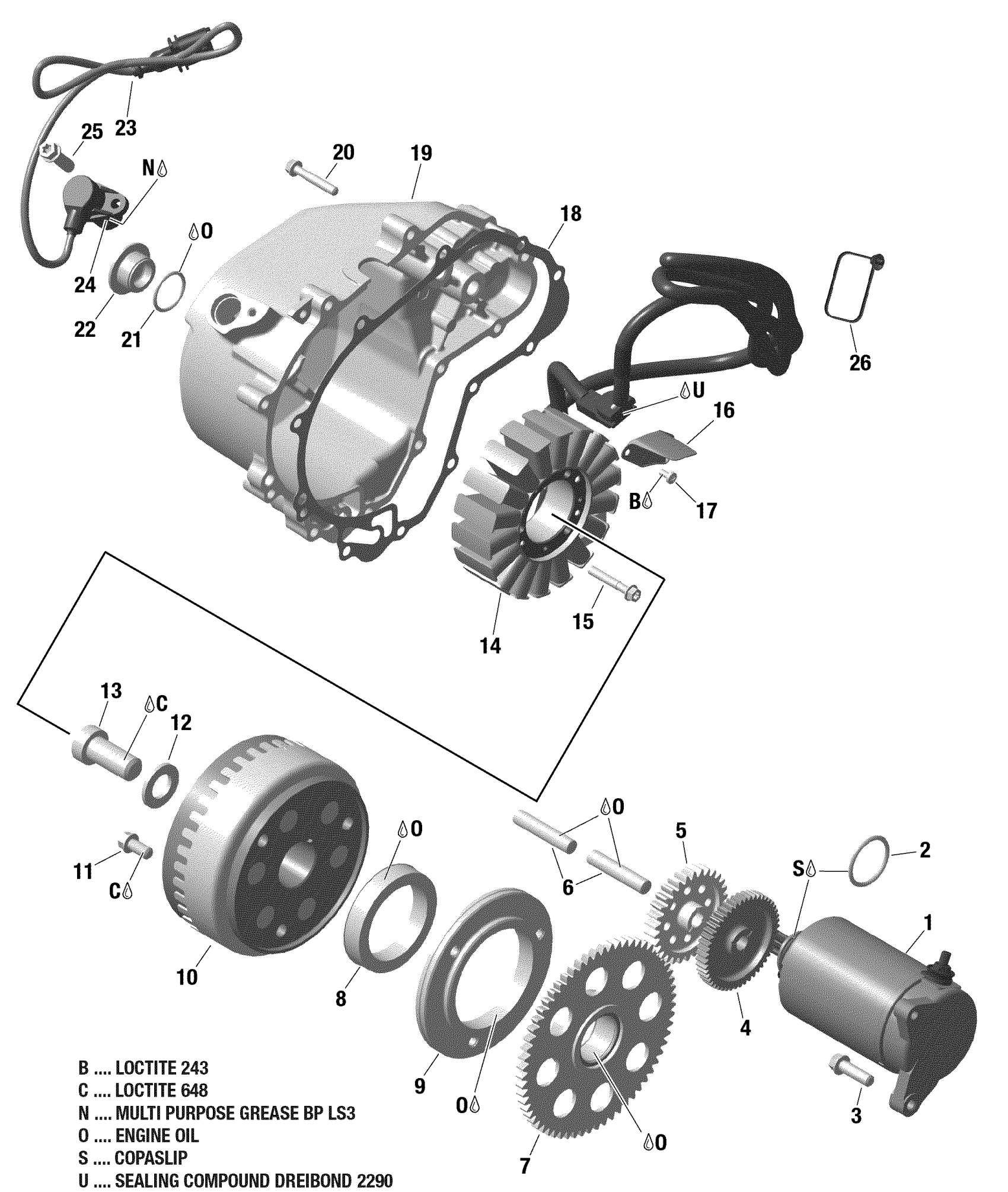

Can-Am Maverick Sport MAX 1000R - DPS - T1B Series, 2019 Magneto And Electric Starter - 1010R Diagram

Electric starter Ass'y

420684566

$252.69

O-Ring

420250140

$8.09

Torx Flange Screw M8 X 25

420440372

$3.88

Double Gear 11/49

420634743

$179.07

Starter Intermediate Gear, 30 Teeth

420634605

$76.84

Location Pin 10 M6x50

420229302

$3.01

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$173.85

Sprag Clutch

420659111

$235.04

Sparg Clutch Housing

420659263

$141.01

Flywheel | With DPS, European Community, T3

420685649

$541.01

Torx Flange Screw M8 X 16

420440854

$4.15

Shim

420627270

$3.88

Socket Head Screw M16 X 35

420241549

$8.09

Stator Plate, 650W | XT, XTP

420685632

$291.01

Torx Flange Screw M6 X 35

420440274

$0.96

Interior Cable Support Ass'y

420251889

$13.28

Phillips Screw M4 X 8

420240196

Unavailable

Gasket

420651203

$34.30

Ignition Cover

420212225

$178.33

Torx Flange Screw M6 X 35

420440274

$0.96

O-Ring

420430781

$0.82

Plug Screw M24X 1.5

420241633

$7.01

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

O-Ring

420431580

$14.10

Torx Flange Screw M6 X 16

420440164

$1.67

Tie Rap 212mm

420951346

$1.30
