Description

Price

10

Radiator

709200703

$335.79

20

Grommet

709200948

$7.09

30

Bushing

293900105

$6.07

35

Grommet

709000582

$4.25

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Fan Ass'y

709200665

$295.49

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

130

Radiator Inlet hose

709200793

$58.93

140

T-Fitting

509001313

$14.90

150

Pump Hose

709200672

$8.06

155

Pump Hose

709200672

$8.06

160

Radiator Outlet Hose

709200797

$32.81

165

Tubing 35 MM 1000MM Long

219704428

$8.57

170

T-Fitting

509000510

$11.18

180

Intermediate Outlet Hose

709200729

$35.79

185

Intermediate Inlet Hose

709200794

$38.78

220

Thermostat Housing

709200967

$96.24

230

Radiator Hose

709200795

$10.16

235

Coolant Tank Hose

709200736

$34.30

238

Oetiker Gear Clamp

293650165

$4.32

239

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

240

Thermostat Inlet Hose

709200796

$33.55

245

Heater Tubing

709200664

$13.58

250

Hose

709200742

$12.52

255

Heater Tubing

709200657

$13.58

260

Gear Clamp

509000162

$5.84

270

Gear Clamp

509000162

$5.84

290

Norma Spring Clamp

293650166

$4.15

300

Norma Spring Clamp

293650166

$4.15

310

Norma Spring Clamp

293650166

$4.15

330

Coolant Tank

709201323

$72.36

332

Bleeding Hose

709200799

$19.37

334

Crimp Clamp, 15.3-706R

293650047

$2.64

335

Bleeding Hose

709200717

$18.63

337a

Was 415129508 Bleeder Hose

219704416

$11.48

338

Oetiker Clamp

293650042

$1.40

339

Y-Fitting

293710059

$8.19

340

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Spring Clamp

414554800

$0.81

420

Support

709200721

$8.84

430

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

450

Support

709200746

$4.09

455

Screw PT Type K-50 X 16

250000959

$1.74

460

Bushing

709200761

$10.36

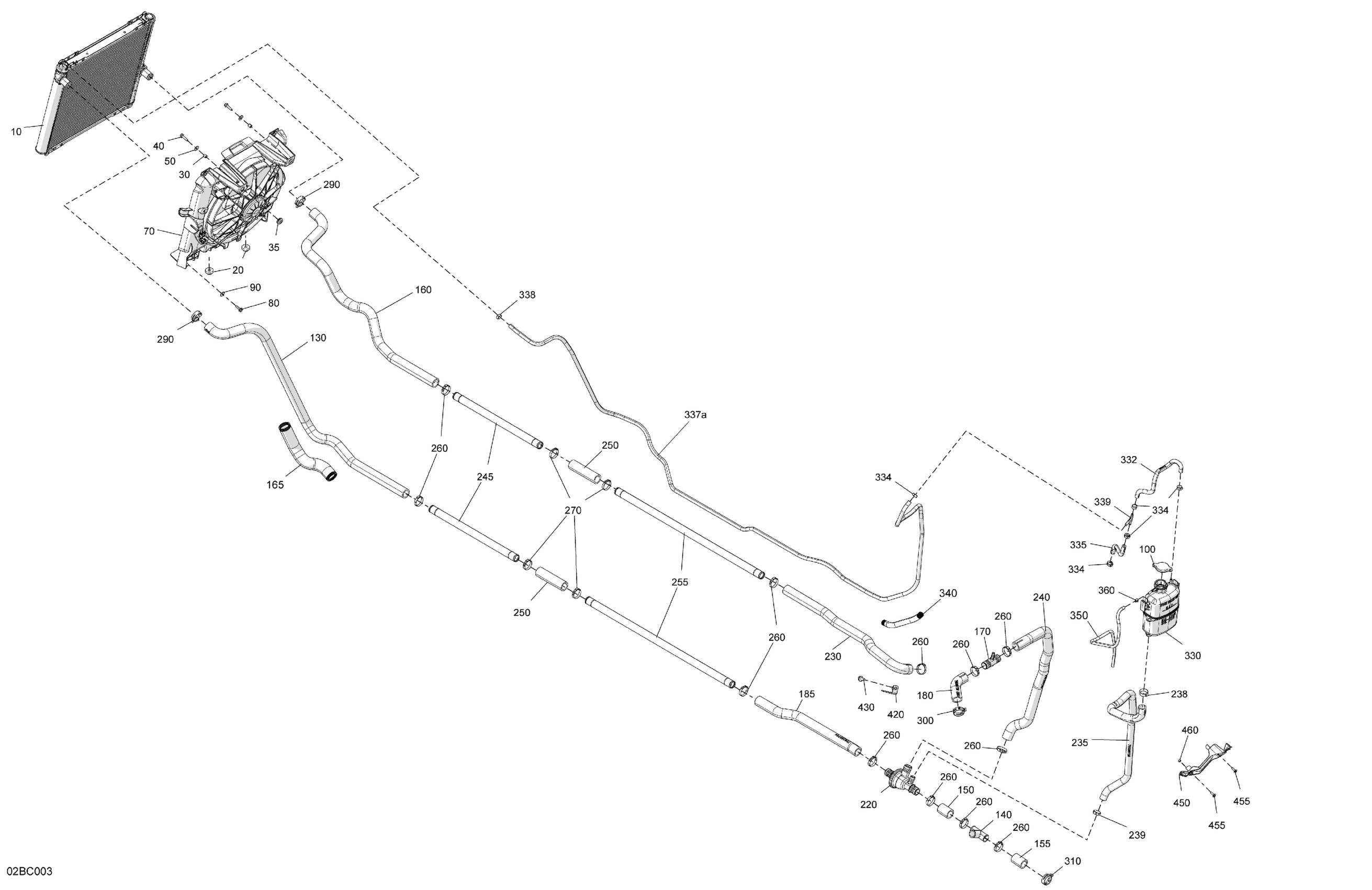

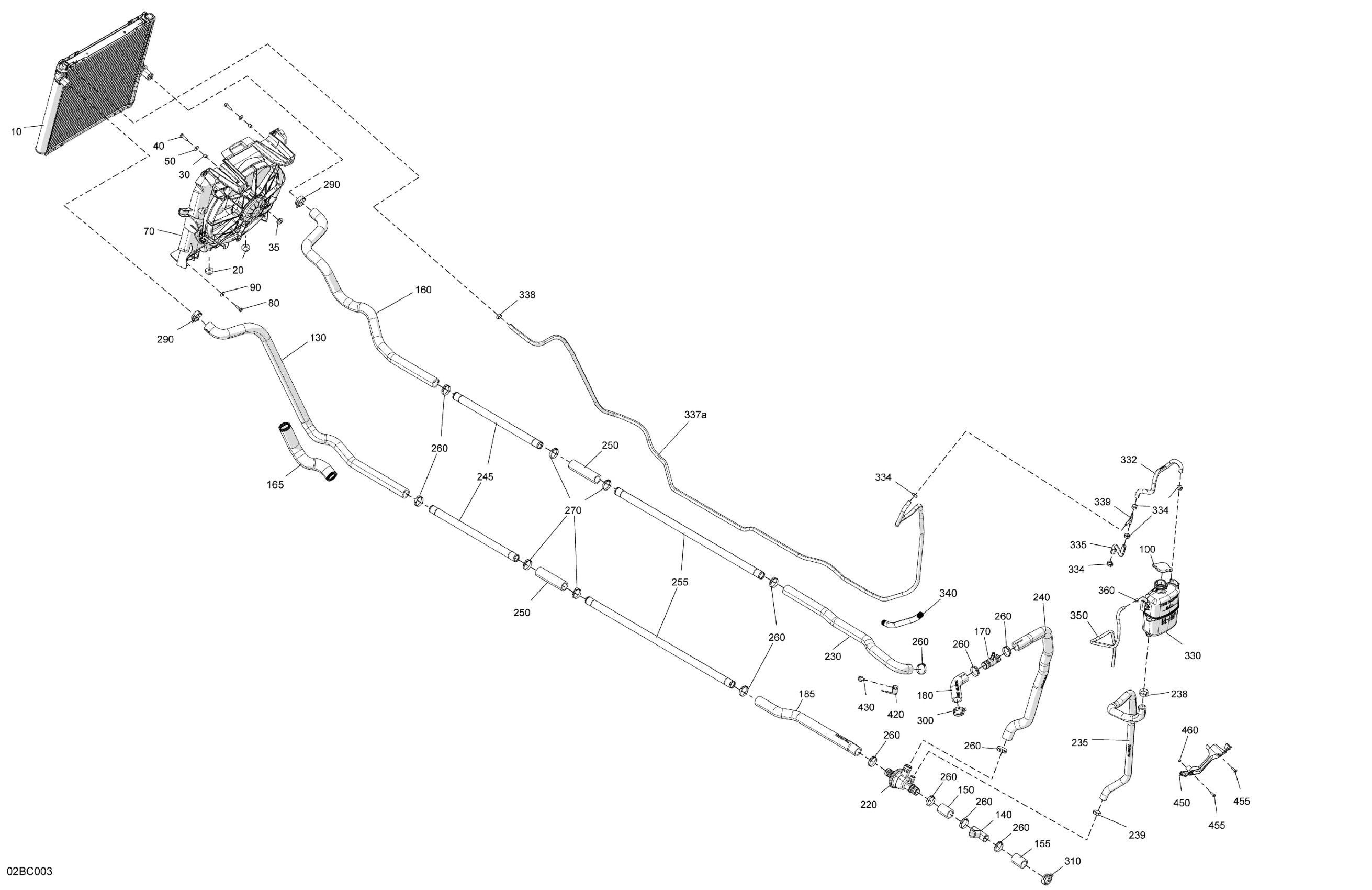

Can-Am Commander MAX 1000R EFI - DPS - 2023 Engine - Cooling Diagram

Radiator

Grommet

Bushing

Grommet

Hex. Flange Screw M6 X 25

Flat Washer 6 mm

Fan Ass'y

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Radiator Pressure Cap

Radiator Inlet hose

T-Fitting

Pump Hose

Pump Hose

Radiator Outlet Hose

Tubing 35 MM 1000MM Long

T-Fitting

Intermediate Outlet Hose

Intermediate Inlet Hose

Thermostat Housing

Radiator Hose

Coolant Tank Hose

Oetiker Gear Clamp

Oeticker Gear Clamp, 25.6-706R

Thermostat Inlet Hose

Heater Tubing

Hose

Heater Tubing

Gear Clamp

Gear Clamp

Norma Spring Clamp

Norma Spring Clamp

Norma Spring Clamp

Coolant Tank

Bleeding Hose

Crimp Clamp, 15.3-706R

Bleeding Hose

Was 415129508 Bleeder Hose

Oetiker Clamp

Y-Fitting

Tubing 16 Mm 1000Mm Long

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Spring Clamp

Support

Hex. Flange Screw M8 X 16, Scotch Grip

Support

Screw PT Type K-50 X 16

Bushing
