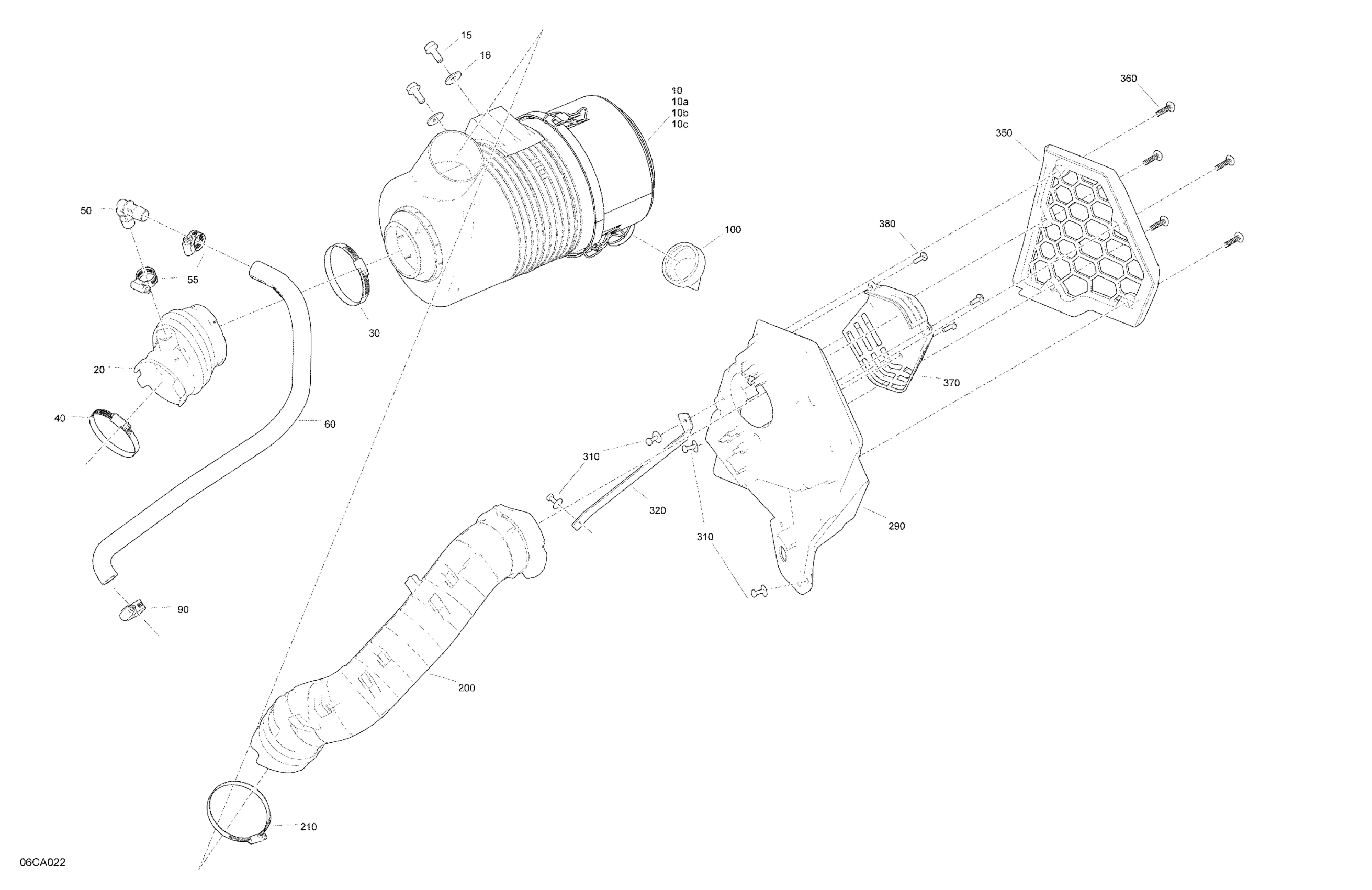

Can-Am Maverick Sport 1000R - DPS - 2021 Engine - Air Intake Diagram

Description

Price

Air Box | Includes 10 to 10b

707800720

$175.34

10a

Silencer-Air Cover | Includes 10a to 10a1

715900528

$84.30

10c

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$20.12

10b

Air Filter

715900422

$49.22

Hex. Flange Screw M8 X 20

207682044

$1.06

Flat Washer 8 mm

234082410

$1.27

Air Intake Adapter

707800754

$26.09

Norma Clamp

293650096

$3.00

Norma Clamp

293650091

$10.54

Elbow Fitting 90

293710155

$7.72

Tridon Gear Clamp

293650173

$2.82

Blow-By Hose

707800755

$26.09

Tridon Gear Clamp

293650173

$2.82

100

Duct Bill Valve

715003114

$12.09

200

Inlet Hose

707800756

$43.25

210

Norma Clamp

293650096

$3.00

290

Air Intake Box

707800865

$33.55

310

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

320

Support

707800784

$4.78

350

Air Intake Grid

707800751

$43.25

360

Hex. Screw Pt K60 X 25

250000980

$2.00

370

Baffle

707800762

$17.13

380

Torx Screw K50 X 16

250000720

$1.60
