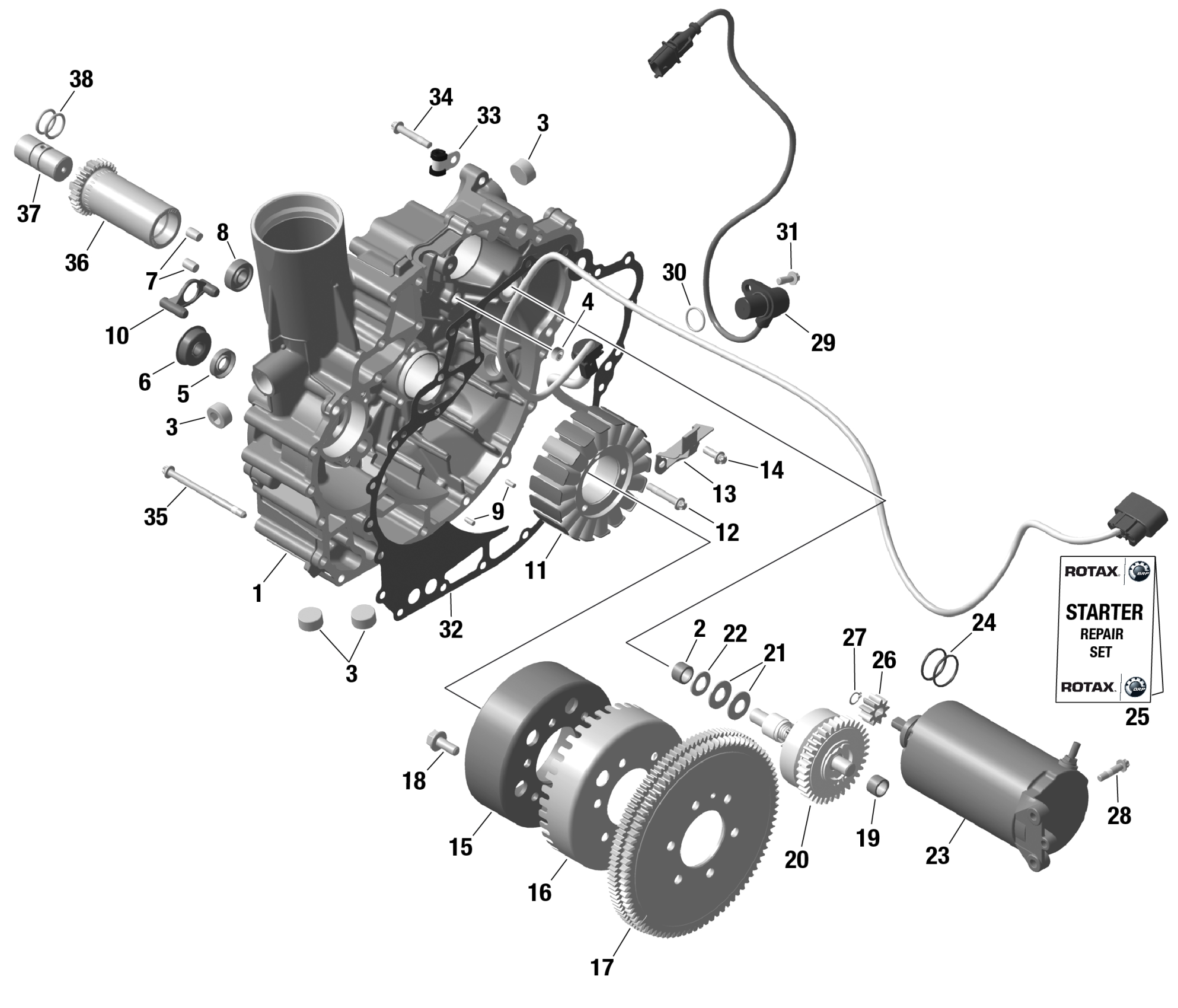

Sea-doo GTX 230, 2023 ROTAX - Magneto and Electric Starter With IDF Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-9

420912421

$643.25

2

Needle Bushing

420232482

$15.57

3

Plug Screw M20 X 1.5

420641317

$10.58

4

Plug Screw M10 X 1

420641323

$11.48

5

Oil Seal

420650315

$9.62

6

Rotary Seal

420650371

$35.72

7

Center Pin 8 X 12

420632010

$3.07

8

Double Sealed Bearing

420232103

$12.14

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Stator Plate

420889728

$278.82

12

Torx Flange Screw M6 X 35

420641258

$2.78

13

Retaining Plate

420926300

$12.97

14

Torx Flange Screw M6 X 16

420641048

$2.46

15

Magneto Flywheel

420296900

$459.52

16

Trigger Wheel

420966851

$14.92

17

Starter Double Gear 87/86T

420834871

$250.22

18

Hex Screw

295501162

$11.47

19

Not Available As Spare Parts

XXX

Unavailable

20

Starter Drive

420888041

$214.47

21

Spring Washer

420238300

$6.11

22

Thrust Washer

420827280

$6.88

23

Electric Starter Ass'y | Includes no. 20-21

420888995

$232.02

24

O-Ring

420631310

$3.61

25

Carbon Brush Set

420881340

$52.62

26

Starter Gear, 9 Teeth

420834522

$59.77

27

Retaining Ring

420845601

$3.73

28

Torx Flange Screw M6 X 25

420641238

$2.68

29

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

30

O-Ring

420431580

$12.29

31

Torx Flange Screw M6 X 16

420641048

$2.46

32

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

33

Clamp

420853414

$14.92

34

Torx Flange Screw M6 X 35

420641258

$2.78

35

Torx Flange Screw M6 X 85

420641228

$6.11

36

Input Shaft

420220934

$90.97

37

Spacer

420244034

$16.87

38

O-Ring

420250056

$0.62
