07- Body - Hull

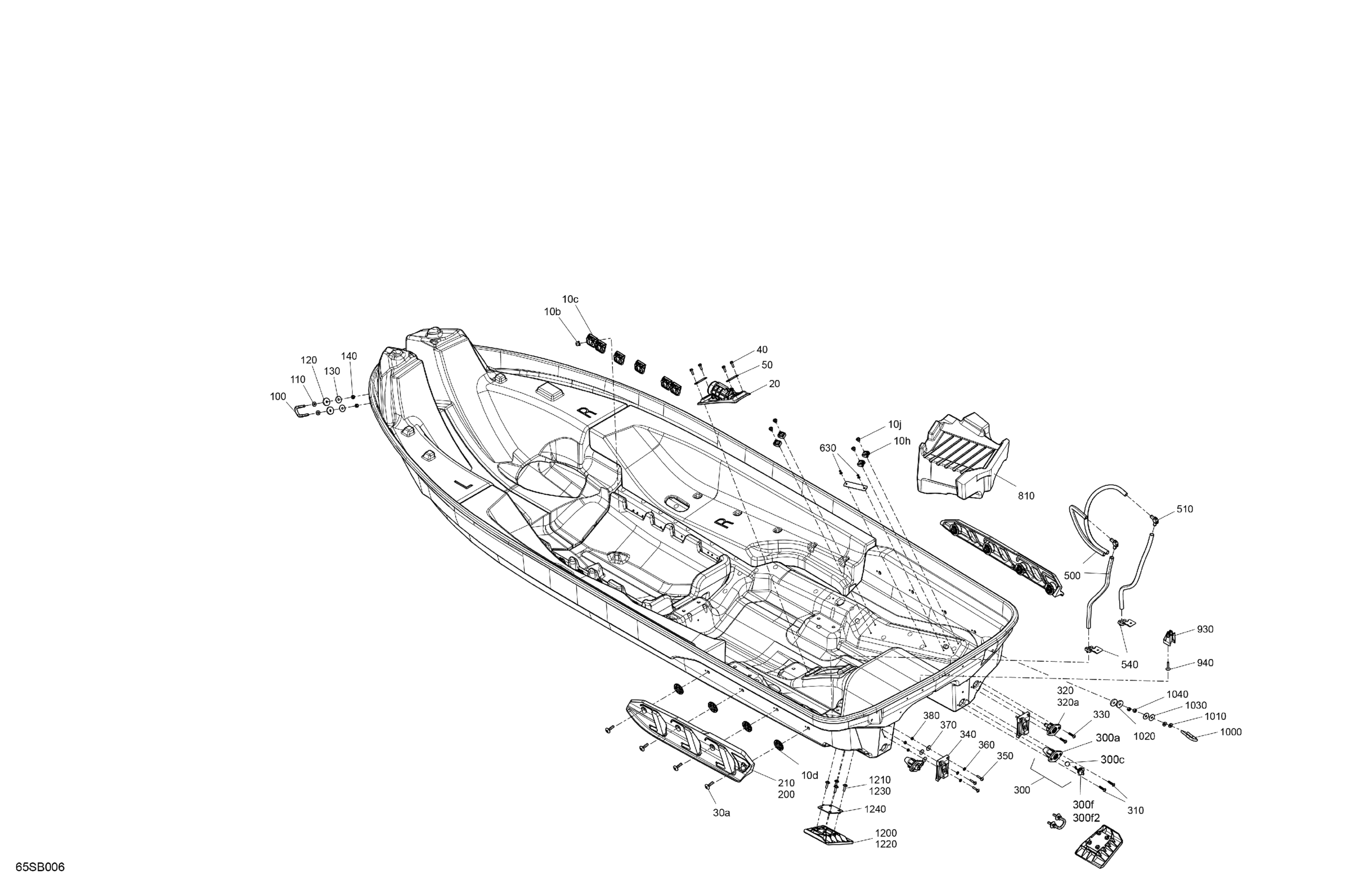

Sea-doo 002 - GTX 230, 2022 07- Body - Hull Diagram
#
10b
Rivet | Model-T3
293150067
$2.89
10c
Strap Retaining
270000933
$6.99
10d
Housing Nut M8 | Includes 400a1m to 400a1m1
293450387
$7.09
10d1
Hex. Flange Nut M8
233181600
$1.05
10h
Strap Anchor
270000854
$7.76
10j
Pop Rivet 3/16
293150186
$2.09
20
Hull Insert
293450384
$36.99
30a
Torx-Head Screw M8 X 35 This part replaces 250000572.
250000994
$3.91
40
Hex. Flange Screw M6.81 x 20
243162060
$3.72
50
Reinforcement
291004907
$2.89
100
U-Clamp
292000933
$59.49
110
Flat Washer M8.5 x 18
293050001
$3.07
120
Rubber Washer
293830037
$2.68
130
Flat Washer 8 mm, Stainless
250200175
$3.06
140
Hex. Elastic Nut M8 Brass
232581200
$2.22
200
RH Sponson
292001953
$54.99
210
LH Sponson
292001954
$65.99
300
Through Hull Fitting Ass'y | Includes 300 to 300f2
292002766
$15.49
300a
Through Hull Fitting
292002765
$7.79
300c
Floating Ball
293830080
$7.19
300f
Plug Ass'y | Includes 300f to 300f2
292002022
$14.49
300f2
O-Ring
293300067
$1.04
310
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
320
Through Hull Fitting Ass'y | Includes 320 to 320a
292002768
$14.49
320a
Through Hull Fitting
292002765
$7.79
330
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
340
Ladder Attachment
292002113
$8.49
350
Truss Cone Torx Screw M6 X 30
250000924
$7.51
360
Stainless Flat Washer M6
234061600
$0.33
370
Flat Washer M6.6 X 22
250200022
$2.72
380
Elastic Stop Nut M6, Brass
232561200
$4.23
500
Polyurethane Hose 1000Mm Long | Not Shown
219704393
$7.20
510
Fitting Elbow 90°
293710152
$18.49
540
Plate
292002571
$15.49
630
Avdel Rivet 3/16"
293150037
$0.56
810
Cooler Float
292002011
$36.99
930
Strap Anchor
270000988
$10.28
940
Hexagonal Cap Screw M6 X35
250000399
$4.44
1000
U-Clamp
292000933
$59.49
1010
Flat Washer M8.5 x 18
293050001
$3.07
1020
Rubber Washer
293830037
$2.68
1030
Flat Washer 8 mm, Stainless
250200175
$3.06
1040
Hex. Elastic Nut M8 Brass
232581200
$2.22
1200
LH Trim Tab
292002102
$18.49
1210
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1220
RH Trim Tab
292002103
$18.49
1230
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1240
Gasket
277002171
$4.33
