02- Engine - System

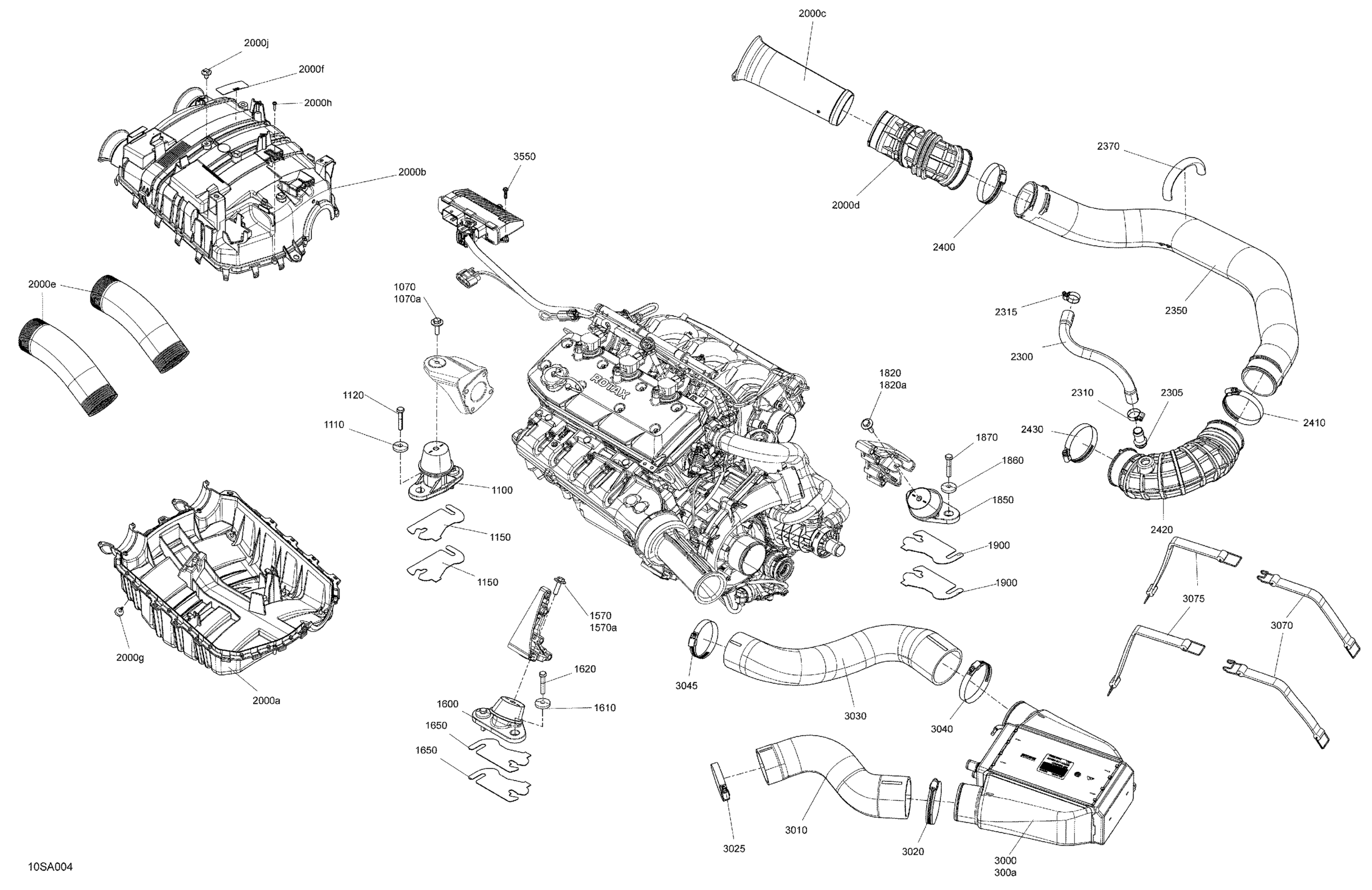

Sea-doo 002 - GTX 230, 2021 02- Engine - System Diagram
#
1070
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1070a
Hexagonal Screw M8 X 30
250000888
$3.17
1100
Engine Support Ass'y
270001096
$97.99
1110
Cone Washer
250200018
$5.61
1120
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
1150
Shim 1.3 mm
270000762
$12.99
1570
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1570a
Hexagonal Screw M8 X 30
250000888
$3.17
1600
Engine Support Ass'y
270001081
$109.99
1610
Cone Washer
250200018
$5.61
1620
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
1650
Shim 1.3 mm
270000762
$12.99
1820
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1820a
Hexagonal Screw M8 X 30
250000888
$3.17
1850
Engine Support Ass'y
270001081
$109.99
1860
Cone Washer
250200018
$5.61
1870
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
1900
Shim 1.3 mm
270000762
$12.99
2000a
Airbox Base
273000342
$48.99
2000b
Intake Silencer Cover
273000394
$72.99
2000c
Intake Hose
273000359
$48.99
2000d
Hose Connector
273000375
$73.99
2000e
Air Silencer Hose
273000290
$22.49
2000f
Air Silencer Notice Decal
219903177
Unavailable
2000g
Rubber Stopper
708000759
$4.19
2000h
Flange Torx Screw K40 X 16
250000287
$2.11
2000j
Mount Dart
293730040
$1.04
2300
Formed Hose
270000950
$10.99
2305
Breather Valve
273000234
$14.49
2310
Tridon Gear Clamp
293650051
$4.19
2315
Tridon Gear Clamp
293650051
$4.19
2350
Central Intake Duct
273000376
$47.99
2370
Polyurethane Hose 1000Mm Long | Not Shown
219704393
$7.20
2400
Tridon Clamp
293650179
$11.49
2410
Tridon Clamp
293650179
$11.49
2420
Molded Hose
273000417
$31.99
2430
Tridon Clamp
293650179
$11.49
3000
Intercooler
276000406
$519.49
3000a
Anode Zinc
271001942
$18.76
3010
Formed Hose
273000418
$83.99
3020
Tridon Gear Clamp
293650244
$9.29
3025
Tridon Clamp
293650179
$11.49
3030
Oultet Hose
273000419
$85.99
3040
Tridon Gear Clamp
293650244
$9.29
3045
Tridon Clamp
293650179
$11.49
3070
Fuel Tank Strap
293850094
$22.49
3075
Fuel Tank Strap
293850095
$19.99
3550
Hex. Flange Screw K50 X 20
241152060
$1.99
