01- Rotax - Magneto And Electric Starter With iDF

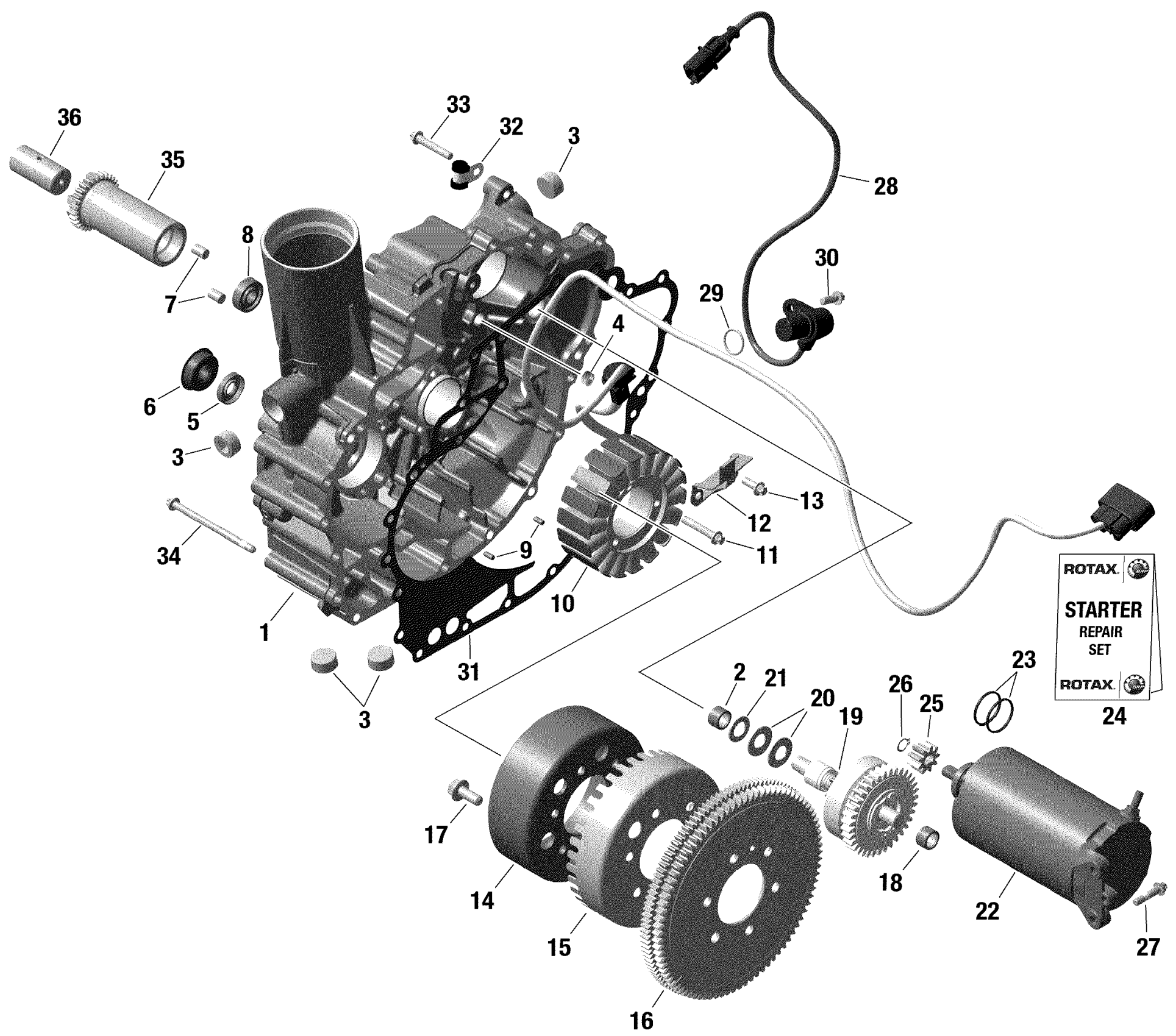

Sea-doo 002 - GTX 230, 2021 01- Rotax - Magneto And Electric Starter With iDF Diagram
#
Description
Price
1
Timing/Drive Cover Ass'y | Includes no. 1-9
420912421
$698.99
2
Needle Bushing
420232482
$20.99
3
Plug Screw M20 X 1.5
420641317
$14.22
4
Plug Screw M10 X 1
420641323
$14.28
5
Oil Seal
420650315
$11.65
6
Rotary Seal
420650371
$43.49
7
Center Pin 8 X 12
420632010
$4.01
8
Ball Bearing
420232100
$20.99
9
Needle Pin
420929070
$1.90
10
Stator Plate
420889728
$319.49
11
Torx Flange Screw M6 X 35
420641258
$3.38
12
Retaining Plate
420926300
$16.37
13
Torx Flange Screw M6 X 16
420641048
$2.96
14
Magneto Flywheel
420296900
$461.99
15
Trigger Wheel
420966851
$18.49
16
Starter Double Gear 87/86T
420834871
$319.99
17
Hex Screw
295501162
$15.28
18
Stop Sleeve
420660280
$14.75
19
Starter Drive
420888041
$274.99
20
Spring Washer
420238300
$7.41
21
Thrust Washer
420827280
$8.47
22
Electric Starter Ass'y | Includes no. 20-21
420888995
$265.99
23
O-Ring
420631310
$4.44
24
Carbon Brush Set
420881340
$67.99
25
Starter Gear, 9 Teeth
420834522
$74.99
26
Retaining Ring
420845601
$4.55
27
Torx Flange Screw M6 X 25
420641238
$3.27
28
Crankshaft Position Sensor Ass'y | Includes 10 to 11
420966570
$109.99
29
O-Ring
420431580
$14.83
30
Torx Flange Screw M6 X 16
420641048
$2.96
31
Timing Drive Cover Gasket (1603 NA) | Included in gasket kit
420931130
$23.49
32
Clamp
420853414
$18.49
33
Torx Flange Screw M6 X 35
420641258
$3.38
34
Torx Flange Screw M6 X 85
420641228
$7.41
35
Input Shaft | 9 dog design
420820460
$77.49
36
Spacer
420244037
$13.75
