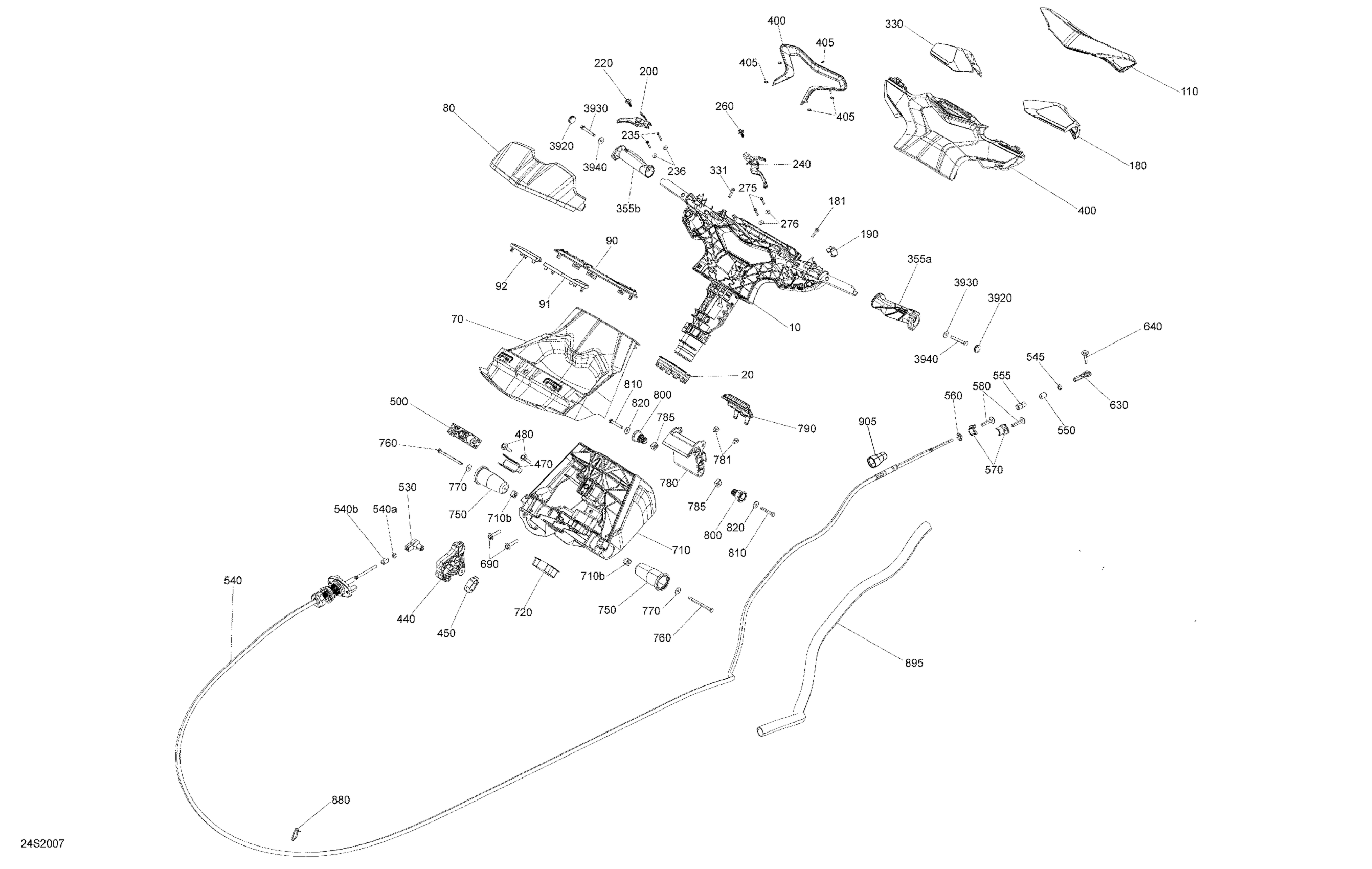

Sea-doo GTX 230, 2020 Steering Diagram

Steering Column

277002134

$163.12

Wear Ring

277001874

$9.74

Cluster Support | Built Before Oct 2020

277001980

$48.07

Deep Black, Cluster Support Cover | Built Before Oct 2020

277001981

$20.77

Speed Indicator Bezel | Built Before Oct 2020

705011286

$6.25

Hyper Silver, Trim Gauge LH | Model Liquid Metal

277002076

$49.97

Deep Black, LH Trim Gauge

705012349

$4.34

Hyper Silver, Trim Gauge RH | Model Liquid Metal

277002077

$49.97

Deep Black, RH Trim Gauge

705012351

$4.34

Stone Grey, Handlebar Trim

277002240

$12.47

Swift Silver, Steering Pad | Included 110 to 110a

277002156

$47.73

LH Cover

277002233

$13.62

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Red Button Switch

277002327

$7.46

Hand Lever Accelerator

277002138

$30.52

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

Hex. Flange Screw K40 X 25

241142560

$2.17

Flat Washer 4 mm, Stainless

234042600

$0.92

Reverse Handle

277001945

$34.42

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

Hex. Flange Screw K40 X 25

241142560

$2.17

Flat Washer 4 mm, Stainless

234042600

$0.92

RH Housing Cover | Model VIP High End Cluster

277001984

$12.84

RH Cover

277002235

$12.60

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Deep Black, LH Handle Grip

277001958

$15.57

Deep Black, RH Handle Grip

277001946

$15.57

Steering Cover

277001985

$53.27

Limited Trim- Chrome | Model Liquid Metal

277002061

$50.72

Push Nut

250100206

$0.83

Steering Arm Kit

295501183

$7.01

Not Available As Spare Part - Friction Washer

Unavailable

Spacer

277001654

$11.40

Hexagonal Cap Screw M6 X35

250000399

$3.61

C Clamp

277002085

$7.19

End Fitting Cable

277002119

$16.87

Steering Cable | Includes 540 to 540b

277002448

$223.57

Hex. Nut 1/4"-28

211100056

$0.56

Wiper Rod

277001582

$8.83

Hex. Nut 1/4"-28

211100056

$0.56

Wiper Rod

277001582

$8.83

End Piece

277001583

$11.14

Rubber Washer

293830063

$1.51

Ring Halves

277001856

$9.85

Hexagonal Cap Screw M6 X35

250000399

$3.61

Ball Joint

277000775

$40.27

Hex Sems Screw M6X35

250000970

$1.74

Hexagonal Cap Screw M6 X35

250000399

$3.61

Steering Support Ass'y | Built Before Oct 2020

277001993

$103.70

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

Wear Ring

277002318

$12.43

Steering Support Pivot

277001605

$14.92

Hex Screw M6 X 80

207168060

$6.36

Flat Washer M6, Stainless

234062600

$0.64

Adjustment Handle

277001996

$7.05

Rubber Bumper

293830005

$5.33

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

Lock

277002010

$5.04

Pivot

277001652

$12.43

Hex. Screw M6 X 40

207064060

$1.40

Flat Washer M6, Stainless

234062600

$0.64

Tie-Rap 180 mm

414115200

$0.09

Corrugated Sheath 22MM - 1250MM

276000520

$21.42

Rope Guide

277002150

$0.75

Black, Cap

277000203

$7.48

Flat Washer M6, Stainless

234062600

$0.64

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.51
