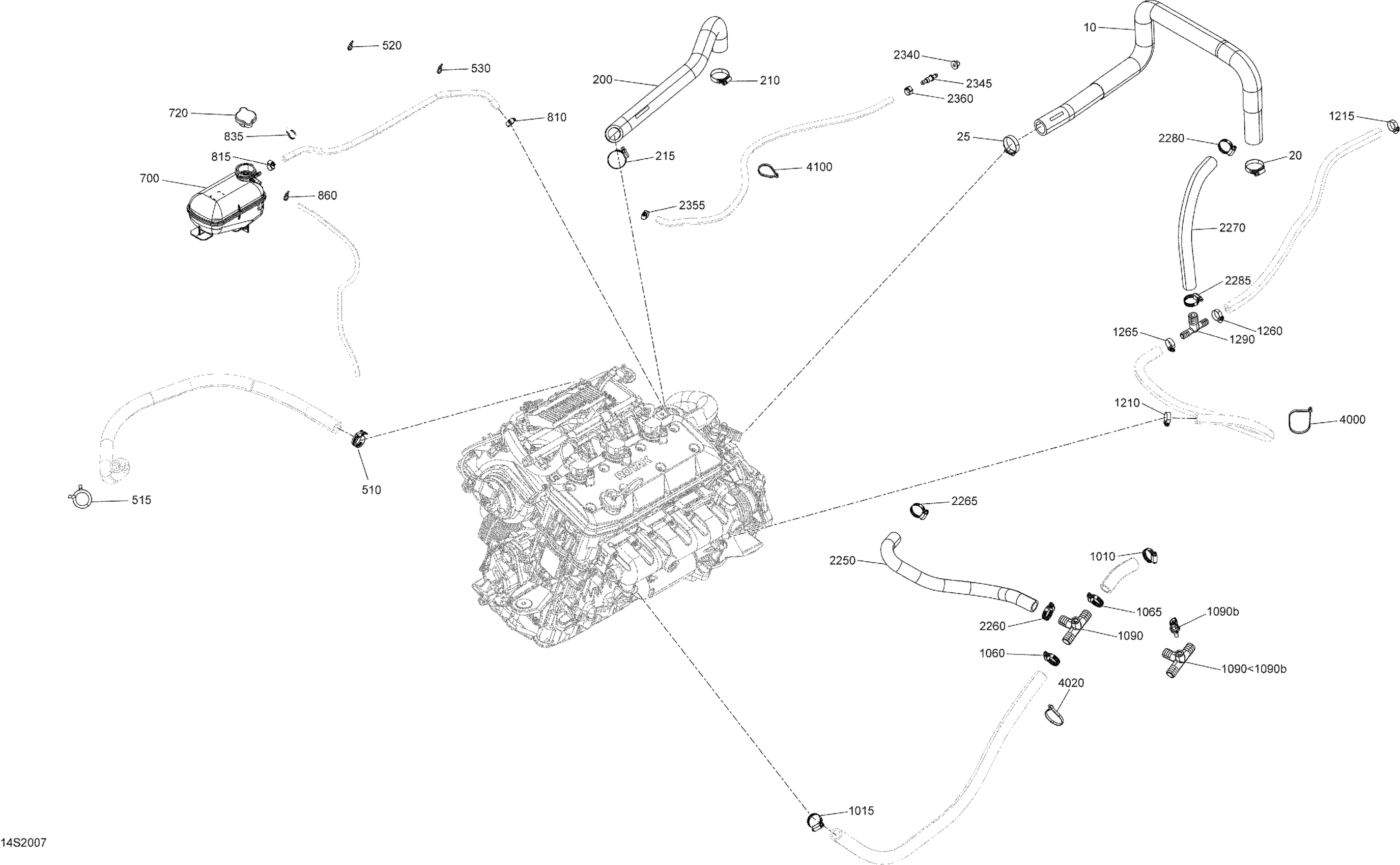

Sea-doo GTX 230, 2020 Cooling System Diagram

#

Description
Price

10

Hose Riding Plate LH

276000462

$66.49

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

200

Hose Riding Plate RH

276000487

$52.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

520

Tie Wrap 94 mm | 4X4

293750001

$1.03

530

Tie Wrap 94 mm | 4X4

293750001

$1.03

700

Coolant Tank

276000419

$119.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

810

Tridon Gear Clamp

293650170

$1.99

815

Tridon Gear Clamp

293650170

$1.99

835

Tie-Rap 180 mm

414115200

$0.11

860

Tie Wrap 94 mm | 4X4

293750001

$1.03

1010

Tridon Gear Clamp

293650051

$4.19

1015

Tridon Gear Clamp

293650051

$4.19

1060

Tridon Gear Clamp

293650051

$4.19

1065

Tridon Gear Clamp

293650051

$4.19

1090

T-Fitting

293710131

$15.87

1090<1090b

Temperature Sensor Fitting Ass'y | Includes 1090 to 1090b

293710164

$66.99

1090b

Temperature Sensor

278002895

$39.99

1210

Tridon Gear Clamp

293650172

$3.09

1215

Tridon Gear Clamp

293650172

$3.09

1260

Tridon Gear Clamp

293650172

$3.09

1265

Tridon Gear Clamp

293650172

$3.09

1290

T-Fitting

293710132

$12.65

2250

Formed Hose

276000422

$22.49

2260

Tridon Gear Clamp

293650051

$4.19

2265

Tridon Gear Clamp

293650051

$4.19

2270

Formed Hose | Includes 2270 to 2270a This part replaces 276000461.

276000423

$32.99

2280

Tridon Gear Clamp

293650051

$4.19

2285

Tridon Gear Clamp

293650051

$4.19

2340

Grommet

293720029

$1.59

2345

Male Connector

414518500

$4.23

2355

Tridon Gear Clamp

293650170

$1.99

2360

Oetiker Gear Clamp

293650025

$3.09

4000

Tie Wrap 368 mm

293750008

$1.04

4020

Tie-Rap 180 mm

414115200

$0.11

4100

Tie-Rap 180 mm

414115200

$0.11
