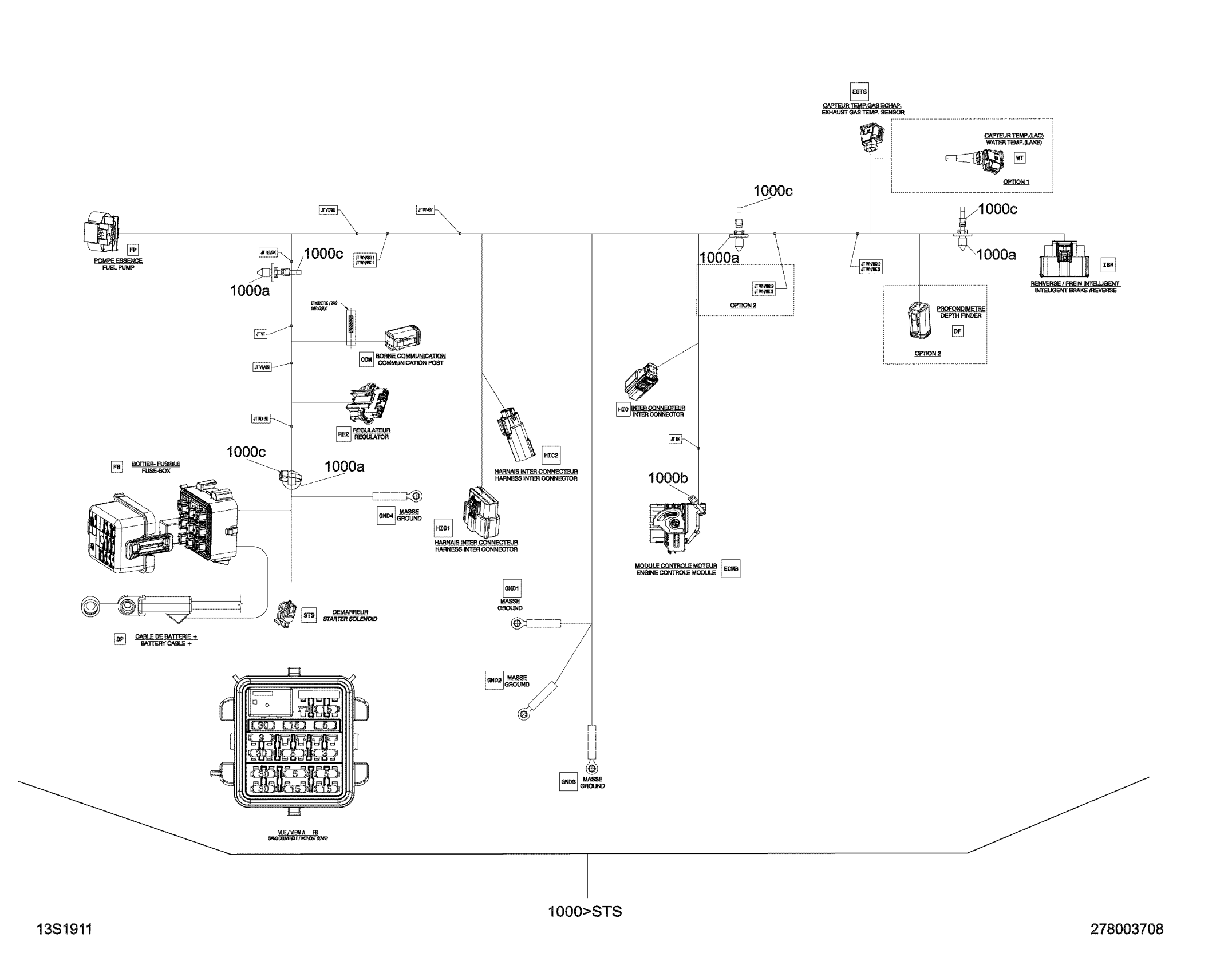

Sea-doo GTX 230, 2019 Main Harness - 278003703 Diagram

#

Description
Price

1000>STS

Wiring Harness Main | Package LTD

278003708

$285.79

1000a

Mount Dart

293730040

$0.99

1000b

Tie-Rap

710002712

$0.49

1000c

Tie-Rap

710002714

$2.88

BP

Battery Cable

278003716

$66.39

COM

Female Terminal

710001727

$2.93

COM

Lock

710002705

$4.15

COM

Plug

710005437

$2.99

COM

Female Terminal

710005438

$3.88

COVER

Fuse Cover

278003879

$4.22

DF

Lock

710002705

$4.15

DF

Female Housing 6 Circuits

710002706

$18.63

DF

Female Housing 6 Circuits

710002706

$18.63

DF

Female Terminal

710005439

$4.15

ECMB

Lock

710001222

$1.93

ECMB

Female Terminal Housing, 48 Circuits

710001588

$45.49

ECMB

Female Terminal

710001589

$2.06

ECMB

Female Terminal

710001590

$1.94

ECMB

Cover, 48 positions

710001591

$11.54

ECMB

Plug

710001592

$2.06

ECMB

Plug

710001593

$2.06

EGTS

Seal

415128501

$1.73

EGTS

Little Fuse, 3 AMP

710001008

$3.42

EGTS

Housing

710001136

$12.01

FB

Wire Seal

278000218

$4.00

FB

Open Barrel

278000992

$2.06

FB

Female Terminal

278002578

$0.99

FB

Relay 30 Amp

278003828

$11.22

FB

Seal Plug

278002880

$6.24

FB

Fuse Base Ass'y

278003448

$30.57

FB

Female Terminal

515177177

$4.96

FB

Wire Seal

710000048

$5.85

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Seal

710000881

$16.39

FB

Female Terminal

710000890

$4.28

FB

Female Terminal

710000918

$5.85

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Wire Seal

278002186

$5.18

FP

Female Terminal

278002187

$5.79

FP

Female Terminal

710001164

$6.79

GND1

Open Barrel

278000992

$2.06

GND2

Open Barrel Terminal

278001392

$4.00

GND3

Open Barrel Terminal

278001392

$4.00

GND4

Wire Seal

278001065

$5.85

HIC

Female Terminal | Not Shown

278002453

$5.18

HIC

Female Terminal | Not Shown

278002642

$3.42

HIC

Battery Cable

278003716

$66.39

HIC1

Female Terminal | Not Shown

278002453

$5.18

HIC1

Female Terminal | Not Shown

278002642

$3.42

HIC1

Female Housing 20 Circuits

278002858

$22.98

HIC2

Male Terminal

278002454

$5.18

HIC2

Male Housing, 6 Circuits

278002906

$12.49

IBR

Female Terminal | Not Shown

278002453

$5.18

IBR

Sealing Cap

278002860

$1.63

IBR

Seal Plug

278002880

$6.24

IBR

Female Terminal

278003045

$2.69

IBR

Seal

278003046

$0.85

IBR

Female Housing ,16 Circuits

278003484

$16.39

RE2

Female Housing, 4 circuits

278003535

$24.60

RE2

Female Terminal

710000877

$7.25

RE2

Female Housing, 3 Circuits

710000879

$24.60

STS

Female Housing, 2 Circuits

515177192

$7.25

STS

Female Terminal

710001137

$4.28

STS

Wire Seal

710001163

$5.85

WT

Seal

415128501

$1.73

WT

Housing

710001136

$12.01

WT

Female Terminal

710001137

$4.28

DF

Female Terminal

710005439

$4.15
