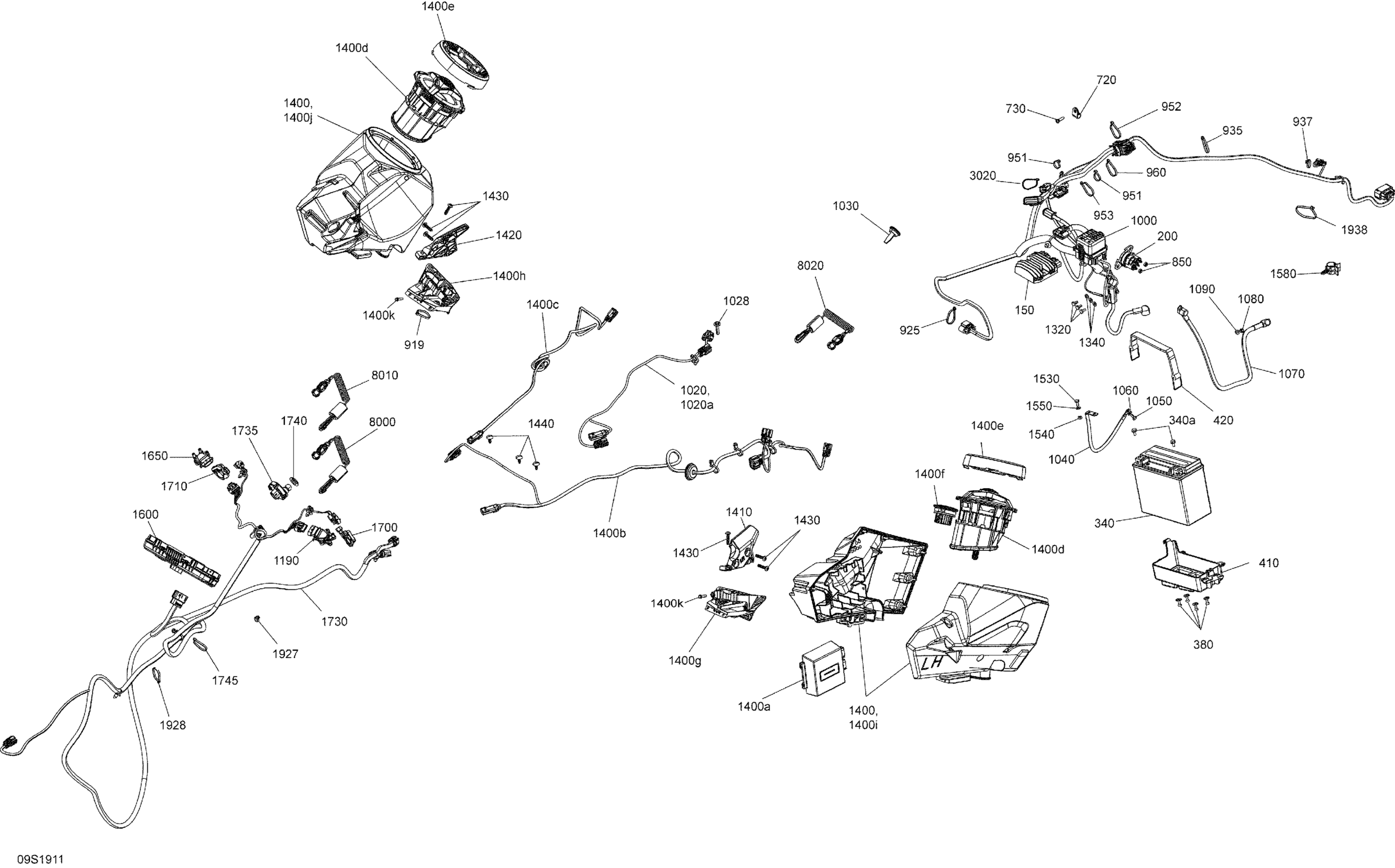

Sea-doo GTX 230, 2019 Electrical System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

200

Starter Relay

278003012

$42.49

340

Battery 12 Volt 18AH

296000449

$92.28

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$7.29

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

720

Hose Clamp

293650257

$5.99

730

Flange Torx Screw K40 X 16

250000287

$2.11

850

Elastic Stop Nut M6, Brass

232561200

$4.23

919

Tie-Rap 180 mm

414115200

$0.11

925

Tie-Rap 180 mm

414115200

$0.11

927

Tie-Rap 180 mm

414115200

$0.11

928

Tie-Rap 180 mm

414115200

$0.11

935

Tie Rap, 533 mm

293750047

$2.09

937

Tie Wrap 142 mm

293750002

$1.25

938

Tie Wrap 368 mm

293750008

$1.04

951

Tie-Rap 180 mm

414115200

$0.11

952

Tie-Rap 180 mm

414115200

$0.11

953

Tie-Rap 180 mm

414115200

$0.11

960

Tie-Rap 180 mm

414115200

$0.11

1000

Wiring Harness Main | Package STD

278003707

$319.99

1000

Wiring Harness Main | Package LTD

278003708

$319.99

1020>1020a

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1020a

Connector USB wih Cable

710005857

$41.49

1028

Hexagonal Cap Screw M6 X35

250000399

$4.44

1030

USB Plug

269502324

$3.09

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1400a

Amplifier

278003464

$465.99

1400b

Amplifier Harness

278003497

$83.99

1400c

Speaker Harness

278003462

$22.99

1400d

Speaker

278003463

$153.49

1400e

Speaker Grille

278003466

$16.34

1400f

Audio Control

278003465

$381.49

1400g

Deep Black, LH Protective Grille

278003616

$11.49

1400h

Deep Black, RH Protective Grille

278003617

$11.49

1400i

Not Available As Spare Part - Friction Washer

Unavailable

1400j

Not Available As Spare Part - Friction Washer

Unavailable

1400k

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1410

LH Bracket

278003489

$5.79

1420

RH Bracket

278003518

$5.79

1430

Screw Torx M6.81 X 30

250001007

$2.54

1440

Black, Dart

293730011

$0.99

1440

Black, Dart

293730011

$0.99

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1580

Retainer

278003564

$8.39

1600

Full Size Multifunction Mono Gauge

278003432

$819.99

1650

Throttle Position Sensor

278002283

$119.99

1700

LH Switch Keypad

278003726

$126.99

1710

RH Switch Keypad

278003474

$126.99

1730

Wiring Harness Handlebar

278003712

$319.99

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

1740

Safety Nut (DESS Switch)

278002963

$3.28

1745

Tie-Rap 180 mm

414115200

$0.11

8000

Safety Lanyard Ass'y, Learning / RFID

278003401

$84.99

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

8020

Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j

278003402

$84.99
