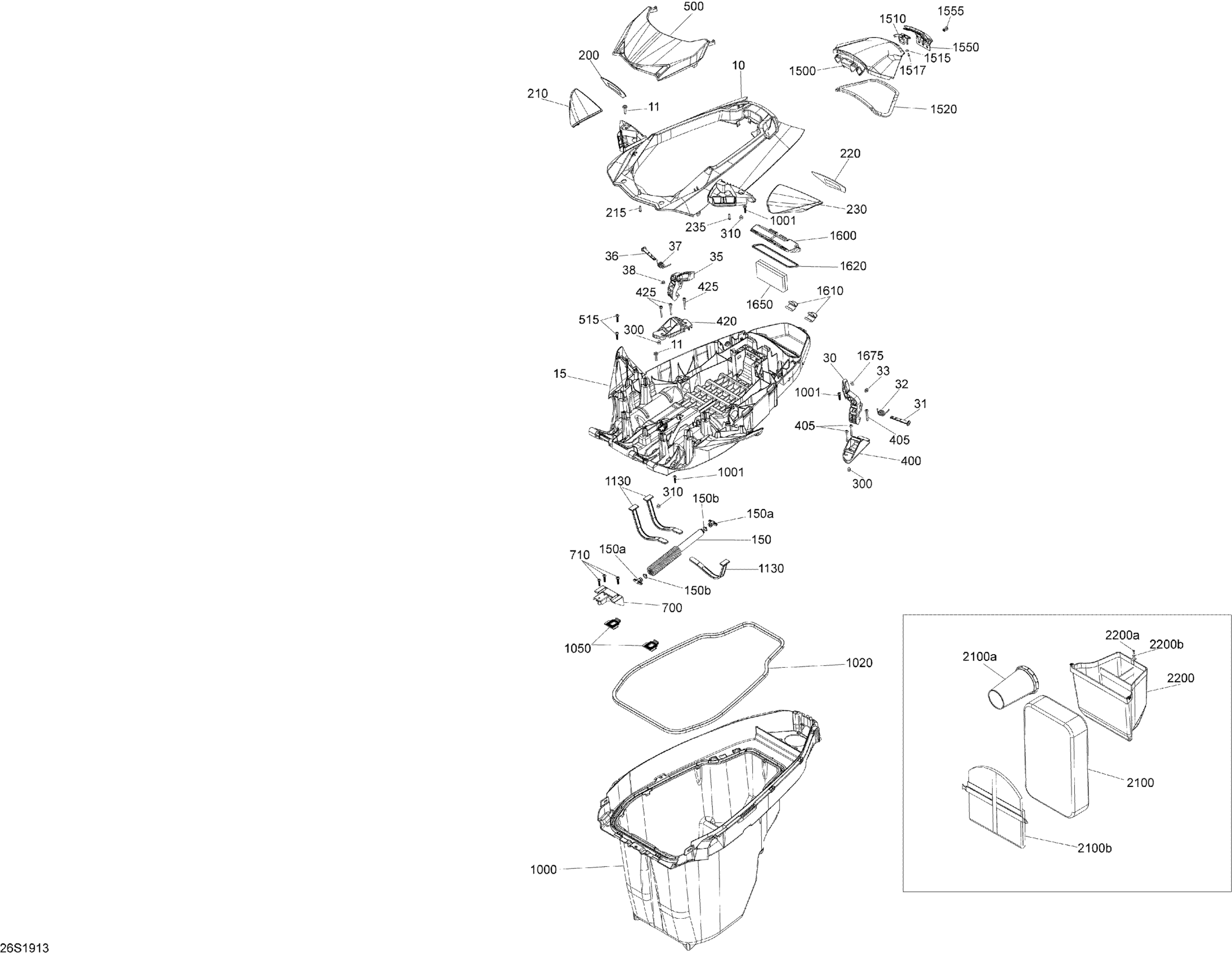

Sea-doo GTX 230, 2019 Front Cover Diagram

#

Description
Price

10

Outer Skin

269502394

$158.57

11

Hexagonal Cap Screw M6 X35

250000399

$3.61

15

Inner Console Support

269502265

$156.12

30

LH Latch

269502267

$24.02

31

Latch Axis

269502326

$12.97

32

Latch Spring

269502268

$20.77

33

Rubber Bumper

293830005

$5.33

35

RH Latch

269502299

$24.02

36

Latch Axis

269502326

$12.97

37

Latch Spring

269502268

$20.77

38

Rubber Bumper

293830005

$5.33

150>150b

Shock Absorber Assembly | Includes 150 to 150b

269502426

$78.62

150a

Shock Absorber End Fitting

269501984

$8.88

150b

Tie Wrap 94 mm | 4X4

293750001

$0.83

200

RH Mirror Glass

269502276

$72.12

210

Stone Grey, RH Mirror Cover

269502342

$43.52

210

Liquid Grey, RH Mirror Cover

269502344

$43.52

215

Hex. Screw 10-14 X 7/8”

211000023

$2.91

220

LH Mirror Glass

269502274

$72.12

230

Stone Grey, LH Mirror Cover

269502341

$43.52

230

Liquid Grey, LH Mirror Cover

269502343

$43.52

235

Hex. Screw 10-14 X 7/8”

211000023

$2.91

300

Rubber Bumper

293830005

$5.33

310

Rubber Bumper

293830005

$5.33

400

LH Latch Base

269502385

$13.62

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

420

RH Latch Base

269502386

$13.62

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

500

Stone Grey, Top Cover

269502347

$93.57

515

Screw Torx M6.81 X 30

250001007

$1.61

700

Shock Base

269502282

$20.12

710

Screw Torx M6.81 X 30

250001007

$1.61

1000

Bin Compartment

264000144

$95.52

1001

Screw Torx M6.81 X 30

250001007

$1.61

1020

Gasket

293250478

$10.34

1050

Adjustment Hook

269502325

$7.15

1130

Strap

269502145

$11.53

1500

Glove Box Door

264000132

$51.32

1510

Glove Box Latch

264000133

$15.57

1515

Flat Washer 4 mm, Stainless

234042600

$0.92

1517

Screw K40 X 10

241140060

$1.25

1520

Cover Gasket

293250717

$23.37

1550

Glove Box Trim

269502538

$14.92

1555

Tuflok Plastic Rivet

293150230

$1.21

1600

Watertight Door

264000134

$10.21

1610

Clip

269501718

$12.97

1620

Gasket

293250412

$12.60

1650

Sealed Compartment Foam

264000135

$9.22

1675

Vent Membrane

264000137

$9.04

2100

Trailering Cover | Package LTD

295100697

$379.97

2100a

Safety Kit | Package LTD

295100330

$18.82

2100b

Bag | Package LTD

269001936

$69.97

2200

Rear Bin Organizer | Package LTD

295100755

$59.97

2200a

Flange Torx Screw K40 X 16

250000287

$1.74

2200b

Flat Washer 4 mm, Stainless

234042600

$0.92
