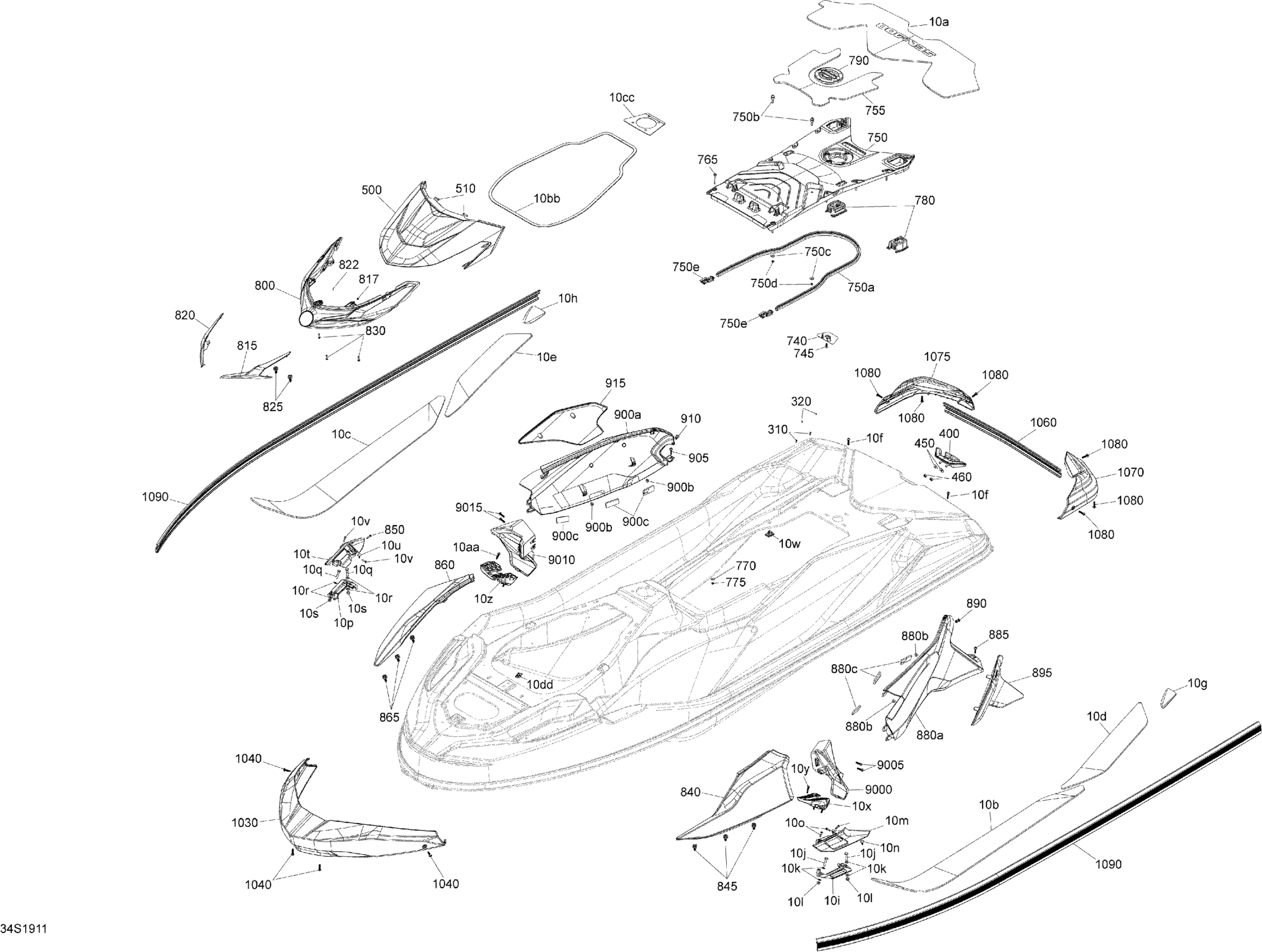

Sea-doo GTX 230, 2019 Body Diagram

Rear Plat-Form Carpet | Package LTD

291005075

$138.43

Rear Plat-Form Carpet

291005076

$85.12

Anti Slip Mat FRT LH

291005044

$33.77

Anti Slip Mat FRT RH

291005045

$33.77

LH Rear Carpet

291004514

$13.62

RH Rear Carpet

291004515

$13.62

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

LH Anti-Skid Pad

291004516

$4.55

RH Anti-Skid Pad

291004517

$4.55

LH Cleat

291004559

$6.37

Hex. Screw M8 X 35

207083560

$1.45

Stainless, Flat Washer 8 mm

234081600

$0.46

Hex. Elastic Nut M8 Brass

232581200

$1.29

LH Shell Cleat

291004661

$7.15

Black, Dart

293730011

$0.79

Hex. Screw 10-14 X 7/8”

211000023

$2.91

RH Cleat

291004720

$6.37

Hex. Screw M8 X 35

207083560

$1.45

Stainless, Flat Washer 8 mm

234081600

$0.46

Hex. Elastic Nut M8 Brass

232581200

$1.29

RH Shell Cleat

291004719

$7.15

Black, Dart

293730011

$0.79

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

LH Support

291004714

$7.15

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

RH Support

291004715

$7.87

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

Gasket

293250401

$8.80

Gasket

293250451

$19.47

Tie-Rap Mount

293750025

$1.15

Rivet 1/8"

293150016

$0.29

Black, Snap Cap

293000014

$0.85

Cleat

291004597

$19.47

Flat Washer 8 mm, Stainless

234082600

$1.98

Hex. Elastic Nut M8 Brass

232581200

$1.29

Deep Black, Hood

291005579

$76.02

Stone Grey, Hood

291004795

$81.87

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Hose Protector

291004941

$4.35

Black, Dart

293730011

$0.79

Access Cover Ass'y | Includes 750 to 750f

291005189

$207.66

Was 293200062 Seal

219704366

$61.72

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

$22.07

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Seal

291004717

$9.04

Cover B-421 | Package LTD

291004603

$69.20

Black, Mat Cover

291004668

$33.12

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Cargo Base

291005157

Unavailable

Access Cap Ass'y

291004481

$7.15

Front Hood Grille

291005915

$27.92

Chromed, Trim LH | Model Liquid Metal

291004491

$62.28

Deep Black, LH Trim

291005964

$22.07

Push Nut | Not shown

211100002

$0.83

Chromed, Trim RH | Model Liquid Metal

291004492

$62.28

Deep Black, RH Trim

291005965

$22.07

Push Nut | Not shown

211100002

$0.83

Dard

293730071

$0.90

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Liquid Metal, LH Front Body Panel

291004553

$180.67

Iceland Grey, LH Front Body Panel

291004676

$64.32

Dard

293730071

$0.90

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Liquid Metal, RH Front Body Panel

291004554

$221.51

Iceland Grey, RH Front Body Panel

291004775

$64.32

Dard

293730071

$0.90

Liquid Metal, Body Panel Central LH

291004555

$258.43

Iceland Grey, LH Central Body Panel

291004556

$129.32

Rubber Bumper

293830005

$5.33

Stopper

278003618

$0.72

Screw Torx M6.81 X 30

250001007

$1.61

Tuflok Plastic Rivet

293150230

$1.21

Knee Pads LH B-286 Ass'y | Package LTD

291004796

$106.12

Liquid Metal, RH Central Body Panel

291004557

$258.43

Iceland Grey, RH Central Body Panel

291004558

$129.32

Rubber Bumper

293830005

$5.33

Stopper

278003618

$0.72

Screw Torx M6.81 X 30

250001007

$1.61

Tuflok Plastic Rivet

293150230

$1.21

Knee Pads RH B-418 Ass'y | Package LTD

291004803

$106.12

Front Bumper

291004452

$62.37

Screw Torx M6.81 X 30

250001007

$1.61

Bumper 2775±25mm

291004468

$113.07

LH Rear Bumper

291004465

$24.02

RH Rear Bumper

291004466

$24.02

Screw Torx M6.81 X 30

250001007

$1.61

Bumper 2775±25mm

291004468

$113.07

LH Side Grille

291004455

$7.29

Screw Torx M6.81 X 30

250001007

$1.61

RH Side Grille

291004456

$7.29

Screw Torx M6.81 X 30

250001007

$1.61
