- SEA-DOO - GTX - FISH PRO Series
- 002 - GTX 230, 2019
01- Cooling System

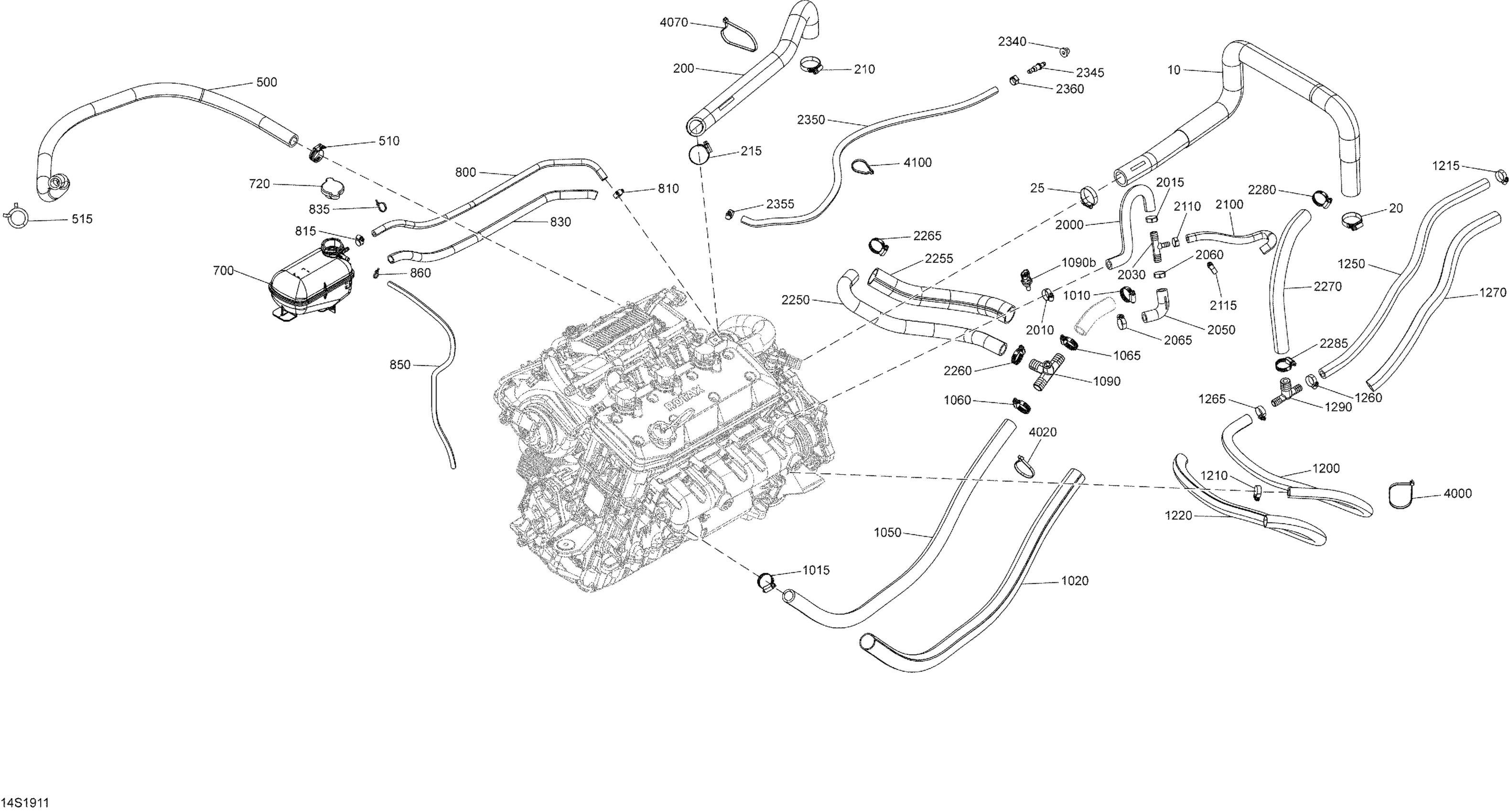

Sea-doo 002 - GTX 230, 2019 01- Cooling System Diagram
#
10
Hose Riding Plate LH
276000462
$66.49
20
Norma Clamp
293650245
$14.99
25
Norma Clamp
293650245
$14.99
200
Hose Riding Plate RH
276000487
$52.99
210
Norma Clamp
293650245
$14.99
215
Norma Clamp
293650245
$14.99
500
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
510
Tridon Gear Clamp
293650019
$5.82
515
Spring Clamp
293650115
$3.09
720
Pressure Cap | Includes 720 to 720a
276000100
$25.99
800
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
$33.99
810
Gear Clamp
293650287
$2.11
815
Gear Clamp
293650287
$2.11
830
Was 409901800 Tubing (13 mm)
219704400
$14.49
835
Tie Wrap 94 mm | 4X4
293750001
$1.03
850
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
$78.49
860
Tie Wrap 94 mm | 4X4
293750001
$1.03
1000
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1010
Gear Clamp
293650284
$4.44
1015
Gear Clamp
293650284
$4.44
1020
Tubing 25 MM 1000MM Long
219704402
$15.99
1050
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1060
Gear Clamp
293650284
$4.44
1065
Gear Clamp
293650284
$4.44
1090
T-Fitting
293710131
$15.87
1090
Temperature Sensor Fitting Ass'y | Includes 1090 to 1090b
293710164
$66.99
1090b
Temperature Sensor
278002895
$39.99
1200
Was 276000001 Hose 12.5 mm
219704394
$51.99
1210
Clamp Gear
293650285
$3.27
1215
Clamp Gear
293650285
$3.27
1220
Was 515175319 Tubing 22 mm
219704423
$14.99
1250
Was 276000001 Hose 12.5 mm
219704394
$51.99
1260
Clamp Gear
293650285
$3.27
1265
Clamp Gear
293650285
$3.27
1270
Was 515175319 Tubing 22 mm
219704423
$14.99
1290
T-Fitting
293710132
$12.65
2000
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
$19.49
2010
Clamp Gear
293650285
$3.27
2015
Oetiker Clamp
293650012
$7.49
2030
T-Fitting
293710116
$17.62
2050
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
2060
Oetiker Clamp
293650012
$7.49
2065
Clamp Gear
293650285
$3.27
2100
Formed Hose | Without Catalyst
276000246
$19.49
2110
Oetiker Clamp | Europe
293650030
$5.19
2115
Clamp Gear
293650285
$3.27
2250
Formed Hose
276000422
$22.49
2255
Tubing 25 MM 1000MM Long
219704402
$15.99
2260
Gear Clamp
293650284
$4.44
2265
Gear Clamp
293650284
$4.44
2270
Formed Hose | Includes 2270 to 2270a This part replaces 276000461.
276000423
$32.99
2280
Gear Clamp
293650284
$4.44
2285
Gear Clamp
293650284
$4.44
2340
Grommet
293720029
$1.59
2345
Male Connector
414518500
$4.23
2350
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
$33.99
2355
Gear Clamp
293650287
$2.11
2360
Oetiker Gear Clamp
293650025
$3.09
4000
Tie Wrap 368 mm
293750008
$1.04
4020
Tie-Rap 180 mm
414115200
$0.11
4070
Tie Wrap 368 mm
293750008
$1.04
4100
Tie-Rap 180 mm
414115200
$0.11
