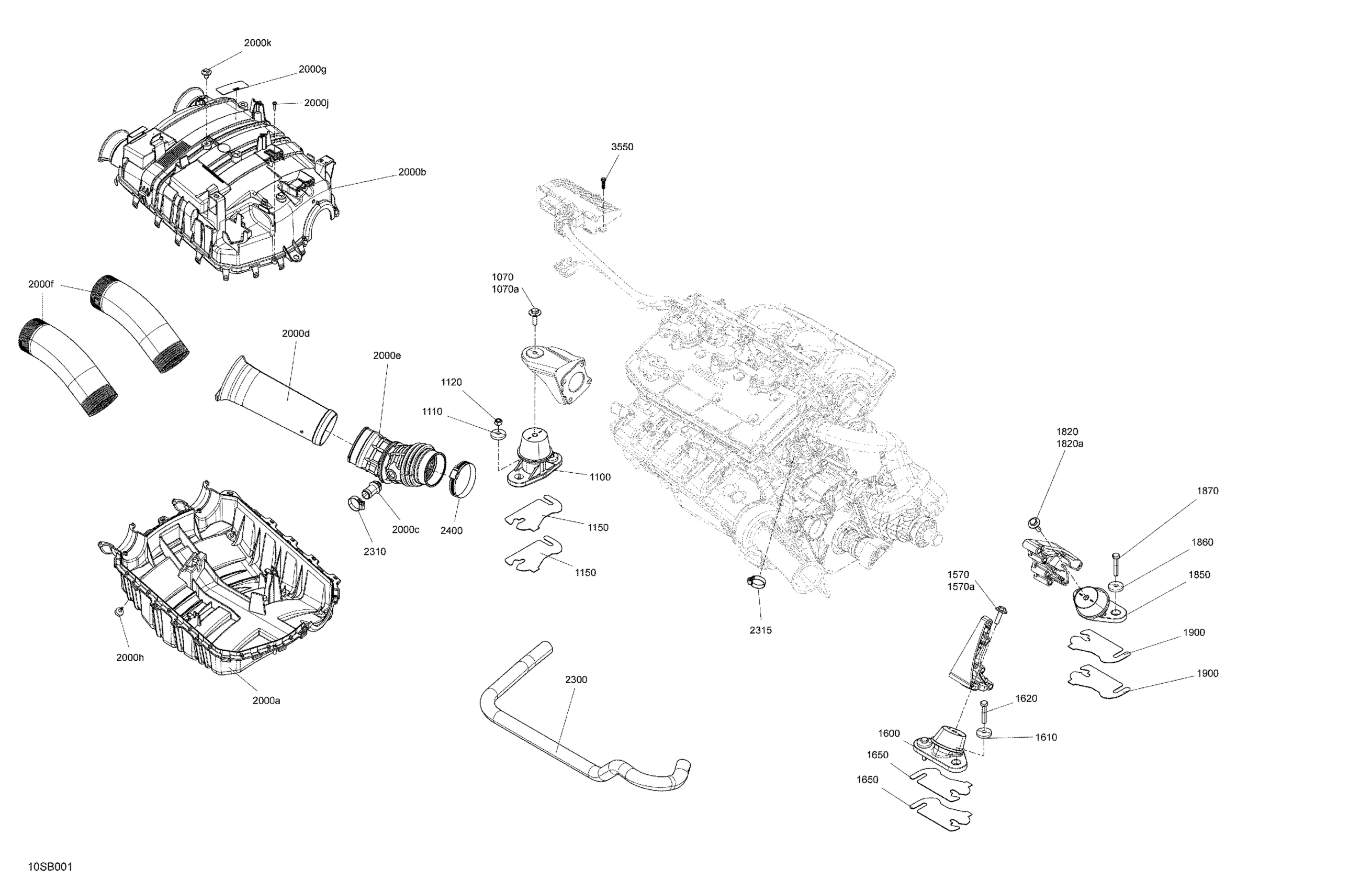

Sea-doo 002 - GTI 130, 2022 02- Engine - System Diagram
#
Description
Price
1070
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1070a
Hexagonal Screw M8 X 30
250000888
$3.17
1100
Engine Support Ass'y
270001096
$97.99
1110
Cone Washer
250200018
$5.61
1120
Hex. Elastic Nut M8 Brass
232581200
$2.22
1150
Shim 1.3 mm
270000762
$12.99
1570
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1570a
Hexagonal Screw M8 X 30
250000888
$3.17
1600
Engine Support Ass'y
270001081
$109.99
1610
Cone Washer
250200018
$5.61
1620
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
1650
Shim 1.3 mm
270000762
$12.99
1820
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1820a
Hexagonal Screw M8 X 30
250000888
$3.17
1850
Engine Support Ass'y
270001081
$109.99
1860
Cone Washer
250200018
$5.61
1870
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
1900
Shim 1.3 mm
270000762
$12.99
2000a
Airbox Base
273000342
$48.99
2000b
Intake Silencer Cover
273000394
$72.99
2000c
Breather Valve
273000234
$14.49
2000d
Intake Hose
273000359
$48.99
2000e
Hose Intake Silencer - Molded
273000395
$17.49
2000f
Air Silencer Hose
273000290
$22.49
2000g
Air Silencer Notice Decal
219903177
Unavailable
2000h
Rubber Stopper
708000759
$4.19
2000j
Flange Torx Screw K40 X 16
250000287
$2.11
2000k
Mount Dart
293730040
$1.04
2300
FORMED HOSE - Call your local BRP dealership
270000808
Unavailable
2310
Tridon Gear Clamp
293650051
$4.19
2315
Tridon Gear Clamp
293650051
$4.19
2400
Tridon Clamp
293650179
$11.49
3550
Hex. Flange Screw K50 X 20
241152060
$1.99
