02- Engine - Cooling

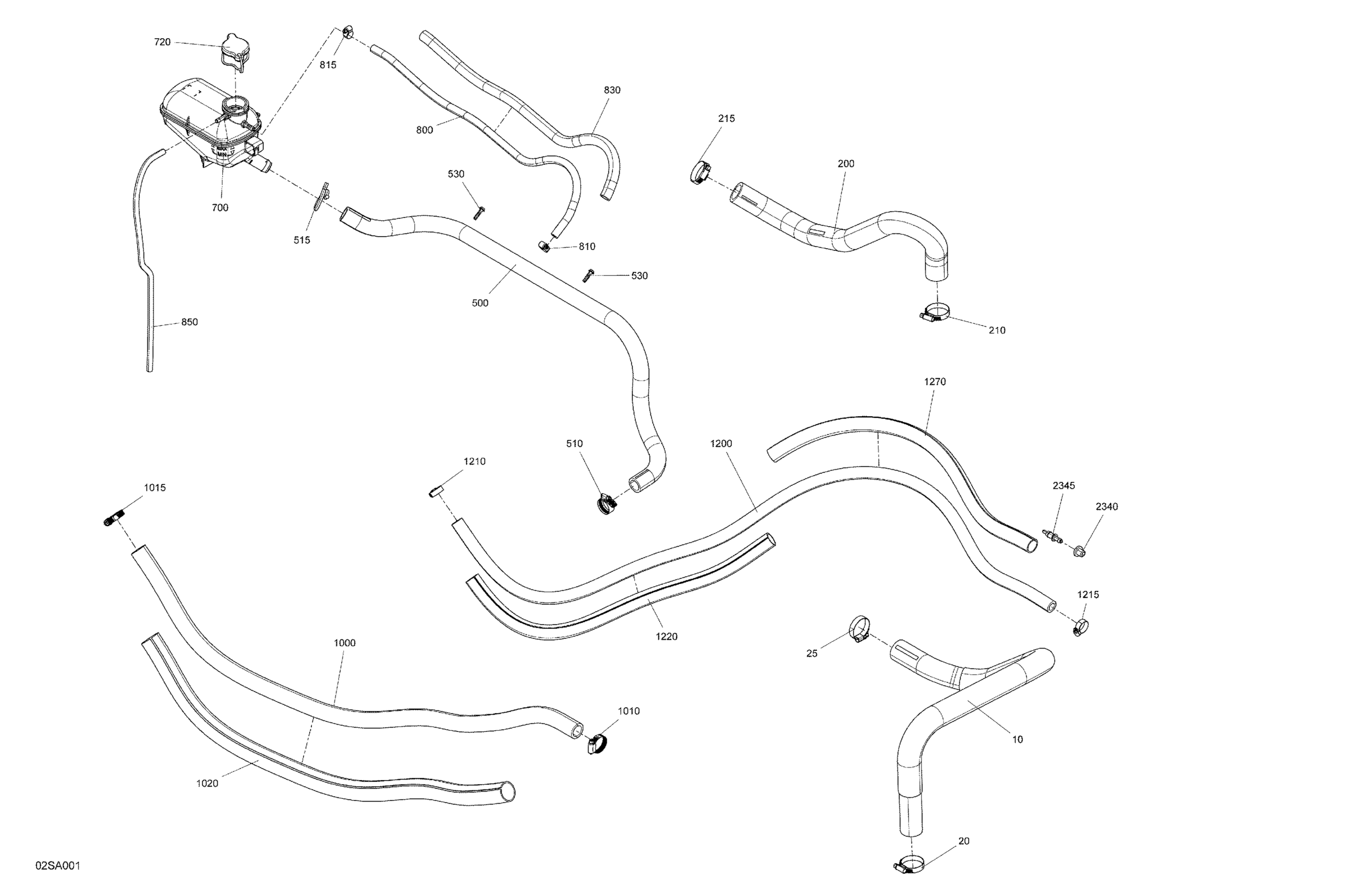

Sea-doo 002 - GTI 130, 2021 02- Engine - Cooling Diagram
#
Description
Price
10
Hose
276000516
$70.49
20
Norma Clamp
293650245
$14.99
25
Norma Clamp
293650245
$14.99
200
Formed Hose
276000517
$56.99
210
Norma Clamp
293650245
$14.99
215
Norma Clamp
293650245
$14.99
500
Coolant Tank Hose
276000523
$39.99
510
Tridon Gear Clamp
293650019
$5.82
515
Spring Clamp
293650115
$3.09
530
Hex. Flange Screw K50 X 20
241152060
$1.99
700
Coolant Tank
276000419
$119.99
720
Pressure Cap | Includes 720 to 720a
276000100
$25.99
800
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
$33.99
810
Tridon Gear Clamp
293650170
$1.99
815
Tridon Gear Clamp
293650170
$1.99
830
Was 409901800 Tubing (13 mm)
219704400
$14.49
850
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
$78.49
1000
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
1010
Tridon Gear Clamp
293650051
$4.19
1015
Tridon Gear Clamp
293650051
$4.19
1020
Tubing 25 MM 1000MM Long
219704402
$15.99
1200
Was 276000001 Hose 12.5 mm
219704394
$51.99
1210
Tridon Gear Clamp
293650172
$3.09
1215
Tridon Gear Clamp
293650172
$3.09
1220
Was 515175319 Tubing 22 mm
219704423
$14.99
1270
Was 515175319 Tubing 22 mm
219704423
$14.99
2340
Grommet
293720029
$1.59
2345
Straight Fitting
293710133
$14.75
