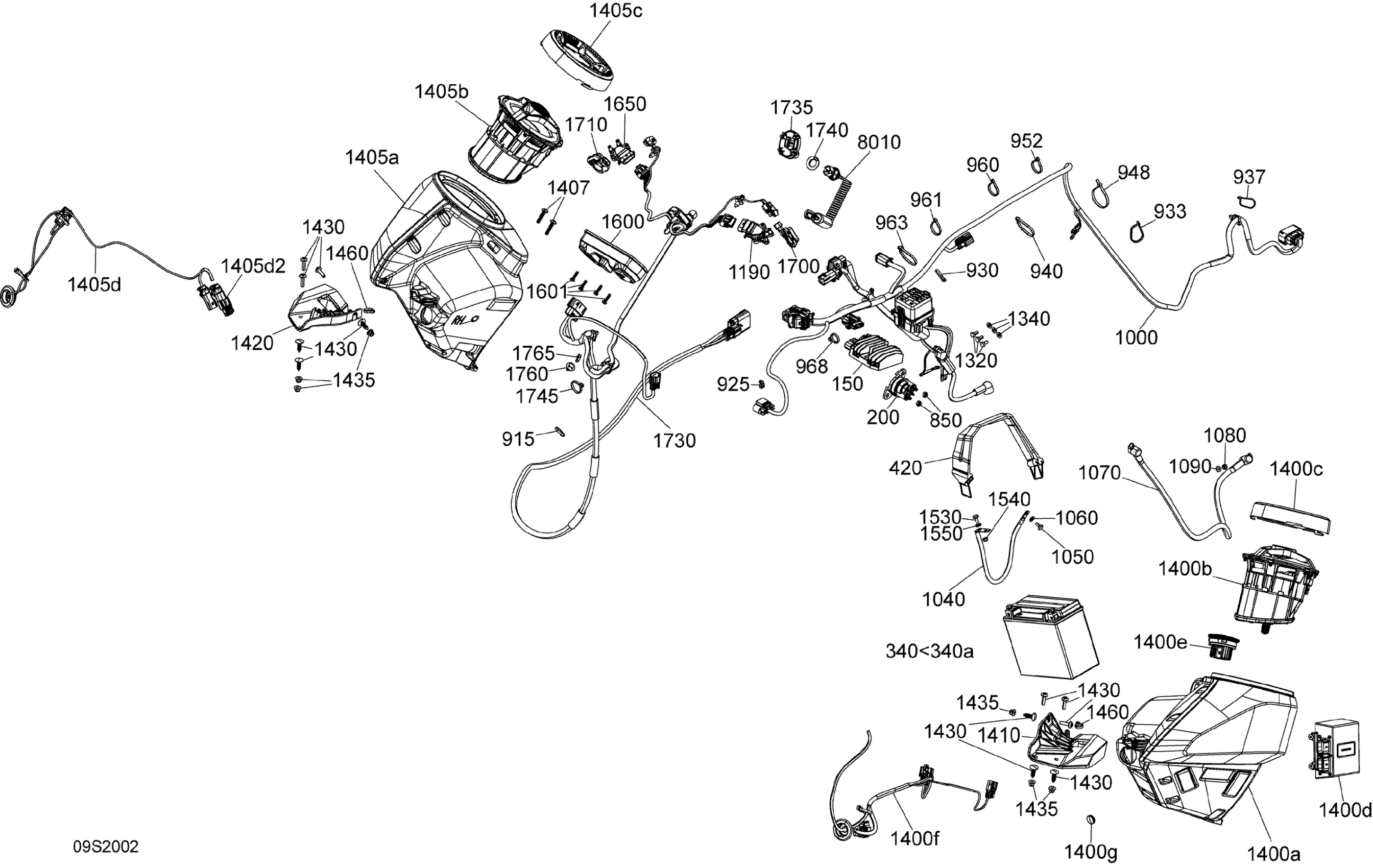

Sea-doo GTI 130, 2020 Electrical System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

340

Battery 12 Volt 18AH

296000449

$126.07

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$2.95

420

Strap

293850141

$16.22

425

Tie-Rap 180 mm

414115200

$0.09

850

Elastic Stop Nut M6, Brass

232561200

$3.51

915

Tie-Rap 180 mm

414115200

$0.09

925

Tie-Rap 180 mm

414115200

$0.09

930

Tie-Rap 180 mm

414115200

$0.09

933

Tie Wrap 368 mm

293750008

$0.85

937

Tie-Rap 180 mm

414115200

$0.09

940

Tie-Rap 180 mm

414115200

$0.09

948

Tie Wrap 368 mm

293750008

$0.85

952

Tie-Rap 180 mm

414115200

$0.09

960

Tie-Rap 180 mm

414115200

$0.09

961

Tie-Rap 180 mm

414115200

$0.09

963

Tie-Rap 180 mm

414115200

$0.09

968

Tie-Rap 180 mm

414115200

$0.09

1000

Main Wiring Harness

278003783

$265.82

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$115.35

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1400a

LH Speaker Enclosure | Includes 1400a1 to 1400a1d

278003876

$261.92

1400b

Speaker

278003463

$124.12

1400c

Speaker Grille

278003466

$12.97

1400d

Amplifier

278003464

$371.12

1400e

Audio Control

278003465

$308.07

1400f

Amplifier & LH Speaker Harness

278003758

$66.92

1400g

Black, Cap

277000203

$7.48

1405a

RH Speaker Enclosure | Includes 1405a to 1405a4

278003877

$261.92

1400b

Speaker

278003463

$124.12

1400c

Speaker Grille

278003466

$12.97

1400d

Amplifier

278003464

$371.12

1400d2

Housing 6 Circuits

278003866

$11.06

1405b

Not Available As Spare Parts

XXX

Unavailable

1405c

Not Available As Spare Parts

XXX

Unavailable

1405d

RH Harness Speaker | Includes 1405d to 1405d2

278003759

$16.22

1405d2

Not Available As Spare Parts

XXX

Unavailable

1407

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

1408

Insert

291003793

$2.44

1410

LH Bracket

278003766

$9.43

1420

RH Bracket

278003768

$9.43

1430

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

1435

Nut Flange Elastic M6

233261200

$0.82

1460

Tie-Rap 180 mm

414115200

$0.09

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1600

Multifunction Mono Compact Gauge

278003430

$563.05

1601

Hex. Flange Screw K50 X 20

241152060

$1.57

1650

Throttle Position Sensor

278002283

$94.22

1700

LH Switch Keypad

278003726

$101.37

1710

RH Switch Keypad

278003474

$101.37

1730

Steering Harness

278003780

Unavailable

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

1740

Safety Nut (DESS Switch)

278002963

$2.72

1745

Tie-Rap 180 mm

414115200

$0.09

1760

Mount Dart

293730040

$0.86

1765

Tie-Rap 180 mm

414115200

$0.09

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
