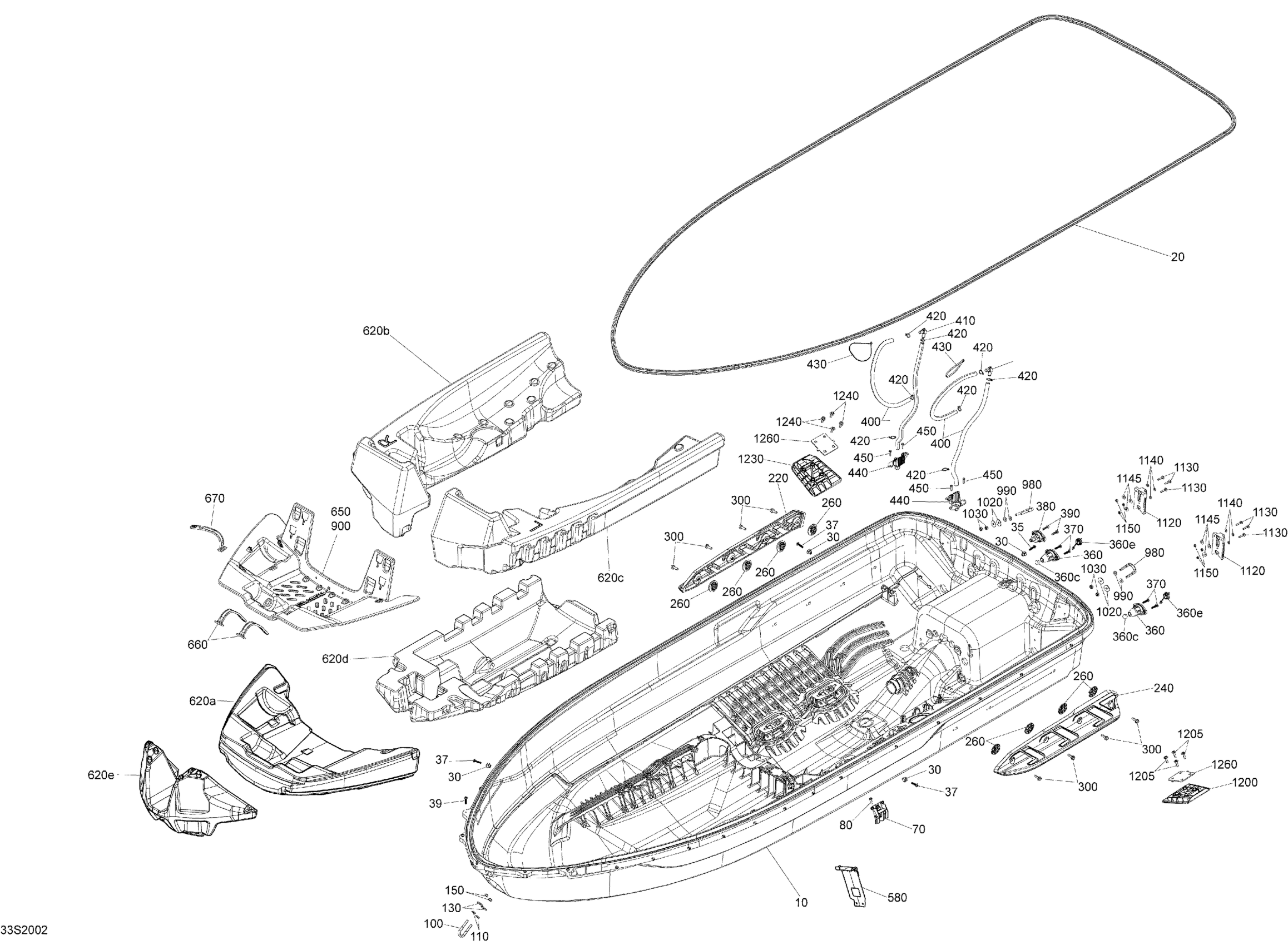

Sea-doo 002 - GTI 130, 2020 09- Hull Diagram
#
10
Hull
292002265
$2.00
20
Gasket
292002242
$54.99
30
Insert
291003793
$3.56
35
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
37
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
39
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
70
Battery Rest
292002383
Unavailable
80
Hex. Flange Screw M6.81 x 20
243162060
$3.72
100
U-Clamp
292000933
$59.49
110
Flat Washer M8.5 x 18
293050001
$3.07
130
Flat Washer 8 mm, Stainless
250200175
$3.06
150
Hex. Elastic Nut M8 Brass
232581200
$2.22
220
RH Sponson
292001953
$54.99
240
LH Sponson
292001954
$65.99
260
Housing Nut M8 | Includes 400a1m to 400a1m1
293450387
$7.09
300
Hex. Flange Screw M8 X 25
207682534
$2.11
360
Through Hull Fitting Ass'y | Includes 300 to 300f2
292002766
$15.49
360c
Floating Ball
293830080
$7.19
360e
Plug Ass'y | Includes 300f to 300f2
292002022
$14.49
370
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
380
Drain Neck Ass'y
292002153
$14.49
390
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
400
Polyurethane Hose 1000Mm Long | Not Shown
219704393
$7.20
410
Fitting Elbow 90°
293710152
$18.49
420
Tie Wrap 94 mm | 4X4
293750001
$1.03
430
Tie Wrap 368 mm
293750008
$1.04
440
Pump Support
269800956
$3.39
450
Hex. Screw 10-14 X 7/8”
211000023
$3.59
580
Battery Support
292002434
$14.49
620a
Float Hull Front
292002399
$104.99
620b
RH Center Float Hull
292002229
$104.99
620c
LH Center Float Hull
292002230
$104.99
620d
Float Hull Center
292002298
$104.99
620e
Float Hull Front Upper
292002405
$36.99
650
Trunk Shield
292001868
$43.99
660
Strap
269502417
$17.69
670
Strap
269502417
$17.69
900
Panel | Includes 900 to 900a
292002397
$54.99
980
U-Clamp
292000933
$59.49
990
Flat Washer M8.5 x 18
293050001
$3.07
1020
Flat Washer 8 mm, Stainless
250200175
$3.06
1030
Hex. Elastic Nut M8 Brass
232581200
$2.22
1120
Ladder Attachment
292002113
$8.49
1130
Truss Cone Torx Screw M6 X 30
250000924
$7.51
1140
Stainless Flat Washer M6
234061600
$0.33
1145
Flat Washer M6, Stainless
234062600
$0.77
1150
Elastic Stop Nut M6, Brass
232561200
$4.23
1200
LH Trim Tab
292002102
$18.49
1205
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1230
RH Trim Tab
292002103
$18.49
1240
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1260
Gasket
277002171
$4.33
