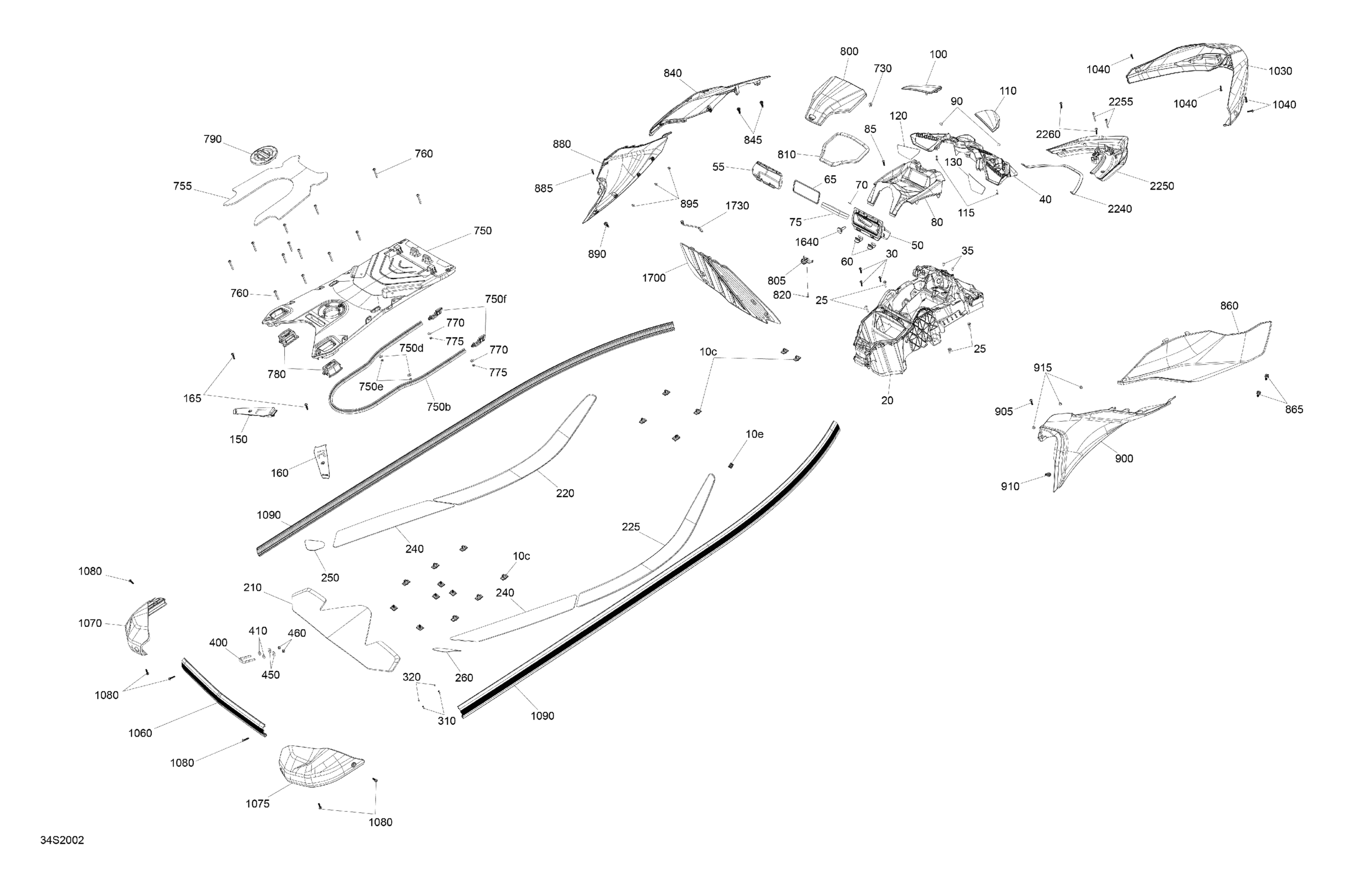

Sea-doo GTI 130, 2020 Body Diagram

#

Description
Price

10c

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.15

10e

Tie-Rap Mount

293750025

$0.99

20

Console

291005887

$166.39

25

Hex Screw SEMS M6X35, SS

250000969

$2.00

30

Screw Torx M6.81 X 30

250001007

$1.85

35

Rubber Bumper

293830005

$6.12

40

Mirror Support

291005178

$61.16

50

Deep Black, Storage Bin

291005122

$21.61

55

Watertight Door

264000134

$11.72

60

Clip

269501718

$14.90

65

Gasket

293250412

$14.46

70

Vent Membrane

264000137

$10.37

75

Sealed Compartment Foam

264000135

$10.58

80

Black, Console Panel

291005085

$51.46

85

Screw Torx M6.81 X 30

250001007

$1.85

90

Rubber Bumper

293830005

$6.12

100

Deep Black, LH Mirror Cover

269502427

$49.97

110

Deep Black, RH Mirror Cover

269502428

$49.97

115

Hex. Screw 10-14 X 7/8”

211000023

$3.34

120

LH Mirror Glass

269502274

$82.81

130

RH Mirror Glass

269502276

$82.81

150

LH Spacer

291005127

$17.13

160

RH Spacer

291005182

$17.13

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

210

Anti Slip Mat Deck Rear

291005170

$50.72

220

LH Front Anti Slip Mat Deck

291005171

$26.09

225

RH Front Anti Slip Mat Deck

291005172

$26.09

240

LH/RH Rear Anti Slip Mat Side

291005173

$18.63

250

LH Rear Anti Slip Mar Footrest

291005325

$4.03

260

RH Rear Anti Slip Mar Footrest

291005326

$4.03

310

Rivet 1/8"

293150016

$0.33

320

Black, Snap Cap

293000014

$0.97

400

U-Clamp

292000933

$37.28

410

Flat Washer M8.5 x 18

293050001

$1.48

450

Flat Washer 8 mm, Stainless

234082600

$2.27

460

Hex. Elastic Nut M8 Brass

232581200

$1.48

730

Clip

264000150

$1.54

750<750f

Access Cover Ass'y | Includes 750 to 750f

291005189

$197.73

750b

Was 293200062 Seal

219704366

$70.87

750d

Flat Washer M6, Stainless

234062600

$0.73

750e

Elastic Stop Nut M6, Brass

232561200

$4.03

750f

Seal

291004717

$10.37

755

Black, Mat Cover

291004668

$38.03

760

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

770

Flat Washer M6, Stainless

234062600

$0.73

775

Elastic Stop Nut M6, Brass

232561200

$4.03

780

Linq Bases Kit

295100858

$24.60

790

Access Cap Ass'y

291004481

$8.21

800

Deep Black, Glove Box Cover

291005888

$60.42

805

Glove Box Latch

264000133

$17.88

810

Gasket

293250498

$27.58

820

Screw K40 X 10

250001119

$1.88

840

Iceland Grey, Body Panel Front LH

291005080

$164.15

845

Dard

293730071

$1.03

860

Iceland Grey, Body Panel Front RH

291005081

$164.15

865

Dard

293730071

$1.03

880

Reef Blue, LH Central Body Panel

291005086

$164.15

885

Screw Torx M6.81 X 30

250001007

$1.85

890

Dard

293730071

$1.03

895

Rubber Bumper

293830005

$6.12

900

Reef Blue, RH Cenral Body Panel

291005087

$164.15

905

Screw Torx M6.81 X 30

250001007

$1.85

910

Dard

293730071

$1.03

915

Rubber Bumper

293830005

$6.12

1030

Bumper Front

291005082

$96.99

1040

Screw Torx M6.81 X 30

250001007

$1.85

1060

Lateral Bumper

291005510

$52.21

1070

LH Rear Bumper Corner

291005083

$18.63

1075

RH Rear Bumper Corner

291005084

$18.63

1080

Screw Torx M6.81 X 30

250001007

$1.85

1090

Lateral Bumper

291005510

$52.21

1640

USB Plug

269502324

$2.75

1700

Panel, Divider Ass'y

291005160

$91.76

1730

Holding Strap

269502111

$16.39

2240

Gasket, Neoprene 2000Mm Long

219704476

$14.51

2250

Body Deflector

291005108

$51.46

2255

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

2260

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45
