02- Fuel System

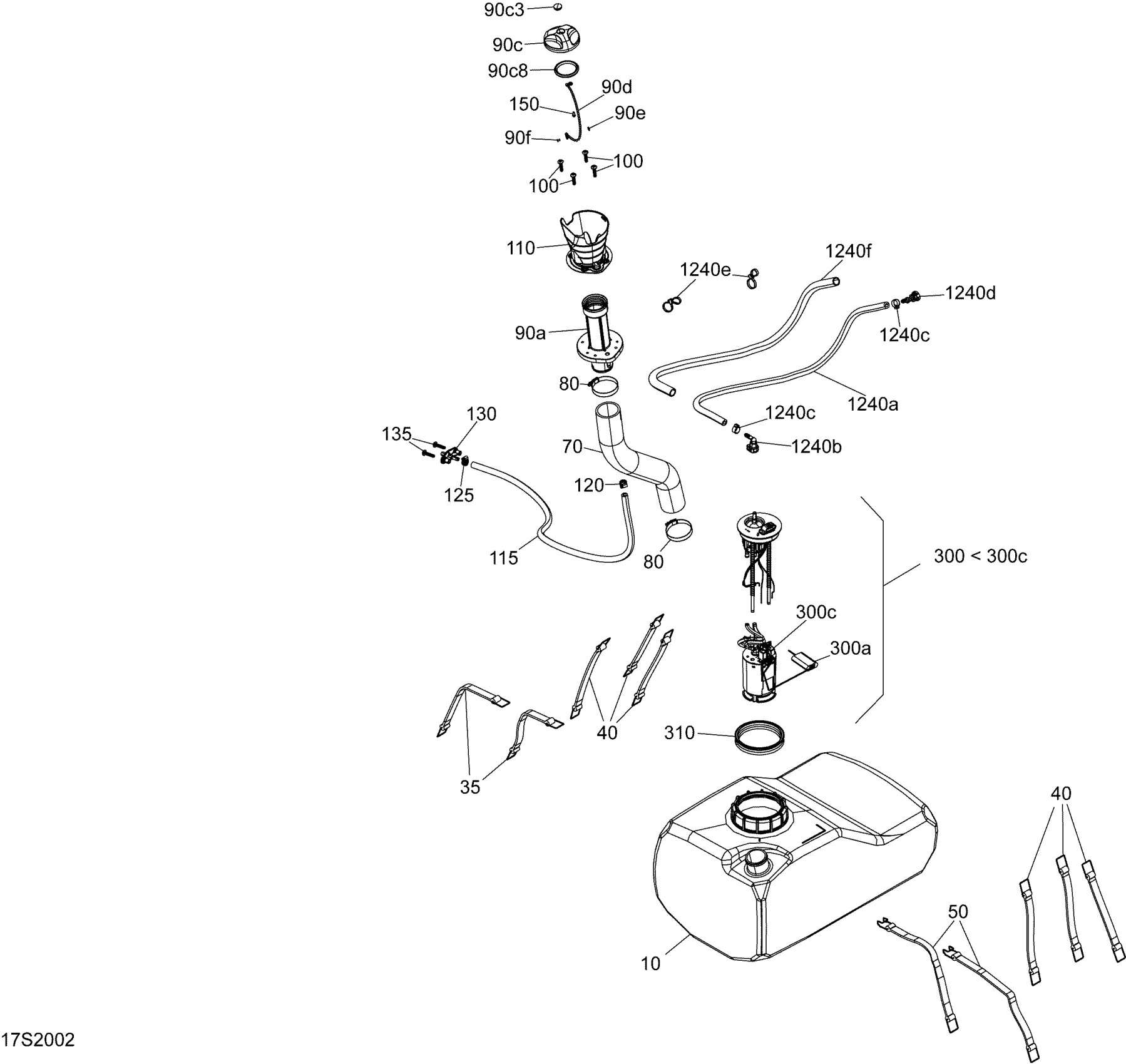

Sea-doo 002 - GTI 130, 2020 02- Fuel System Diagram
#
Description
Price
10
Fuel Tank
275500962
$359.99
35
Holding Strap
293850112
$18.49
40
Holding Strap
293850112
$18.49
50
Holding Strap
293850134
$20.99
70
Hose, Filler
275501019
$85.99
80
Norma Clamp
293650081
$12.18
90a
Filler Neck
275501005
$36.99
90c
Fuel Cap Ass'y | Includes 90b to 90b8
275500975
$59.49
90c3
Black, Snap Cap
293000034
$9.39
90c8
Gasket
293250417
$3.91
90d
Fuel Cap Chain
275500972
$18.54
90e
Flat Washer M3, Stainless
234032600
$0.55
90f
Pop Rivet 1/8"
390407900
$1.49
100
Screw Torx M6.81 X 30
250001007
$2.54
110
Gas, Deflector
293250480
$10.49
115
Hose I.D. 7.9Mm 3000Mm Long
219704359
$339.99
120
Tridon Gear Clamp
293650171
$3.09
125
Tridon Gear Clamp
293650171
$3.09
130
Fitting Ass'y
275501011
Unavailable
135
Screw Torx M6.81 X 30
250001007
$2.54
150
Screw K40 X 10
241140060
$1.48
300<300c
Pump Fuel Ass'y | Includes 300 to 300b
275500996
$425.99
300a
Sensor Lever
275500780
$224.99
300c
Fuel Filter
270600113
$33.99
310
Gasket
293250173
$18.49
1240a
Hose I.D. 7.9Mm 3000Mm Long
219704359
$339.99
1240b
Quick Disconnect
275500921
$16.49
1240c
Crimp Clamp
293650053
$3.09
1240d
Elbow Fitting 90°
293710105
$14.22
1240e
Tie Rap 300mm
293750053
$2.11
1240f
Tubing 16 Mm 1000Mm Long
219704408
$7.49
1240f
Tubing 16 Mm 1000Mm Long
219704408
$7.49
