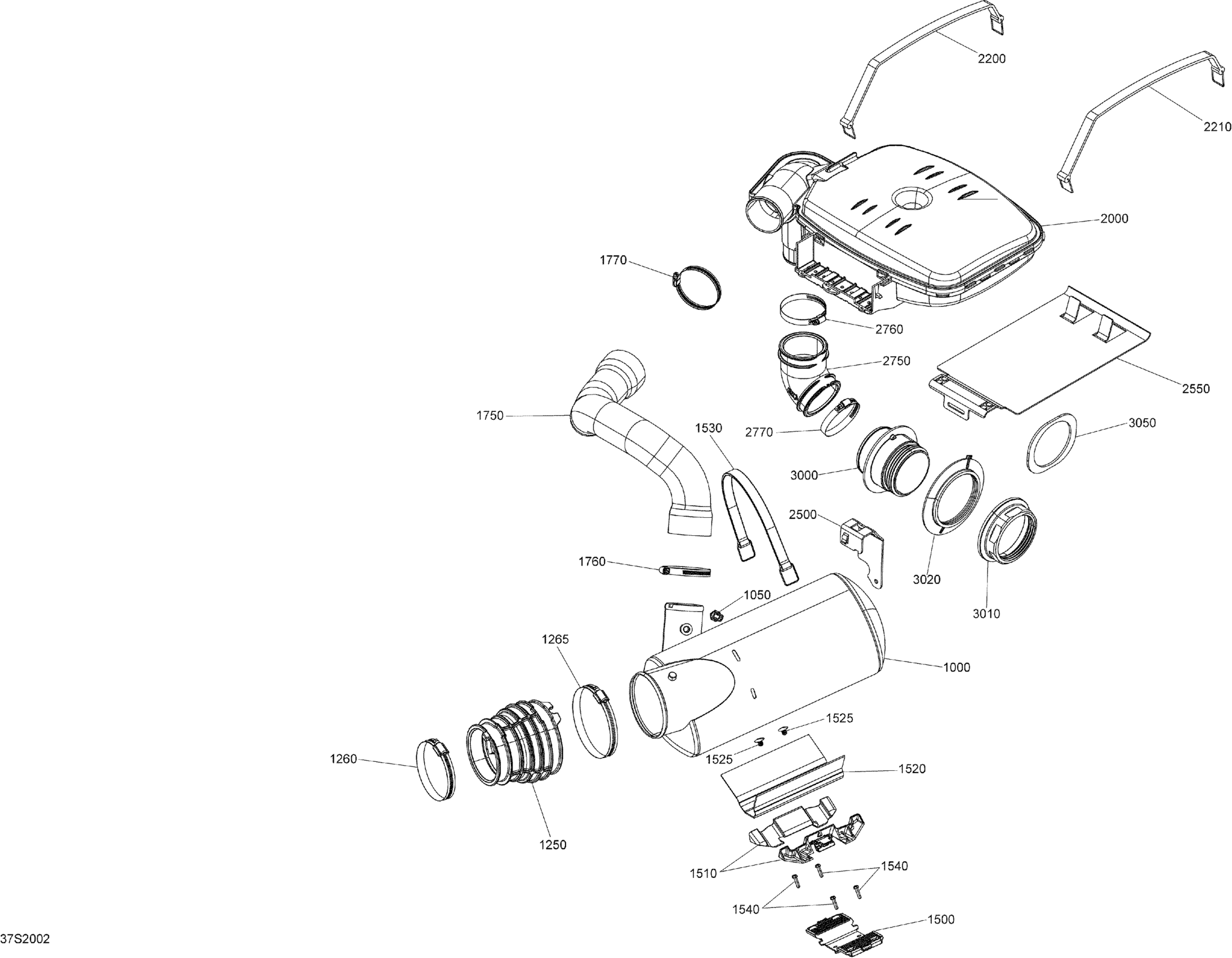

Sea-doo GTI 130, 2020 Exhaust Diagram

#

Description
Price

1000

Muffler

274001685

$676.09

1050

Temperature Sensor

278002895

$36.54

1250

Boot

274001692

$34.30

1260

Gear Clamp This part replaces 293650281.

293650202

$14.61

1265

Gear Clamp

293650299

$18.63

1500

Muffler Support

293450365

$14.25

1510

Stopper

274001721

$16.39

1520

Pad Rubber

293830153

$13.06

1525

Dart

414939500

$0.99

1530

Fuel Tank Strap

293850093

$19.37

1540

Hex. Screw 10-14 X 7/8”

211000023

$3.34

1750

Front Exhaust Hose

274001709

$74.60

1760

Tridon Gear Clamp

293650244

$8.28

1770

Tridon Gear Clamp

293650244

$8.28

2000

Resonator

274001722

$145.49

2200

Strap

293850120

$17.13

2210

Strap

293850120

$17.13

2500

Hook Retaining

292002297

$28.33

2550

Rubber Pad

293830173

$13.06

2750

Rear Exhaust Hose

274001628

$18.63

2760

Tridon Gear Clamp

293650244

$8.28

2770

Tridon Gear Clamp

293650244

$8.28

3000

Exhaust Fitting

274001659

$33.55

3010

Nut-77mm

274001541

$16.39

3020

Washer

274001587

$13.24

3050

Gasket

268000112

$15.64
