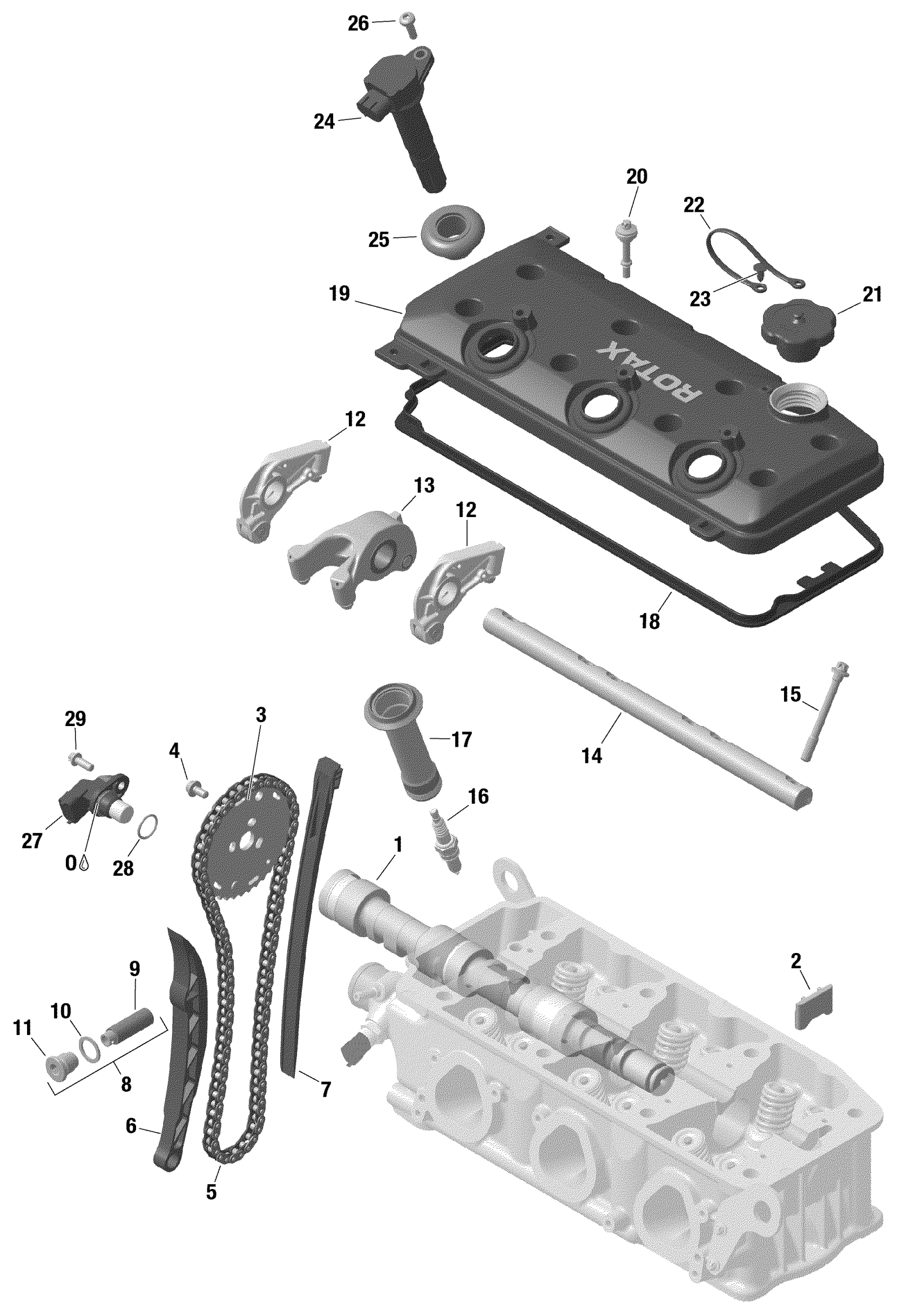

Sea-doo GTI 130, 2020 Engine - Valve Train Diagram

Camshaft

420820283

$749.22

Camshaft Guide

420851694

$26.62

Timing Gear, 38 Teeth

420254309

$57.82

Torx Flange Screw M6 X 12

420841080

$3.11

Camshaft Chain

420898042

$79.92

Chain Tension Guide

420236541

$12.97

Chain Guide

420236501

$11.48

Chain Tensioner With Screw | Includes no. 8-11

420236259

$58.47

Not Available As Spare Part - Friction Washer

Unavailable

Gasket Ring

420430624

$1.51

Plug Screw M16 X 1.5

420640485

Unavailable

Rocker Arm, Exhaust

420254329

$112.42

Rocker Arm, Inner

420254316

$148.17

Rocker Arm, Shaft

420854594

$187.28

Torx Screw M8 X 72

420641080

$4.39

Spark Plug NGK DCPR8E This part replaces 715900642.

715901051

Unavailable

Spark Plug Pipe

420851754

$22.72

Valve Cover Gasket | Included in gasket kit

420950820

$27.27

Valve Cover

420911951

$167.67

Allen Screw M6 x 30,5

420440561

$3.67

Plug Cover Ass'y

420956925

$21.42

Retaining Band

420660620

$6.11

Push Pin

420201650

$1.90

Stick Coil | Includes 5 to 6

420666142

$47.42

Protection Cap

420201430

$6.18

Torx Flange Screw M6 X 20

420441383

$4.39

Camshaft Position Sensor Ass'y

420664046

$70.82

O-Ring

420631890

$4.24

Torx Flange Screw M6 X 16

420641048

$2.46
