Description

Price

1

Oil Pump Housing

420812726

$94.22

2

Oil Pump Shaft

420837543

$49.37

3

Oil Pump Rotor 16 mm

420956675

$29.22

4

Oil Pump Cover

420811851

$27.27

5

Torx Flange Screw M6 X 16

420641048

$2.46

6

Oil Sieve

420856520

$21.42

7

Oil Suction Pump Gasket | Included in gasket kit

420631486

$7.87

8

Torx Flange Screw M6 X 25

420641238

$2.68

9

Pump Shaft Ass'y

420837472

$45.47

10

Oil Pump Rotor 16 mm

420956675

$29.22

11

Needle Pin

420929070

$1.56

12

Oil Pump Cover

420811591

$29.87

13

Torx Flange Screw M6 X 16

420641048

$2.46

14

Oil Sieve

420956950

$12.48

15

Valve Seat Sleeve

420256606

$24.02

16

Piston Valve

420256638

Unavailable

17

Compression Spring

420939401

$10.91

18

Compression Spring

420939211

$7.16

19

O-Ring

420230890

$4.41

20

Plug Screw M20 X 1.5

420641052

$31.17

21

4T 5W-40 Synthetic Blend Oil

9779133

Unavailable

21

4T 5W-40 Synthetic Oil This part replaces 9779134.

9779493

$59.12

21

4T 5W-40 Synthetic Blend Oil Change Kit for engines of 1500 cc or more

9779251

$78.62

21a

Oil Filter

420956744

$16.87

22

Oil Filter Cover

420612081

$9.20

23

O-Ring

420850500

$2.63

24

O-Ring

420230923

$2.59

25

Hex Screw M8 X 140.5

420641104

$11.21

26

O-Ring

420950860

$3.20

27

Spacer

420857229

$16.87

28

Hex. Nut M8

420842610

$11.21

29

O-Ring

420250057

$3.48

30

Oil Radiator

420888877

$264.52

31

Torx Flange Screw M6 X 16

420641048

$2.46

32

Oil Pressure Switch

420256919

$40.27

33

Temperature Sensor

278002895

$31.82

34

Oil Level Tube

420956944

$95.52

35

O-Ring

420950810

$12.29

36

Oil Level Gauge

420956933

$21.42

37

Cover

420660037

$19.47

38

Thrust Washer

420627494

$6.11

39

Vent Valve Ass'y | Includes no. 39-42

420856504

$88.37

40

V-Ring 20S FPM Blow By Valve

420630125

$9.37

41

O-Ring

420950870

$4.41

42

TOPS Switch

420665951

$34.42

43

Torx Flange Screw M6 X 25

420641238

$2.68

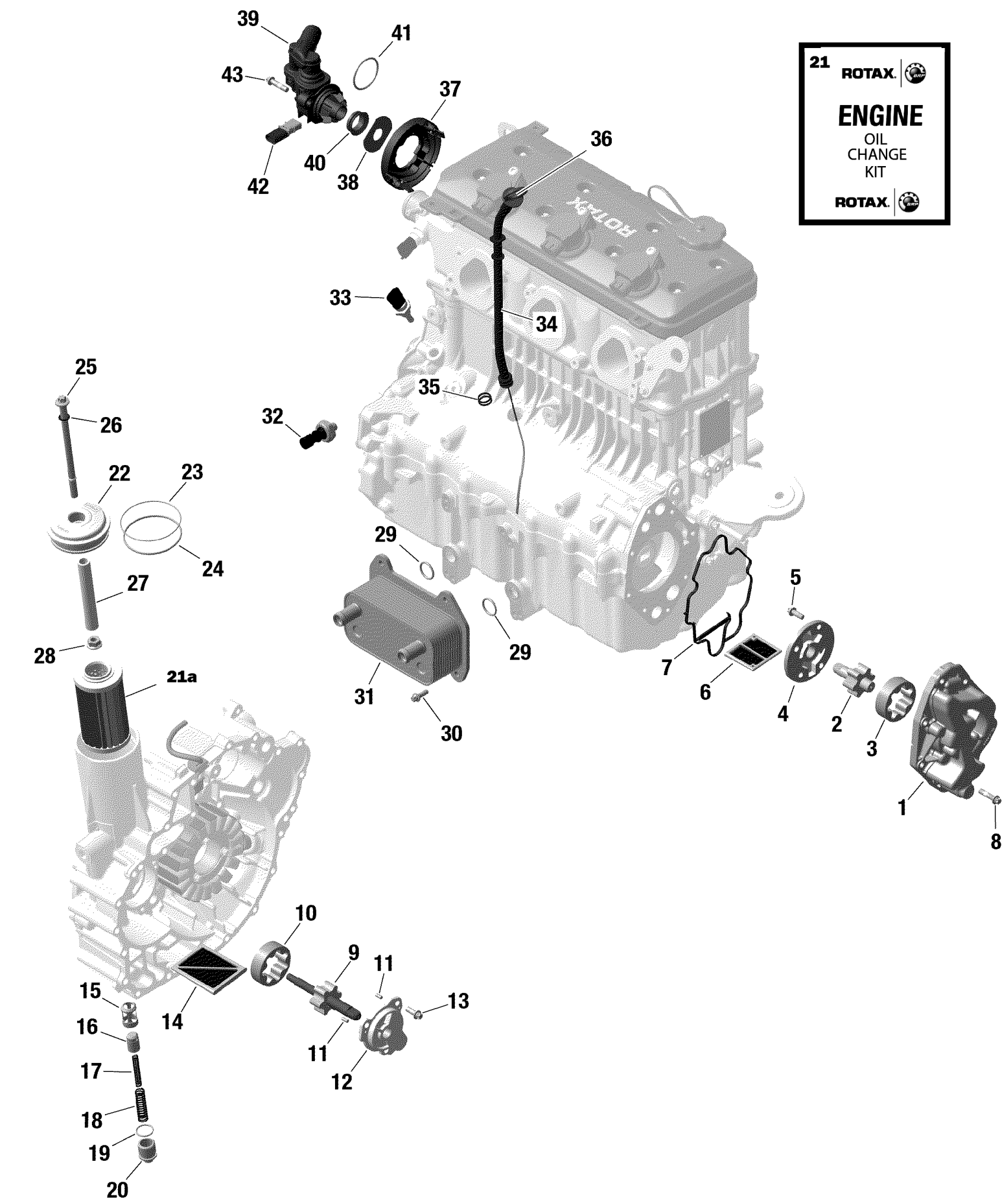

Sea-doo GTI 130, 2020 Engine - Lubrication Diagram

Oil Pump Housing

Oil Pump Shaft

Oil Pump Rotor 16 mm

Oil Pump Cover

Torx Flange Screw M6 X 16

Oil Sieve

Oil Suction Pump Gasket | Included in gasket kit

Torx Flange Screw M6 X 25

Pump Shaft Ass'y

Oil Pump Rotor 16 mm

Needle Pin

Oil Pump Cover

Torx Flange Screw M6 X 16

Oil Sieve

Valve Seat Sleeve

Piston Valve

Compression Spring

Compression Spring

O-Ring

Plug Screw M20 X 1.5

4T 5W-40 Synthetic Blend Oil

4T 5W-40 Synthetic Oil This part replaces 9779134.

4T 5W-40 Synthetic Blend Oil Change Kit for engines of 1500 cc or more

Oil Filter

Oil Filter Cover

O-Ring

O-Ring

Hex Screw M8 X 140.5

O-Ring

Spacer

Hex. Nut M8

O-Ring

Oil Radiator

Torx Flange Screw M6 X 16

Oil Pressure Switch

Temperature Sensor

Oil Level Tube

O-Ring

Oil Level Gauge

Cover

Thrust Washer

Vent Valve Ass'y | Includes no. 39-42

V-Ring 20S FPM Blow By Valve

O-Ring

TOPS Switch

Torx Flange Screw M6 X 25
