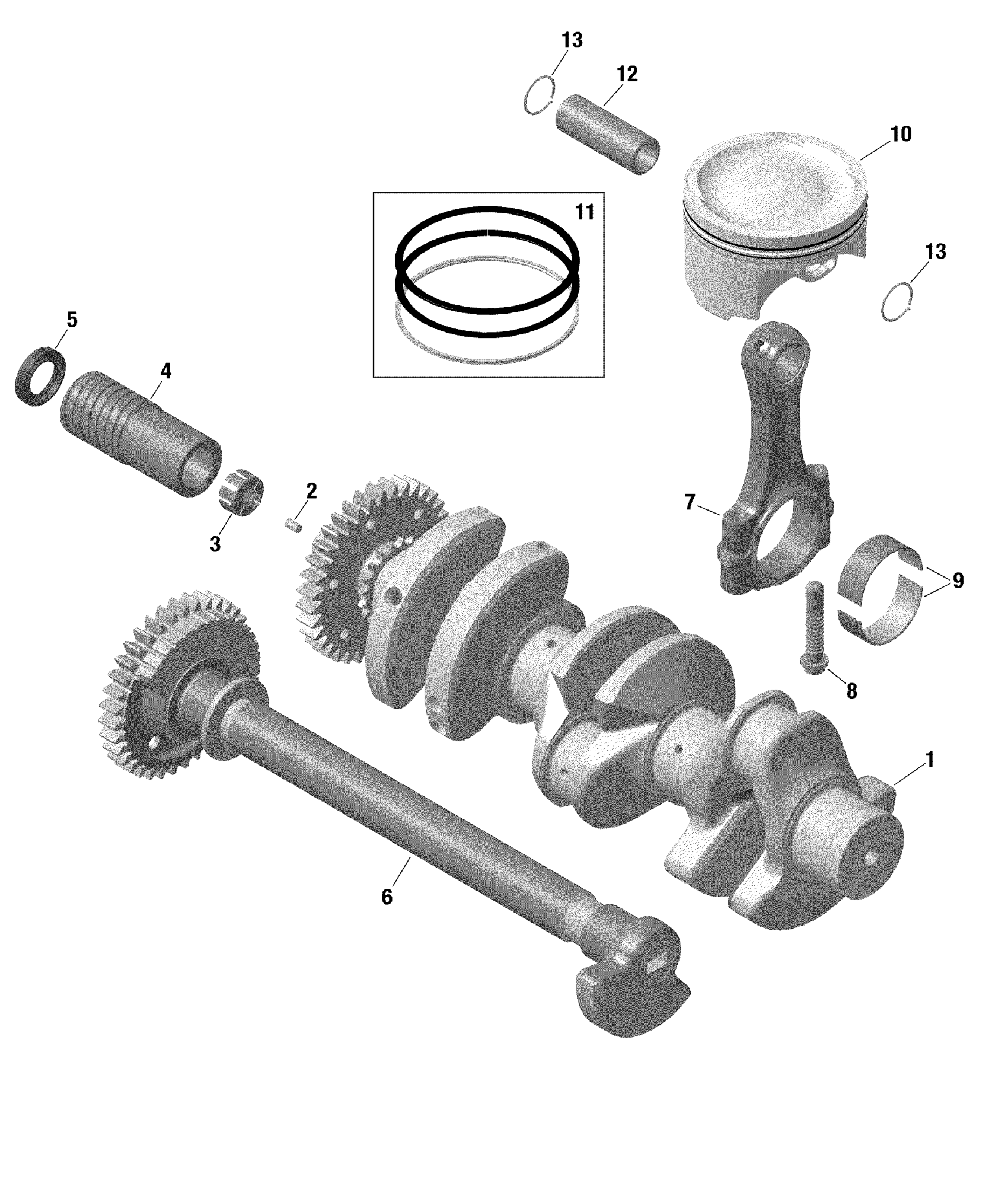

Sea-doo GTI 130, 2020 Engine - Crankshaft And Pistons Diagram

#

Description

Price

1

Crankshaft | Model Without iDF Gearbox

420819494

$882.67

2

Drive Pin 5 X 10

420929650

$1.34

3

Stop Sleeve

420660280

$10.91

4

Output Sleeve This part replaces 420847952.

420947770

$98.12

5

Sealing Ring

420630551

$12.29

6

Balance Shaft Ass'y

420820276

$578.33

7

Connecting Rod Ass'y This part replaces 420917762.

420917764

$237.22

8

Connecting Rod Screw M10 X 1

420640996

$9.39

9

Half-Bearing

420933523

$14.27

10

Piston Ass'y 99.96MM | Includes no. 7-8

420686542

$194.32

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Piston Pin

420916472

$27.27

13

Piston Circlip

420245436

$4.33
