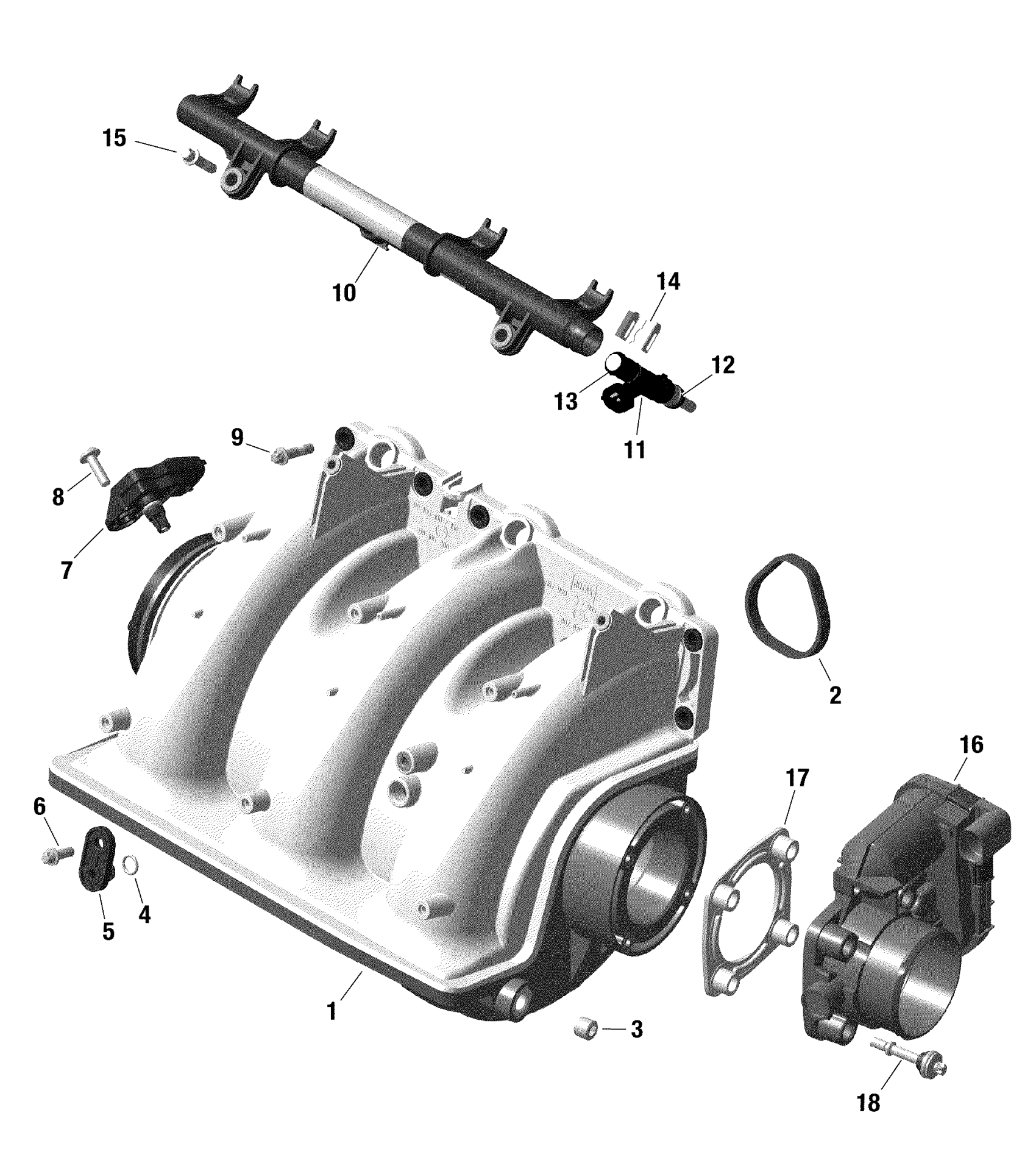

Sea-doo GTI 130, 2020 Engine - Air Intake Diagram

#

Description
Price

1>6

Intake Manifold Ass'y | Includes no. 1-6

420867954

$466.02

2

Gasket | Included in gasket kit

420950740

$3.61

3

Plug Screw M12

420840653

$11.18

4

O-Ring

420230461

$0.96

5

Cover

420460980

$2.68

6

Torx Flange Screw M6 X 16

420641048

$2.46

7

Pressure Sensor And Air Temperature

515178563

$134.52

8

Torx Flange Screw M6 X 20

420841103

$2.54

9

Torx Flange Screw M6 X 25

420641238

$2.68

10

Fuel Rail

420874414

$120.22

11>13

Injector | Includes no. 12-14

420874000

$154.67

12

O-Ring

420831050

$4.51

13

O-Ring

420831060

$8.94

14

Injector Clip

420853030

$2.46

15

Torx Flange Screw M6 X 25

420641238

$2.68

16

Throttle Body Socket Ass’y

420892592

$401.67

17

Rubber Gasket

420950792

$8.89

18

Allen Screw M6 x 30,5

420440561

$3.67
