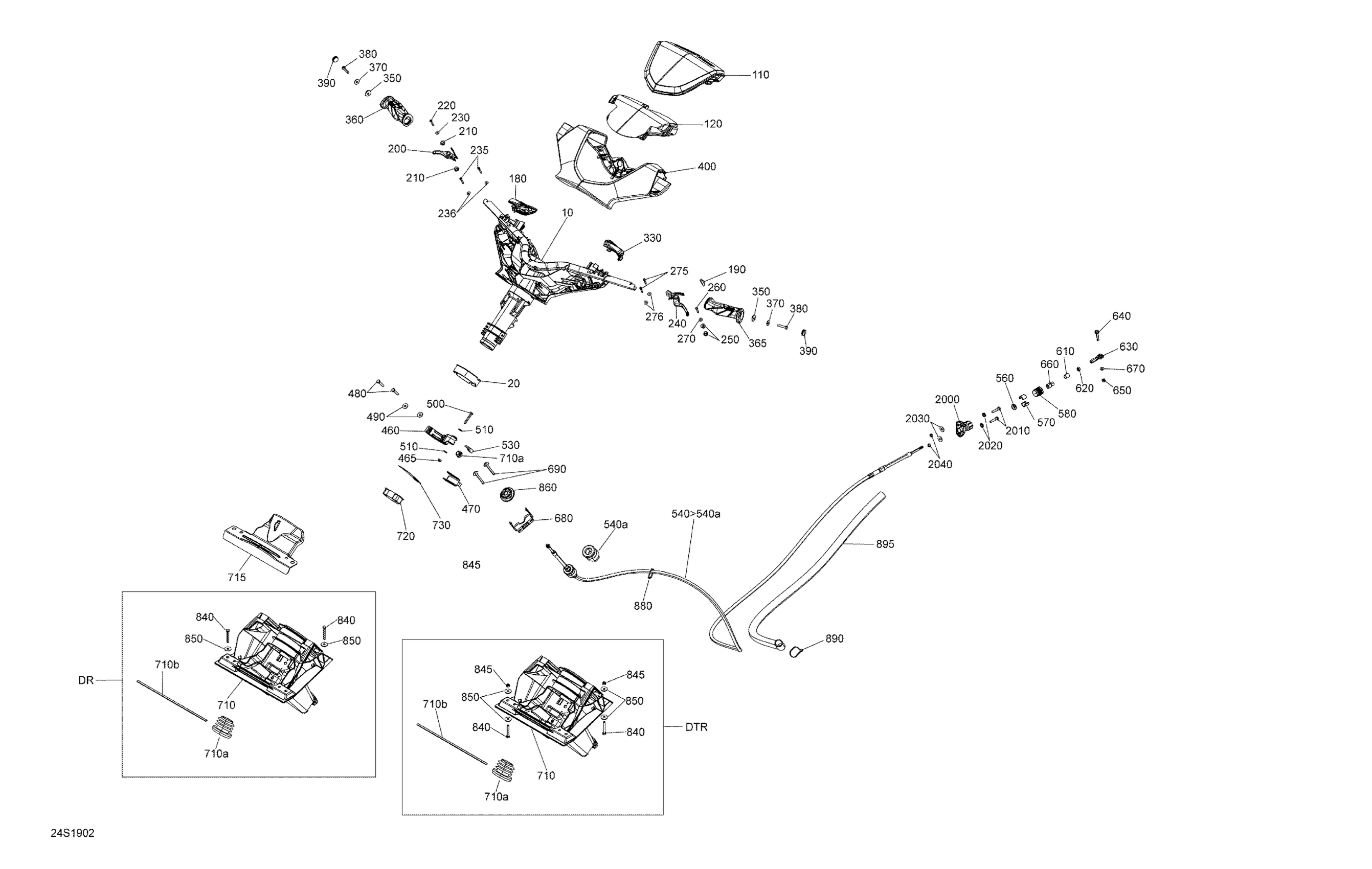

Sea-doo GTI 130, 2019 Steering Diagram

#

Description
Price

10

Steering Column

277001963

$351.46

20

Wear Ring

277001653

$11.18

110

Black Steering Pad | Package SE, B-414 Metalic Blue Long Beach

277001904

$51.46

110

Trim Steering Column Manta Green

277002096

$47.73

120

Handlebar Foam

277001921

$82.06

180

Housing Cover LH

277001860

$20.12

190

Red, Knob Switch

277001887

$8.66

200

Throttle Handle

277001944

$35.04

210

Bushing

293900091

$3.84

220

Hex. Flange Screw K40 X 25

241142560

$2.49

230

Flat Washer 4 mm, Stainless

234042600

$1.06

235

Hex. Flange Screw K40 X 25

241142560

$2.49

236

Flat Washer 4 mm, Stainless

234042600

$1.06

240

Reverse Handle

277001945

$39.52

250

Bushing

293900091

$3.84

260

Hex. Flange Screw K40 X 25

241142560

$2.49

270

Flat Washer 4 mm, Stainless

234042600

$1.06

330

Housing Cover RH

277001755

$20.12

350

Insert Grip Handle

277001863

$8.83

360

Deep Black, RH Handle Grip

277001946

$17.88

365

Deep Black, LH Handle Grip

277001958

$17.88

370

Flat Washer M6, Stainless

234062600

$0.73

380

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

390

Black, Cap

277000203

$8.58

400

Steering Cover | IBR

277001969

$61.16

460

Support Ass'y | Includes 460 to 460b

277002179

$20.12

465

Elastic Stop Nut M6, Brass

232561200

$4.03

470

Spacer

277001654

$13.09

480

Hex. Screw M6 X 35

207163560

$1.34

490

Flat Washer M6, Stainless

234062600

$0.73

500

Hex. Screw M6 X 40

207064060

$1.61

510

Stainless Flat Washer M6

234061600

$0.28

530

Ball Joint

277001180

$32.06

540>540a

Steering Cable Ass'y | Includes 540 TO 540d

277001578

$194.75

540a

Ajustment Knob

277000782

$18.63

560

Rubber Washer

293830063

$1.73

570

Half Ring

277001527

$9.58

580

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

610

Wiper Rod

277001582

$10.13

620

Hex. Nut 1/4"-28

211100056

$0.64

630

Ball Joint

277000775

$46.24

640

Hex. Screw M6 X 35

207663560

$1.88

650

Elastic Stop Nut M6, Brass

232561200

$4.03

660

End Piece

277001583

$12.79

670

Stainless Flat Washer M6

234061600

$0.28

680

Thrust Support Ass'y

277001655

$26.09

690

Hex. Screw M6 X 50

207165060

$0.87

700

Flat Washer M6, Stainless

234062600

$0.73

710>710b

Support Ass'y | Includes 710 TO 710e

277001971

$103.70

710a

Cap

517302716

$4.28

710b

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

715

Deflector

293000116

$25.34

720

Wear Ring

277002318

$14.27

840

Hex Cap Screw M6X1.0X45 S.Grip

245064560

$1.79

840

Hex Cap Screw M6X1.0X45 S.Grip

245064560

$1.79

845

Elastic Stop Nut M6, Brass

232561200

$4.03

850

Flat Washer M6.6 X 22

250200022

$2.15

850

Flat Washer M6.6 X 22

250200022

$2.15

860

Cable Grommet

293720090

$7.57

880

Tie-Rap 180 mm

414115200

$0.10

890

Tie Wrap 368 mm

293750008

$0.97

895

Shield Corrugated 22MM - 1100MM

276000470

$24.60

2000

Cable Adaptor Ass'y

277001881

$17.88

2010

Hex. Screw M6 X 30

207063060

$1.73

2020

Sealing Washer

250200114

$4.15

2030

Flat Washer M6, Stainless

234062600

$0.73

2040

Elastic Stop Nut M6, Brass

232561200

$4.03
