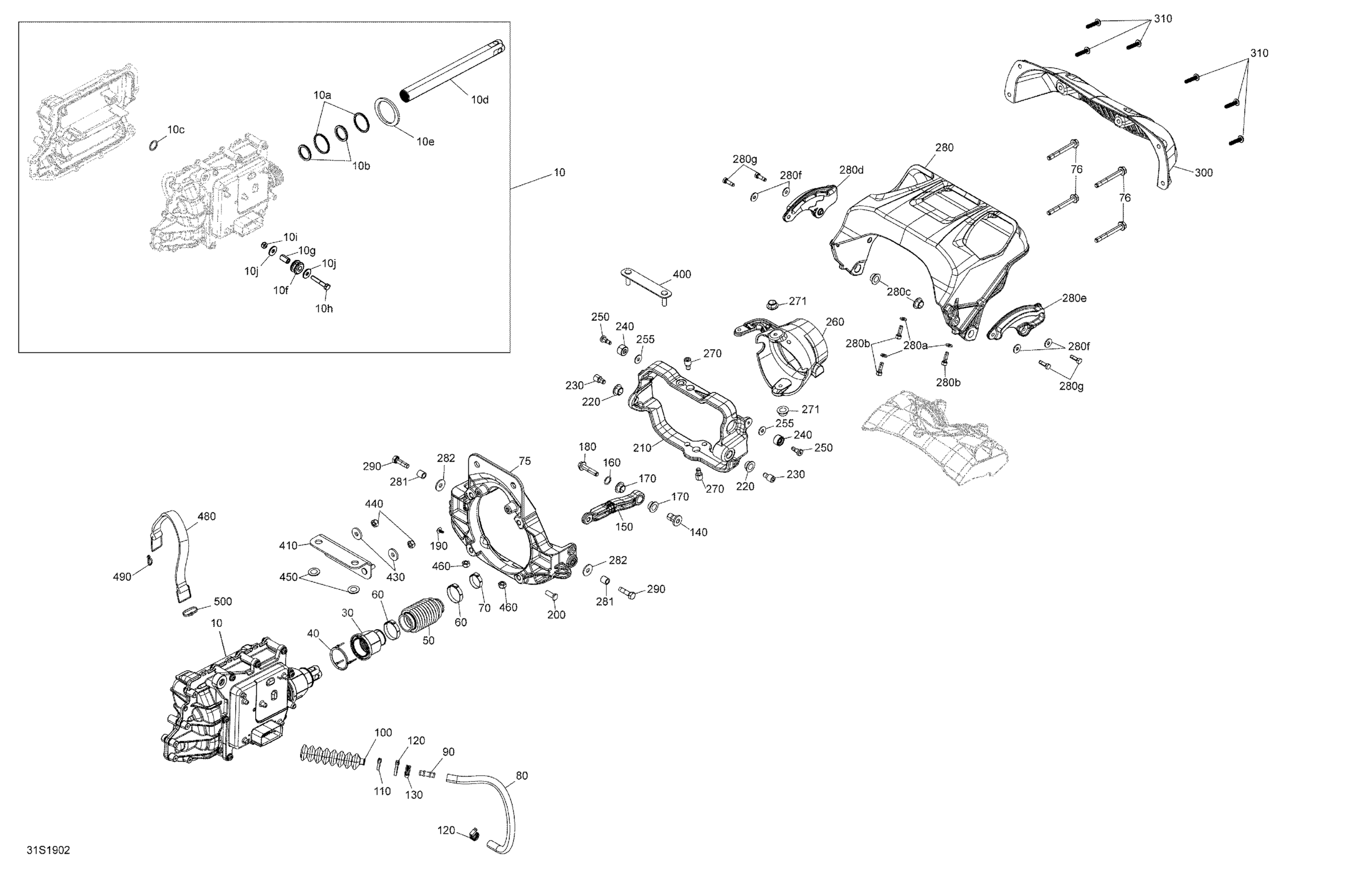

Sea-doo GTI 130, 2019 Reverse Diagram

#

Description
Price

10>10j

Actuator | Includes 10 to 10j

278003606

$643.47

10a

O-Ring

279000108

$4.89

10b

O-Ring

293300107

$0.83

10c

O-Ring

293300187

$3.20

10d

Output Shaft

278003027

$44.17

10e

Gasket

268000208

$12.52

10f

Grommet

293720104

$4.15

10g

Spacer

271001020

$9.23

10h

Hex. Screw M6 X 35

207063560

$1.85

10i

Elastic Stop Nut M6, Brass

232561200

$3.51

10j

Flat Washer M6, Stainless

234062600

$0.64

30

IBR Nut

268000308

$8.57

40

Rubber Gasket

277001977

$1.76

50

Boot

268000186

$3.59

60

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

70

Crimp Clamp

293650099

$4.60

75

Bracket

268000266

$71.47

76

Screw-Hex.Flange DIN.6921 S.Grip

250000835

$3.25

80

Was 509000407 Hose 8 mm

219704420

$40.27

90

Fitting-Straig

293710157

$5.36

100

Inner Boot This part replaces 268000345.

268000211

$8.14

110

Tie Wrap 142 mm

293750002

$0.88

120

Tridon Gear Clamp

293650171

$2.46

130

Tie Wrap 142 mm

293750002

$0.88

140

Bushing

268000269

$12.61

150

Linkage Arm

268000256

$17.52

160

O-Ring

293300187

$3.20

170

Venturi Bushing

293900007

$3.71

180

Hex. Flange Screw Din.6921 S.Grip

250000963

$3.25

190

Hexalob Screw M4 X 10

250000565

$1.74

200

Shoulder Pin

268000309

$14.92

210

Trimming Ring

268000247

$74.72

220

Venturi Bushing

293900007

$3.71

230

Screw Socket S.Grip

250000837

$6.59

240

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

250

Screw-Socket Shoulder M8X8

250000775

$6.57

255

Flat Washer M6, Stainless

234062600

$0.64

260

Black Jet Pump Nozzle

267000732

$96.89

270

Screw Socket S.Grip

250000837

$6.59

271

Venturi Bushing

293900007

$3.71

280>280g

Gate Reverse Ass'y | Includes 280 TO 280i

268000296

$124.58

280a

Stainless Flat Washer M6

234061600

$0.25

280b

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

280c

Venturi Bushing

293900007

$3.71

280d

Not Available As Spare Part - Friction Washer

Unavailable

280e

Not Available As Spare Part - Friction Washer

Unavailable

280f

Flat Washer M6, Stainless

234062600

$0.64

280g

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

281

Spacer

271001039

$11.78

282

Flat Washer 8 mm, Stainless

234082600

$1.98

290

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

300

Guard

268000162

$23.37

310

Screw Torx M6.81 X 30

250001007

$1.61

400

Ass'y Bracket

268000271

$9.23

410

Reverse Bracket

268000304

$13.62

420

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

430

Flat Washer

279000336

$8.35

440

Hex. Elastic Nut M8 Brass

232581200

$1.29

450

Flat Washer

279000336

$8.35

460

Hex. Elastic Nut M8 Brass

232581200

$1.29

480

Fuel Tank Strap

293850095

$14.27

490

Tie Wrap 94 mm | 4X4

293750001

$0.83

500

Tie Wrap 142 mm

293750002

$0.88
