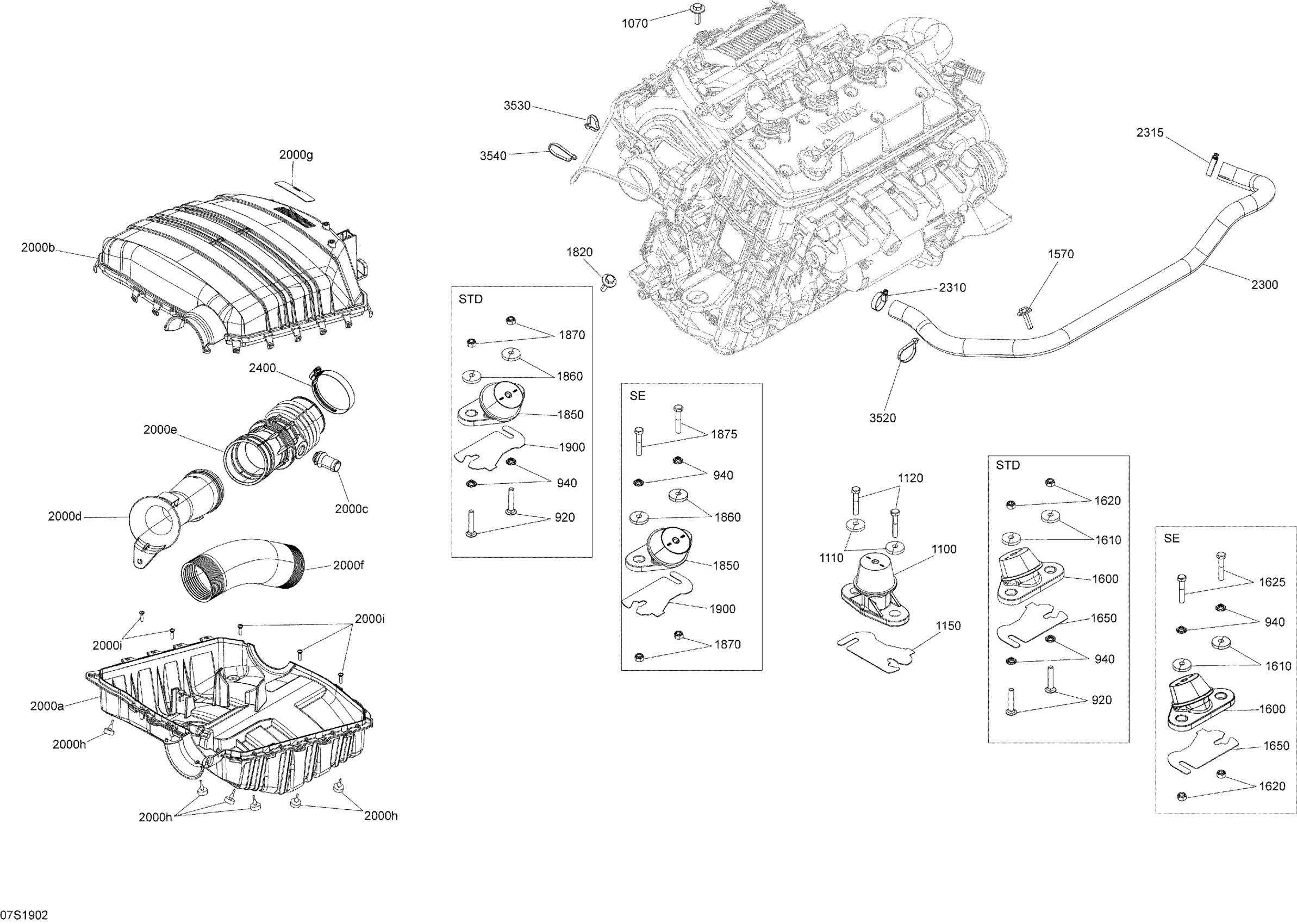

Sea-doo GTI 130, 2019 Engine Diagram

#

Description
Price

920

Carriage Bolt M8 X 45 | Package STD

207784560

$3.73

940

Push Nut

270001008

$0.88

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

1100

Engine Support Ass'y

270001096

$88.78

1110

Cone Washer

250200018

$5.33

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1150

Shim 1.3 mm

270000762

$10.37

1150

Shim 1.3 mm

270000762

$10.37

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

1600

Engine Support Ass'y

270001081

$96.99

1610

Cone Washer

250200018

$5.33

1620

Hex. Elastic Nut M8 Brass

232581200

$1.48

1625

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1650

Shim 1.3 mm

270000762

$10.37

1650

Shim 1.3 mm

270000762

$10.37

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

1850

Engine Support Ass'y

270001081

$96.99

1860

Cone Washer

250200018

$5.33

1870

Hex. Elastic Nut M8 Brass

232581200

$1.48

1875

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1900

Shim 1.3 mm

270000762

$10.37

1900

Shim 1.3 mm

270000762

$10.37

2000a

Airbox Base

273000354

$51.46

2000b

Airbox Cover

273000371

$65.64

2000c

Breather Valve

273000234

$12.21

2000d

Intake Hose

273000358

$20.12

2000e

Hose Connector

273000292

$46.99

2000f

Air Silencer Hose

273000290

$20.12

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.15

2000i

Flange Torx Screw K40 X 16

250000287

$2.00

2300

Formed Hose

270000949

$42.51

2310

Gear Clamp

293650284

$4.15

2315

Gear Clamp

293650284

$4.15

3520

Tie Wrap 368 mm

293750008

$0.97

3530

Tie-Rap 180 mm

414115200

$0.10

3540

Tie-Rap 180 mm

414115200

$0.10
