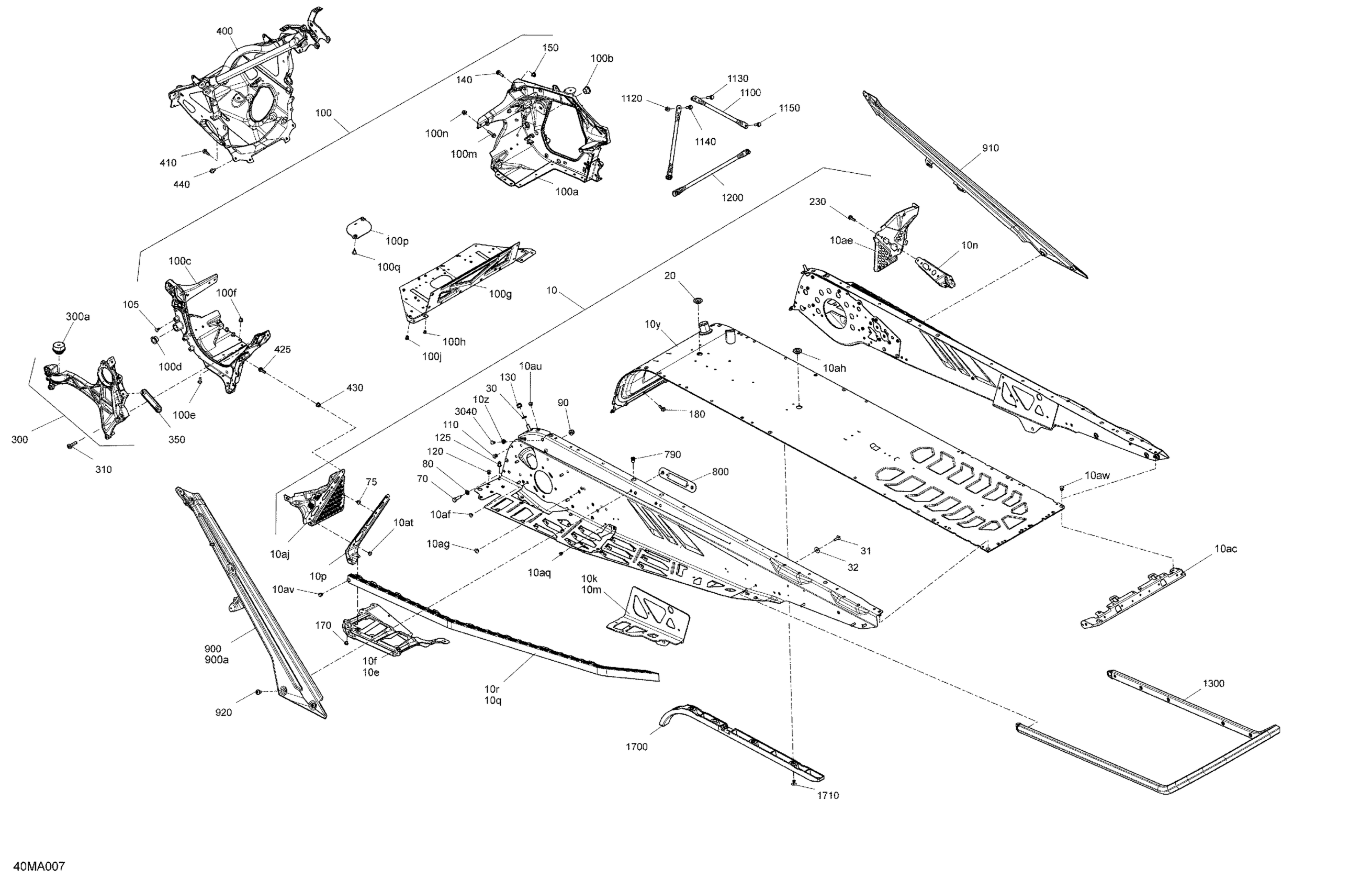

Ski-Doo GRAND TOURING 600 ACE - 2021 Frame - System - Sport Diagram

#

Description
Price

10

Chassis Tunnel Module 137" | Includes 10 to 10as

415130536

$3,069.20

10e

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10f

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10k

RH Suspension Bracket

518330200

$77.66

10m

LH Suspension Bracket

518330201

$77.66

10n

Stirrup Reinforcement

518331253

$18.43

10p

Deep Black, LH Chasssis Reinforcement

518331560

$18.43

10q

RH Roller

518328451

$180.74

10r

LH Roller

518328452

$180.74

10y

Radiator Tunnel 137 Ass'y

518334488

$703.05

10z

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10ac

Rear Cap

518328990

$20.74

10ae

RH Footrest

518330691

$20.74

10af

Full Moon Dart 8 mm

293730041

$2.12

10ag

Full Moon Dart 10 mm

293730059

$4.42

10ah

Black, Plug

293730052

$6.37

10aj

LH Foot Protector

518331559

$23.82

10aq

Rivet Avibulb 3/16

293150203

$0.29

10at

Hemlock Rivet, 6.5 mm

293150096

$3.17

10au

Hemlock Rivet, 6.5 mm

293150119

$4.00

10av

Hemlock Rivet, 6.4 mm

293150174

$6.43

10aw

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

30

Flat Washer 8 mm

234081410

$0.69

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

32

Flat Washer

224061201

$1.11

70

Hex Screw M8 X 30

250000942

$0.92

75

Hemlock Rivet, 6.5 mm

293150096

$3.17

80

Flat Washer 8 mm

234081410

$0.69

90

Hex. Flange Elastic Nut M8

233281414

$1.14

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518332686

$570.74

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$186.89

100b

Leg Bushing

505072690

$5.92

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

100d

Leg Bushing

505072690

$5.92

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

100f

Collar Huck Magna-Grip 6.4

293150149

$0.37

100g

Bottom Plate

518332715

$34.58

100h

Rivet Avibulb 3/16

293150203

$0.29

100j

Insert M5 X 0.8

293450268

$1.95

100m

Hex. Flange Screw M6 X 25

250000945

$3.61

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

100p

Oil Plate

518329454

$15.34

100q

Torx Truss Screw M6 X 12

250000767

$1.66

105

Dart

293730079

$1.92

110

Ornit Rivet 6,5 X 14.5

293150266

$1.94

120

Hemlock Rivet, 6.4 mm

293150174

$6.43

125

Hemlock Rivet 6.5 mm

293150120

$7.23

130

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Flange Screw M6 X 20

207662046

$1.74

150

Elastic Flange Nut M6 X 1.0

233261416

$1.74

170

Insert M5 - 0.8

293450267

$4.22

180

Hex. Flange Screw M6 X 16

207661646

$1.00

230

Hex. Flange Screw M6 X 20

207562056

$1.74

300

LH Side Member Ass'y | Includes 300 to 300b

518333691

$181.51

300a

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

$0.65

350

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$9.69

400

Chassis Suspension Module

518334461

$653.05

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

440

Ornit Rivet 6,5 X 14.5

293150266

$1.94

790

Insert

293450278

$4.09

800

Member Fixation Plate

518329480

$10.03

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$108.43

900a

RH Rear Diagonal Cross Member

518330885

Unavailable

910

Black, RH Member Ass'y | Black

518330880

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1100

Upper Colomn Support

518329370

$20.74

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1130

Hex. Flange Screw M6 X 25

207662556

$3.61

1140

Hex. Flange Screw M6 X 20

207662046

$1.74

1150

Hex. Flange Screw M6 X 20

207562056

$1.74

1200

Center Column Support

518329755

$3.46

1300

Rear Bumper | Includes 1300 to 1300c

518330033

$109.20

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92
