Description

Price

10a

Front Seat Base

510004775

$88.43

10b

Seat Cover

510005181

$207.66

10c

Front Seat Foam

510004777

$207.66

10d

Rubber Stopper

708000759

$3.61

20a

Seat Base Ass'y | Includes 20a to 20a3

510005535

$429.99

20a1

Foam Support

510004423

$36.12

20a2

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

20a3

Pop Rivet 3/16"

390402300

$0.75

20b

Rear Seat Cover

510005399

$216.89

20c

Rear Seat Foam

510004791

$276.89

20d

Black, Dart

414644300

$0.78

20e

Backrest Foam

510004782

$129.99

20f

Backrest Cover | Not Shown

510005309

$166.12

20g

Upper Backrest Axle

510004377

$45.35

20h

Washer

510004379

$8.95

20j

Rubber Shim

510004378

$8.62

20k

RH Arm, Black

510005539

$27.66

20m

LH Arm, Black

510005538

$27.66

20n

Hex Torx Truss M8 X30

250000745

$3.05

20p

Hex Torx Truss M8 X30

250000745

$3.05

20q

Flat Washer 8 mm

250200128

$1.74

20r

Tie Wrap 368 mm

293750008

$0.85

20s

Seat Harness

515176766

$38.43

20t

Tie-Rap 180 mm

414115200

$0.09

20u

Housing Support

515175283

$8.43

20v

Spacer

271000558

$8.38

140a

RH Handle Ass'y | Includes 140a to 140a9

510006708

$226.12

140a1

Torx Truss Screw M6 X 16

250000721

$1.39

140a2

Nut Welded, M6

293100003

$6.32

140a3

Handle Grip

510004449

$10.65

140a4

RH Air Deflector

510005009

$27.66

140a5

Heated Element

515176999

$68.43

140a6

Was 515175506 Tubing

219704426

$136.12

140a7

Screw M4 X 16

250000725

$2.87

140a8

Reinforcement Handle

510005814

$18.43

140a9

Male Housing, 3 Circuits

515175494

$15.35

150a

LH Handle Ass'y | Includes 150a to 150a16

510006709

$226.12

150a1

Torx Truss Screw M6 X 16

250000721

$1.39

150a2

Nut Welded, M6

293100003

$6.32

150a3

Handle Grip

510004449

$10.65

150a4

LH Air Deflector

510005010

$27.66

150a5

Heated Element

515176999

$68.43

150a6

Was 515175506 Tubing

219704426

$136.12

150a7

Switch Housing

510005036

$17.66

150a8

Torx Screw K50 X 16

250000720

$1.39

150a9

Screw M4 X 16

250000725

$2.87

150a10

Rocker Switch

510004413

$8.57

150a11

Switch Protector

510004414

$7.37

150a12

Handle Harness

515176697

$28.43

150a13

Reinforcement Handle

510005814

$18.43

150a14

Connector Decal

516003937

$16.12

150a15

Heated Handle Decal

516003816

$10.35

150a16

Male Connector

515176033

$15.35

155

Passenger Handle Trim

510006602

$11.71

160

Hex Torx Truss M8 X30

250000745

$3.05

500

Flat Washer

224061201

$1.11

510

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

520

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

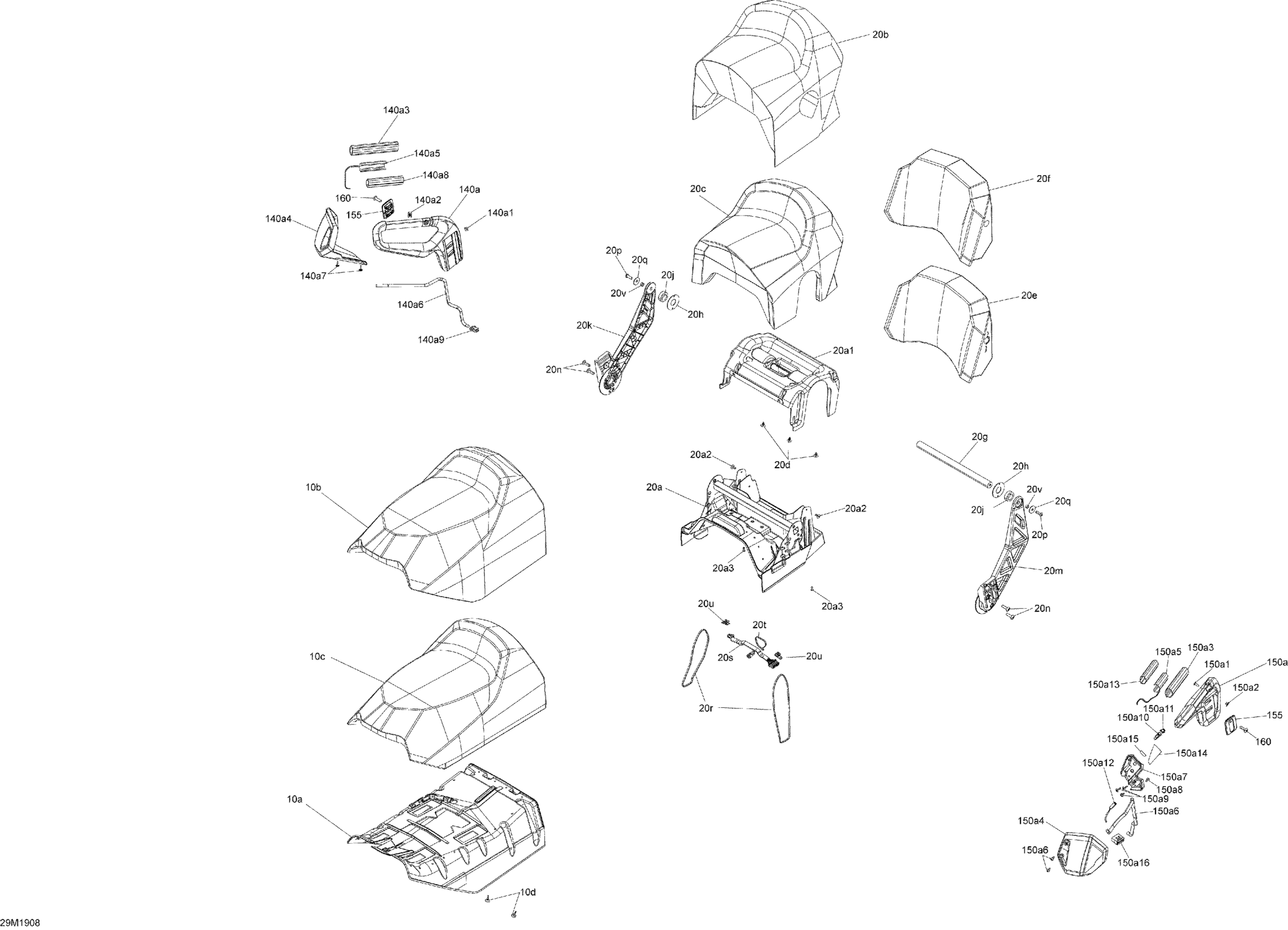

Ski-Doo GRAND TOURING 600 ACE, 2019 Seat Diagram

Front Seat Base

Seat Cover

Front Seat Foam

Rubber Stopper

Seat Base Ass'y | Includes 20a to 20a3

Foam Support

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16"

Rear Seat Cover

Rear Seat Foam

Black, Dart

Backrest Foam

Backrest Cover | Not Shown

Upper Backrest Axle

Washer

Rubber Shim

RH Arm, Black

LH Arm, Black

Hex Torx Truss M8 X30

Hex Torx Truss M8 X30

Flat Washer 8 mm

Tie Wrap 368 mm

Seat Harness

Tie-Rap 180 mm

Housing Support

Spacer

RH Handle Ass'y | Includes 140a to 140a9

Torx Truss Screw M6 X 16

Nut Welded, M6

Handle Grip

RH Air Deflector

Heated Element

Was 515175506 Tubing

Screw M4 X 16

Reinforcement Handle

Male Housing, 3 Circuits

LH Handle Ass'y | Includes 150a to 150a16

Torx Truss Screw M6 X 16

Nut Welded, M6

Handle Grip

LH Air Deflector

Heated Element

Was 515175506 Tubing

Switch Housing

Torx Screw K50 X 16

Screw M4 X 16

Rocker Switch

Switch Protector

Handle Harness

Reinforcement Handle

Connector Decal

Heated Handle Decal

Male Connector

Passenger Handle Trim

Hex Torx Truss M8 X30

Flat Washer

Hex. Screw M6 X 16, Scotch Grip | Europe

Hex. Flange Screw M6 X 30, Scotch Grip
