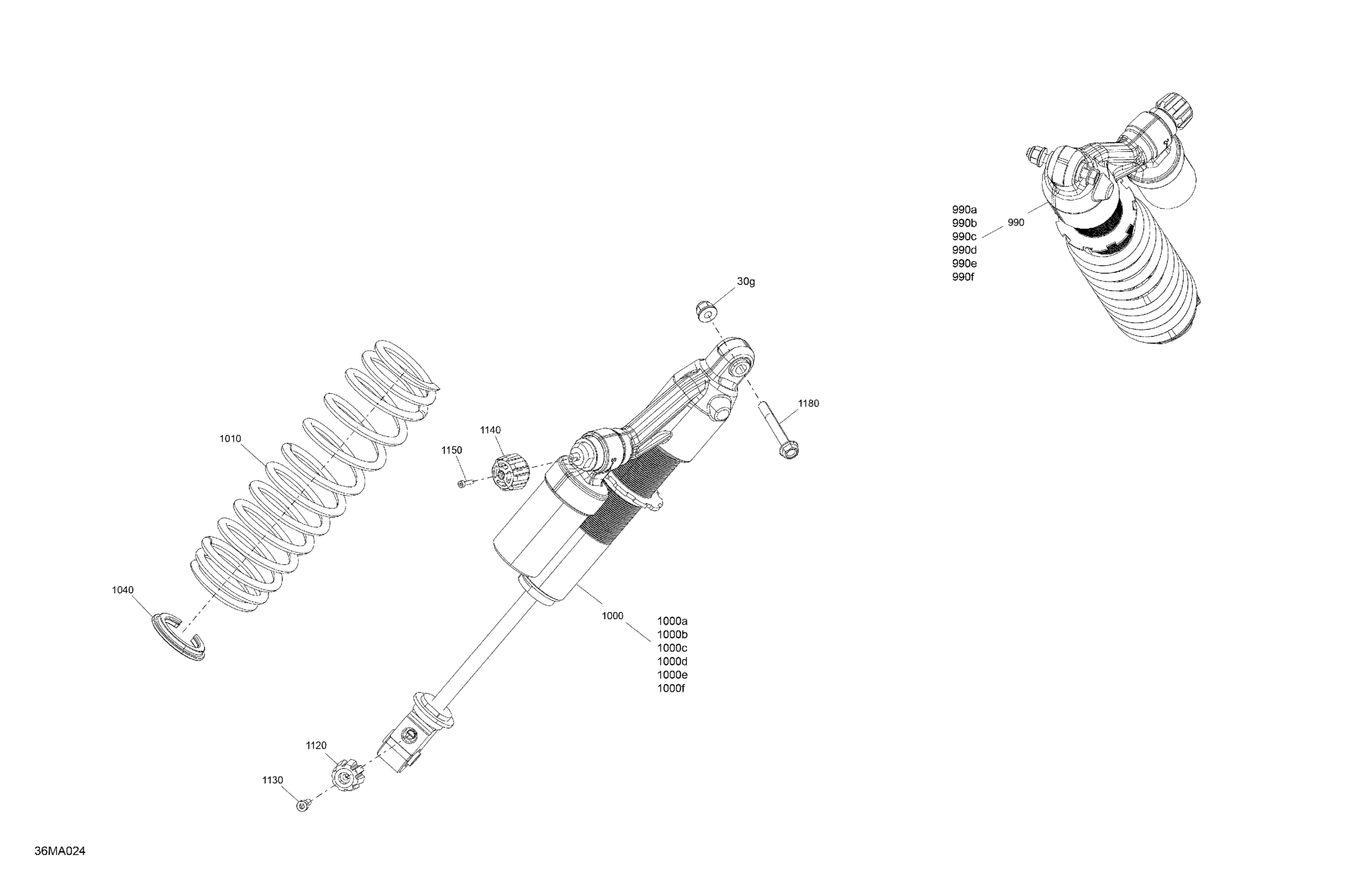

Ski-Doo 002 - FREERIDE 154 850 E-TEC - North America, 2021 05- Suspension - Front Shocks Diagram

Description

Price

990

RH Front Shock | Included 990 to 990f

505074187

$877.49

990a

O-Ring

415093807

$35.99

990b

Piston Ring | Not Shown

415093806

$16.86

990c

O-Ring

505070400

$4.54

990d

Screw | Not Shown

505070399

$4.12

990e

O-Ring

415093804

$4.54

990f

Base Valve

415130165

$78.99

1000

LH Front Shock | Included 1000 to 1000f

505074188

$877.49

1000a

O-Ring

415093807

$35.99

1000b

Piston Ring | Not Shown

415093806

$16.86

1000c

O-Ring

505070400

$4.54

1000d

Screw | Not Shown

505070399

$4.12

1000e

O-Ring

415093804

$4.54

1000f

Base Valve

415130165

$78.99

1010

Deep Black, Spring

505074709

$58.49

1040

Spring Stopper

503194270

$19.99

1120

Adjustment Knob

505072753

$2.19

1130

Allen Screw M3 X 0.5 X 10

250000644

$2.11

1140

Shock Adjuster Knob

503193033

$10.99

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.11

1180

Hex. Flange Screw M8 X 58

250000824

$2.11

30g

Elastic Flange Nut M8

233281466

$1.01
