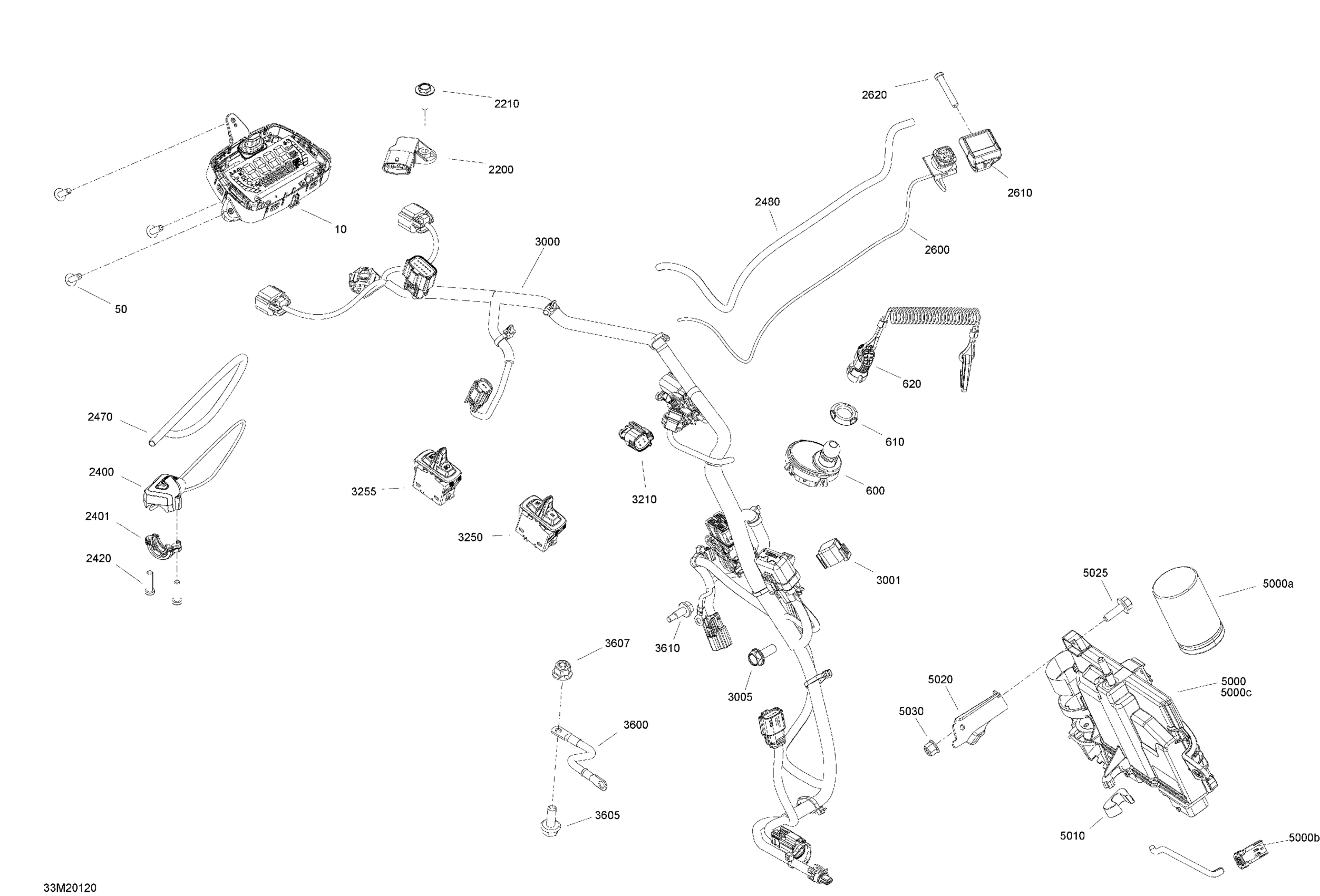

Ski-Doo FREERIDE 154 850 E-TEC - Europe, 2020 Electric - System Diagram

#

Description
Price

10

Multifunction Gauge Compact Mono

515178810

$569.99

50

Torx Truss Screw K40 X 12

250000577

$2.11

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Screw M4 X 16

250000725

$3.49

2400

Ignition Switch

515178857

$69.99

2401

Clamp

515177952

$8.79

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3000

Chassis Wiring Harness

515178550

$309.99

3001

Diagnostic Cap

515178435

$8.79

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3210

4 Circuits Female Housing

515178177

$12.18

3250

Switch Rocker Hand Warmer

515178462

$20.49

3255

Switch Rocker Headlignt

515178463

$20.49

3600

Ground Wire

515178248

$24.99

3605

Hex. Flange Screw M6 X 16

207661644

$0.74

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

5000

Igniton Module | E-TEC SHOT engine starter

512061190

$589.99

5000a

Capacitor

515177272

$90.99

5000b

Housing 6 circuits | E-TEC SHOT engine starter

515178385

$13.24

5000c

Male FCI Terminal | E-TEC SHOT engine starter

278003871

$6.29

5010

Rubber Stopper

515178430

$2.11

5020

Module Support

515178159

$4.44

5025

Hex. Flange Screw M5 X 16

207651646

$2.11

5030

Flange Elastic Nut M5

233251434

$2.00
