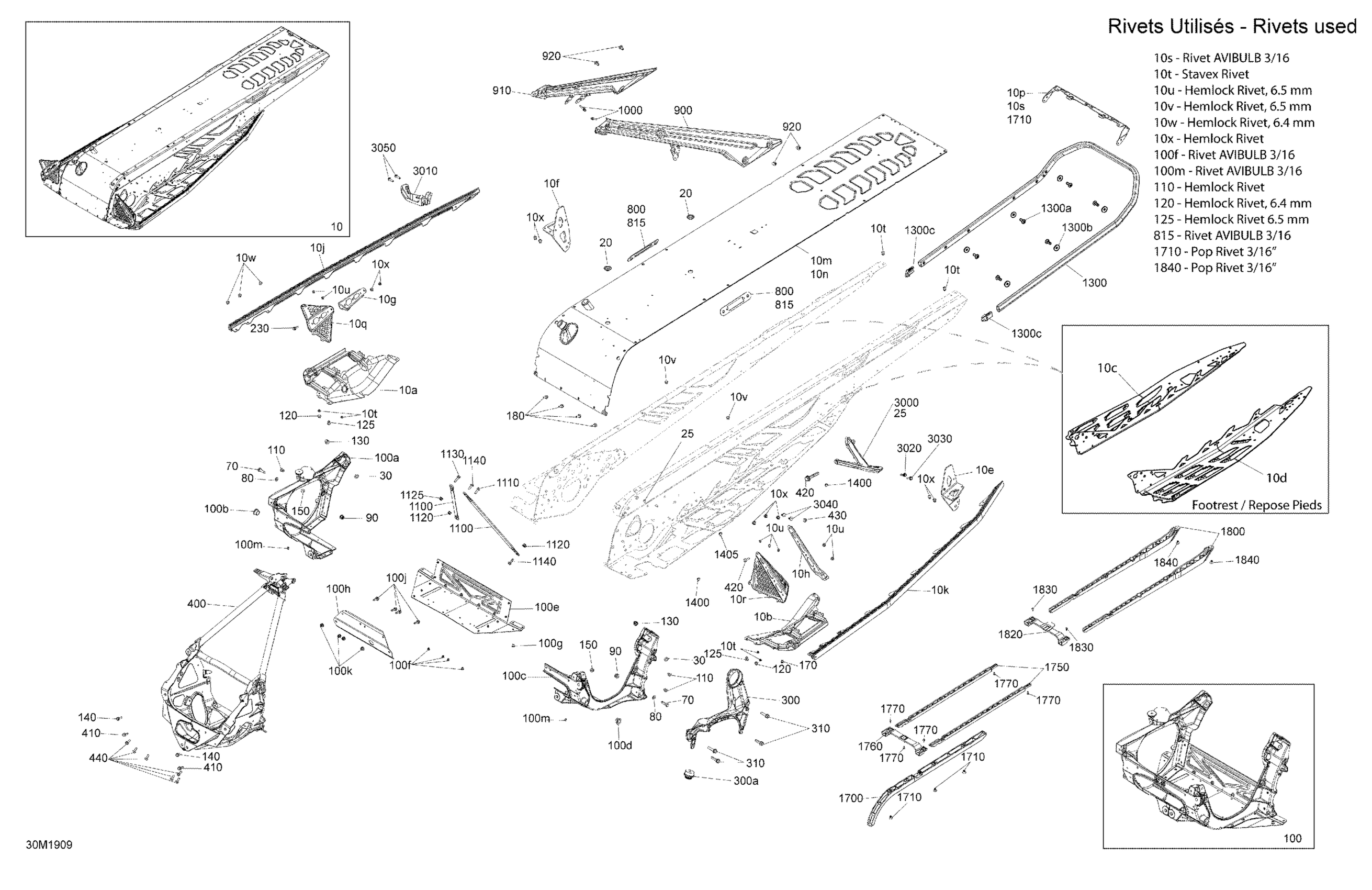

Ski-Doo FREERIDE 146 850 E-TEC, 2019 Frame - Package 146 Diagram

TEAL MODULE CHASSIS TUNNEL 146 INCH - Call your local BRP dealership | Includes 10 to 10x

415130246

Unavailable

Deep Black, RH Footrest Reinforcement

518332803

$79.97

Deep Black, LH Footrest Reinforcement

518332802

$16.89

RH Footrest

518329619

$39.97

LH Footrest

518331549

$39.97

LH Rear Suspension Support

518330682

$43.05

RH Rear Suspension Support

518334395

$96.12

RH Footrest Reinforcement

518330072

$18.43

Deep Black, LH Chasssis Reinforcement

518331560

$18.43

RH Roller

518329023

$180.74

LH Roller

518329024

$180.74

Radiator Tunnel 146

518334489

$692.28

Clinch Stud M6 X 20

250300027

$1.92

Rear Cap

518328990

$20.74

RH Footrest

518328460

$38.43

LH Footrest

518333007

$38.43

Rivet Avibulb 3/16

293150203

$0.29

Stavex Rivet

293150144

$0.77

Hemlock Rivet, 6.5 mm

293150096

$3.17

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Washer

506151252

$3.11

Hex Screw M8 X 30

250000942

$0.92

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module Ass'y | Includes 100 to 100m

518330635

$579.99

RH Member Ass'y | Includes 100a to 100b

518330545

$208.43

Leg Cushion

505073317

$5.92

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Cushion

505073317

$5.92

Bottom Plate

518331661

$34.58

Rivet Avibulb 3/16

293150203

$0.29

Insert M5 X 0.8

293450268

$1.95

Front Member

518330100

$56.12

Hex. Flange Screw M6 X 20

207662046

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Rivet Avibulb 3/16

293150203

$0.29

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Hemlock Rivet, 6.4 mm

293150174

$6.43

Hemlock Rivet 6.5 mm

293150120

$7.23

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Insert M5 X 0.8

293450268

$1.95

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

Vibration Damper

512061516

$57.66

Screw-Pan HD.Torx M8X30

250001060

$0.65

Chassis Suspension Module

518334459

$653.05

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 16

207661646

$1.00

Member Fixation Plate

518329480

$10.03

LH Member Fixation Plate

518330299

$16.12

RH Under Chassis Reinforcement

518331745

$16.89

Rivet Avibulb 3/16

293150203

$0.29

Nordic Teal, LH Rear Diag Cross Member | Model Nordic Teal

518331050

$108.43

Nordic Teal, RH Rear Diag Cross Member | Model Nordic Teal

518331051

$108.43

Pan Head Torx Screw M8 X 12

250000887

$1.56

Stud M5 X 20

250300629

$1.92

Upper Colomn Support

518329974

$20.74

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Screw M6 X 20

207662044

$1.66

Rear Bumper 146

518329553

$165.35

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11

Bumper Cap

520001629

$0.95

Black, Dart 8 mm

293730047

$2.14

Black, Dart 10 mm

293730060

$4.42

Front Protector

518329982

$17.66

Pop Rivet 3/16”

293150108

$1.23

Rear Protector

518329994

$7.55

Front Protective Structure

518333935

$3.40

Torx Truss Screw K40 X 12

250000577

$1.74

Rear Protector

518329979

$7.55

Support

520001545

$3.40

Torx Truss Screw K40 X 12

250000577

$1.74

Pop Rivet 3/16”

293150108

$1.23

Black Toe-hold

518330358

$23.05

Toe Hold

518329134

$16.12

Hex. Flange Screw M6 X 25

250000793

$1.74

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Dart

293730079

$1.92

Hex. Flange Forming Screw M6 X 25

210262550

$1.64
