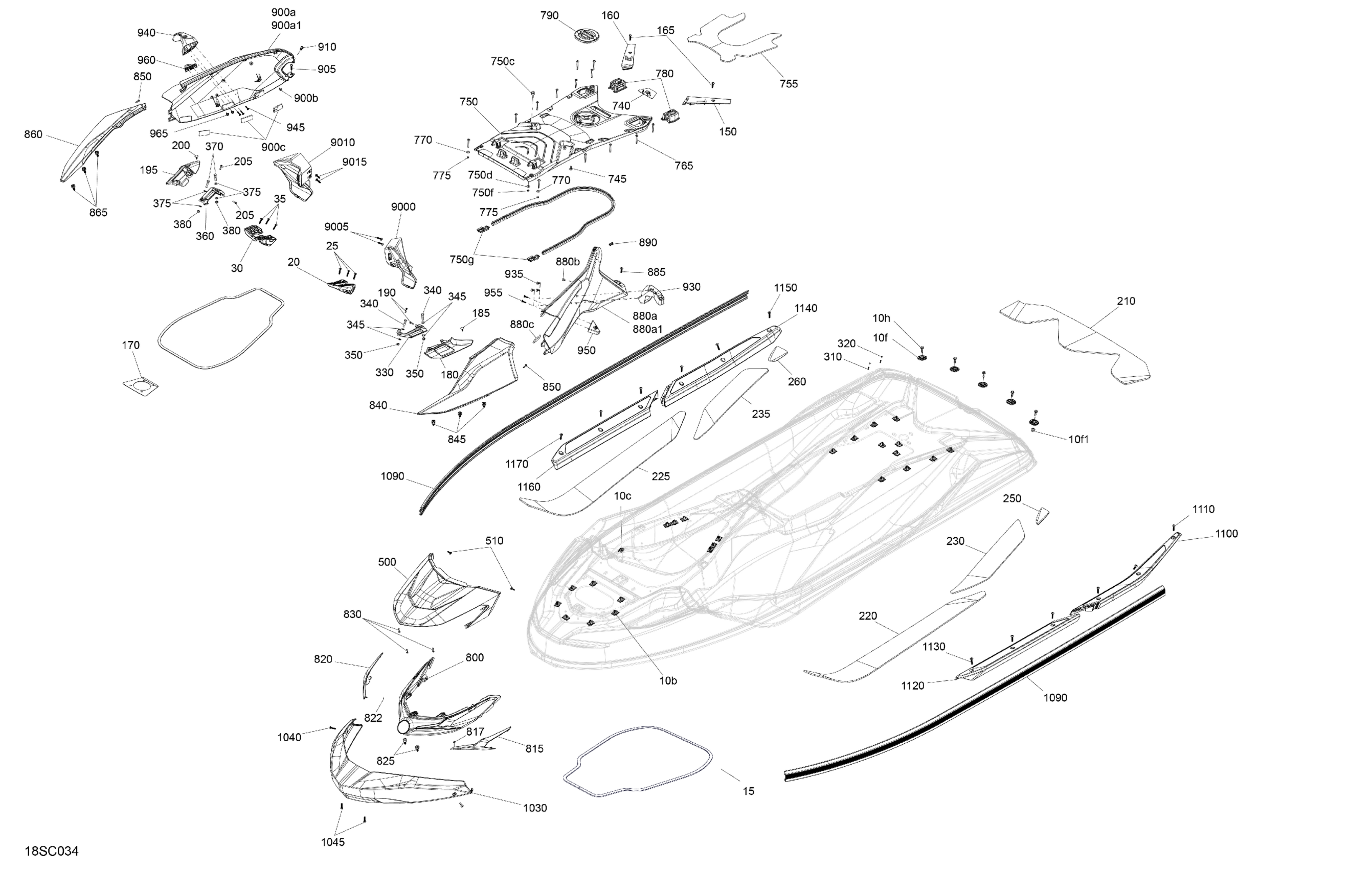

Sea-doo FISH PRO SPORT 170, 2023 Body - System Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

10c

Anchorage Tie Wrap

293750109

$0.99

10f

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

10f1

Hex. Flange Nut M8

233181600

$0.86

10h

Hex. Flange Screw M8 X 25

207682544

$0.90

15

Gasket

293250401

$8.80

20

LH Support

291004714

$7.15

25

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

30

RH Support

291004715

$7.87

35

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

150

LH Shim

291005176

$13.52

160

RH Shim

291005177

$11.78

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

170

Gasket

293250451

$19.47

180

LH Shell Cleat

291004661

$7.15

185

Black, Dart

293730011

$0.79

190

Hex. Screw 10-14 X 7/8”

211000023

$2.91

195

RH Shell Cleat

291004719

$7.15

200

Black, Dart

293730011

$0.79

205

Hex. Screw 10-14 X 7/8”

211000023

$2.91

210

Deck Anti Slip Mat

291005817

$42.22

220

LH Front Anti Slip Mat

291005351

$27.27

225

RH Front Anti Slip Mat

291005350

$27.27

230

LH Rear Anti Slip Mat

291005353

$13.62

235

RH Rear Anti Slip Mat

291005352

$13.62

250

LH Anti Slip Mat

291005883

$4.42

260

RH Anti Slip Mat

291005884

$4.42

310

Rivet 1/8"

293150016

$0.29

320

Black, Snap Cap

293000014

$0.85

330

LH Cleat

291004559

$6.37

340

Hex. Screw M8 X 35

207083560

$1.40

345

Stainless, Flat Washer 8 mm

234081600

$0.46

350

Hex. Elastic Nut M8 Brass

232581200

$1.29

360

RH Cleat

291004720

$6.37

370

Hex. Screw M8 X 35

207083560

$1.40

375

Stainless, Flat Washer 8 mm

234081600

$0.46

380

Hex. Elastic Nut M8 Brass

232581200

$1.29

500

Dusty Navy, Hood

291005549

$85.77

510

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

740

Hose Protector

291004941

$4.22

745

Black, Dart

293730011

$0.79

750

Acces Cover Ass'y | Includes 750 to 750g

291005876

$172.22

750c

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

750d

Flat Washer M6, Stainless

234062600

$0.64

750f

Elastic Stop Nut M6, Brass

232561200

$3.51

750g

Seal

291004717

$9.04

755

Deep Black, Rear Mat

291005861

$31.82

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

770

Flat Washer M6, Stainless

234062600

$0.64

775

Elastic Stop Nut M6, Brass

232561200

$3.51

780

Linq Bases Kit

295100858

$21.42

790

Access Cap Ass'y

291004481

$7.15

800

Front Hood Grille

291005915

$27.92

815

Gulfstream Blue, LH Trim

291005970

$22.07

817

Push Nut | Not shown

211100002

$0.83

820

Gulfstream Blue, RH Trim

291005971

$22.07

822

Push Nut | Not shown

211100002

$0.83

825

Dard

293730071

$0.90

830

Hex. Screw 10-14 X 7/8”

211000023

$2.91

840

Flint Grey, Body Panel Front LH

291005041

$129.32

845

Dard

293730071

$0.90

850

Hex. Screw 10-14 X 7/8”

211000023

$2.91

860

Flint Grey, RH Front Body Panel

291005040

$129.32

865

Dard

293730071

$0.90

880a

Flint Grey, LH Central Body Panel

291005583

$148.48

880a1

Flint Frey, LH Central Body Panel

291005042

$148.48

880b

Rubber Bumper

293830005

$5.33

880c

Stopper

278003618

$0.70

885

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

890

Tuflok Plastic Rivet

293150230

$1.21

900a

Flint Grey, RH Central Body Panel

291005584

$148.48

900a1

Flint Frey, RH Central Body Panel

291005043

$148.48

900b

Rubber Bumper

293830005

$5.33

900c

Stopper

278003618

$0.70

905

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

910

Tuflok Plastic Rivet

293150230

$1.21

930

LH Rod Holder Top Adapter

295100948

$26.62

935

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

940

RH Rod Holder Top Adapter

295100949

$26.62

945

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

950

LH Rod Holder Top Adapter

295100948

$26.62

955

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

960

RH Rod Holder Top Adapter

295100949

$26.62

965

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

1030

Front Bumper

291004452

$62.37

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1090

Bumper 2775±25mm

291004468

$113.07

1100

Gulfstream Blue, LH Rear Footrest

291005561

$46.12

1110

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

1120

Gulfstream Blue, LH Front Footrest Ass'y

291005558

$46.12

1130

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

1140

Gulfstream Blue, RH Rear Footrest Ass'y

291005559

$46.12

1150

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

1160

Gulfstream Blue, RH Front Footrest Ass'y

291005560

$46.12

1170

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

9000

LH Side Grille

291004455

$7.29

9005

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

9010

RH Side Grille

291004456

$7.29

9015

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61
