Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

200

Starter Relay

278003012

$42.49

340

Battery 12 Volt 18AH

296000449

$92.28

340a

Battery Bolt Kit

250000282

$7.29

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1020

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1020a

Connector USB wih Cable

710005857

$41.49

1025

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1026

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1028

Hexagonal Cap Screw M6 X35

250000399

$4.44

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1580

Retainer

278003564

$8.39

1600

Full Size Multifunction Mono Gauge

278003432

$819.99

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

1735

Terminal_Dess One-Wire Open

515179239

Unavailable

1740

Safety Nut (DESS Switch)

278002963

$3.28

1750

Multiple Accessory Harness

278003684

$53.99

1755

Connectors Support

278003734

$2.96

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.59

3000

GPS Ass'y

278003998

$762.99

3010

Echosounder Power Supply Harness

278003673

$94.99

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

3040

Mount Dart

293730040

$1.04

3050

Transducer | Includes 3000 to 3000a

295100972

$349.99

3050a

Seal

292002447

$3.27

3060

Transducer Harness

278003683

$109.99

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

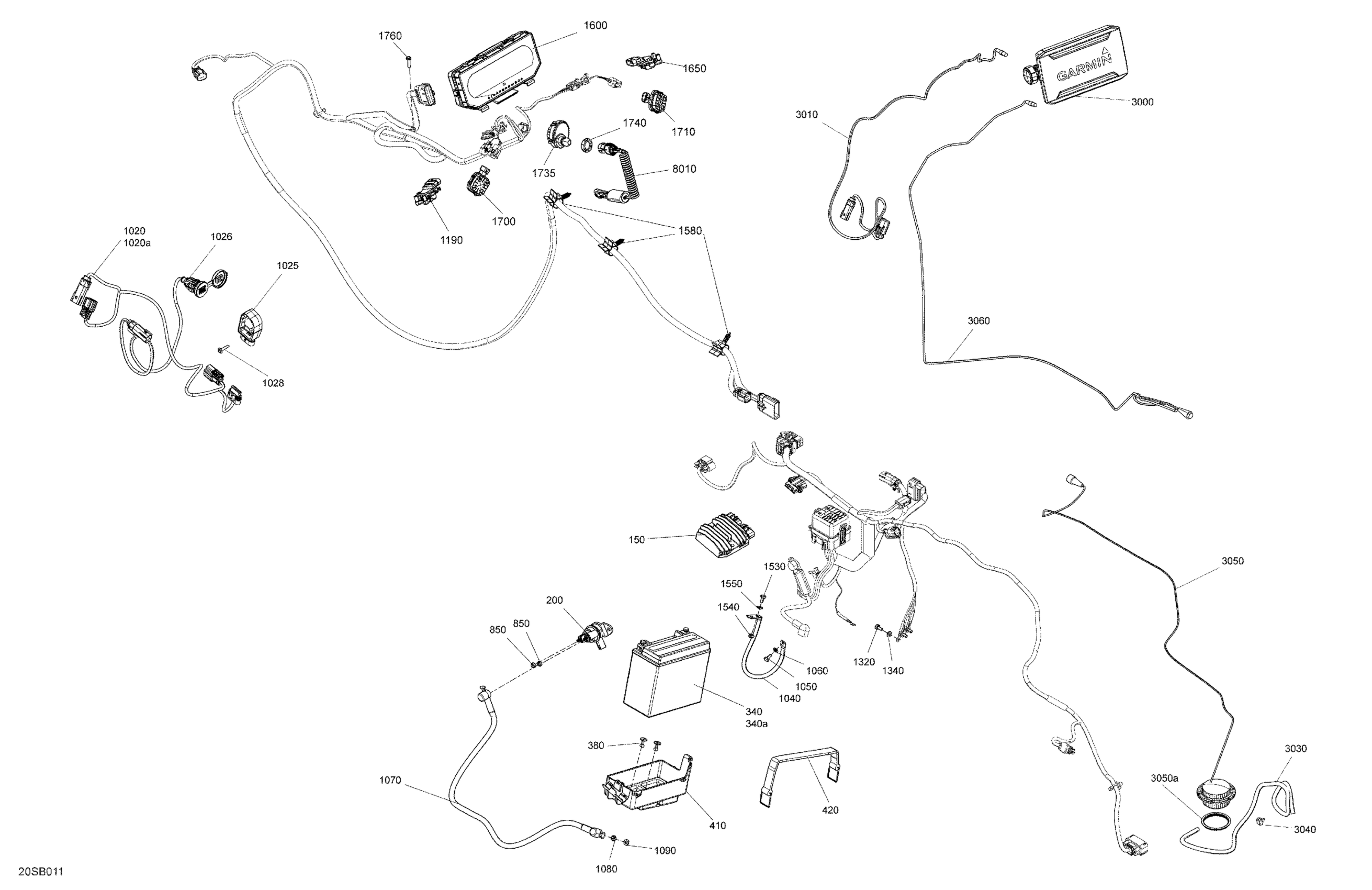

Sea-doo 002 - FISH PRO SPORT 170, 2022 08- Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

Starter Relay

Battery 12 Volt 18AH

Battery Bolt Kit

Pop Rivet 3/16"

Battery Support

Fuel Tank Strap

Elastic Stop Nut M6, Brass

USB Charger Cable Ass'y | Includes 1020 to 1020b

Connector USB wih Cable

USB Charger Cable Ass'y | Includes 1020 to 1020b

USB Charger Cable Ass'y | Includes 1020 to 1020b

Hexagonal Cap Screw M6 X35

Ground Battery Cable

Hex. Screw M6 X 12, Scotch Grip

Stainless Flat Washer M6

Starter Cable

Elastic Stop Nut M6, Brass

Stainless Flat Washer M6

LH Throttle Sensor

Hex. Screw M6 X 12, Scotch Grip

Stainless Flat Washer M6

Hex. Screw M6 X 12, Scotch Grip

Elastic Stop Nut M6, Brass

Stainless Flat Washer M6

Retainer

Full Size Multifunction Mono Gauge

Throttle Position Sensor

Switch

RH Switch Keypad

Terminal Dess One-Wire | Except Model Europe

Terminal_Dess One-Wire Open

Safety Nut (DESS Switch)

Multiple Accessory Harness

Connectors Support

Hex. Screw 10-14 X 7/8”

GPS Ass'y

Echosounder Power Supply Harness

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Mount Dart

Transducer | Includes 3000 to 3000a

Seal

Transducer Harness

Safety Lanyard Ass'y, RFID
