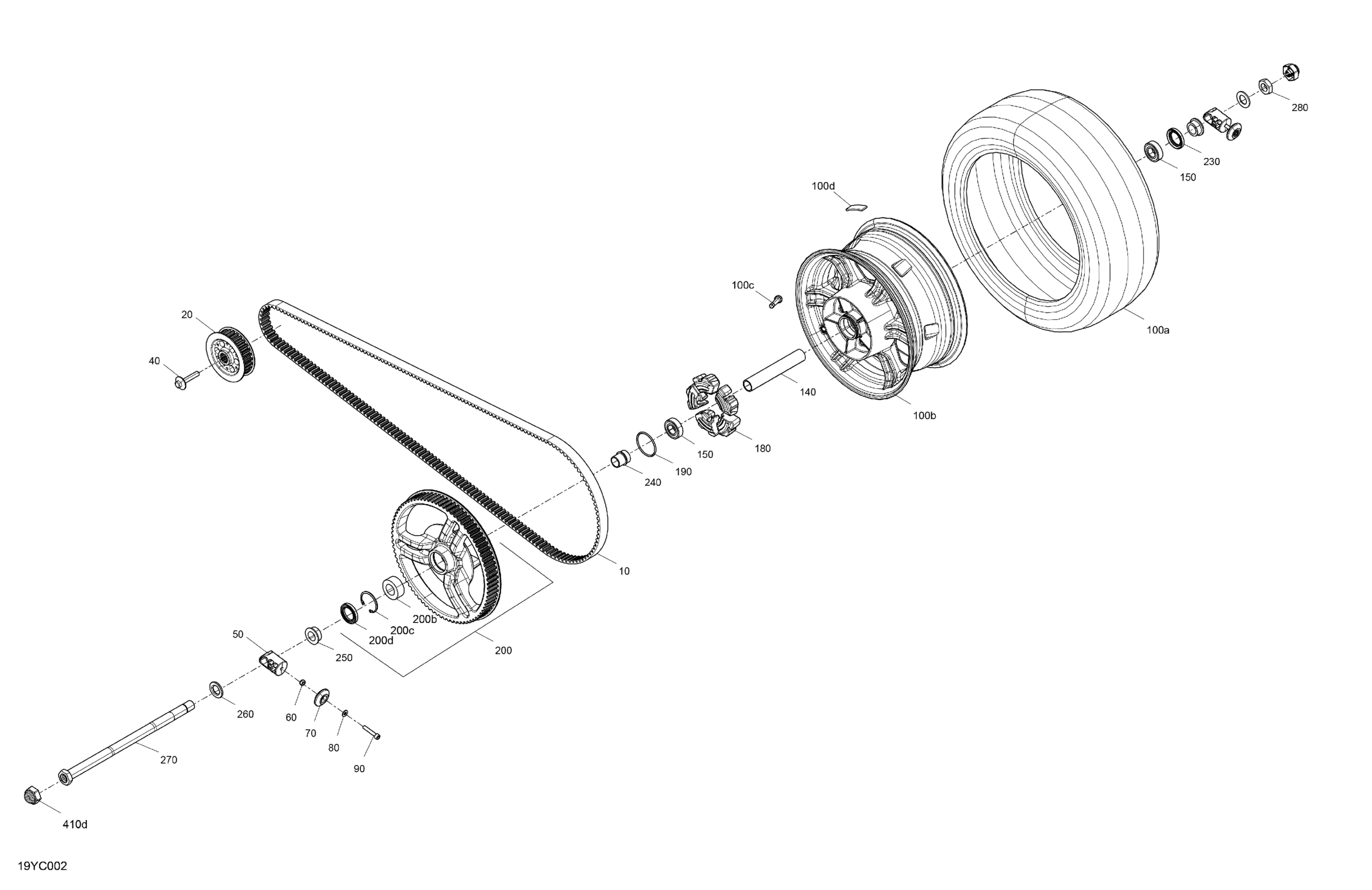

Can-Am F3 - Steel Black Metallic, Europe, 2023 Drive - Rear - Common Parts Diagram

Description

Price

Drive Belt

705501304

$409.99

Sprocket 28 Teeth

705503239

$159.99

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.22

Sliding Block

705502027

$17.59

Hex. Elastic Nut M8

250100141

$2.00

End Stop Adjusment

705502085

$25.99

Washer

503192494

$3.17

Socket Screw DIN.912

250000713

$2.85

100a

Rear Tire 225/50R15

705503310

$201.49

100b

Black, Rear Rim

705501992

$391.99

100c

Rim Valve With Cap

705400193

$8.69

100d

Balancing Weight

705503182

$4.69

140

Spacer Tube

705502093

$17.59

150

Ball Bearing

293350153

$12.65

180

Shock Absorber Bushing

705503473

$21.49

190

O-Ring

293300124

$3.38

200

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$499.99

200b

Double Bearing Ball

293350152

$30.99

200c

Circlip

293370053

$9.95

200d

Seal

293200094

$10.33

230

Seal

293200094

$10.33

240

Spacer

705500853

$23.49

250

Spacer

705501602

$19.49

260

Flat Washer

250200163

$3.49

270

Rear Axle Ass'y

705502024

$116.49

280

Hex. Jam Nut M24

250100170

$12.12

410d

Nut Cap

705502248

$8.15
