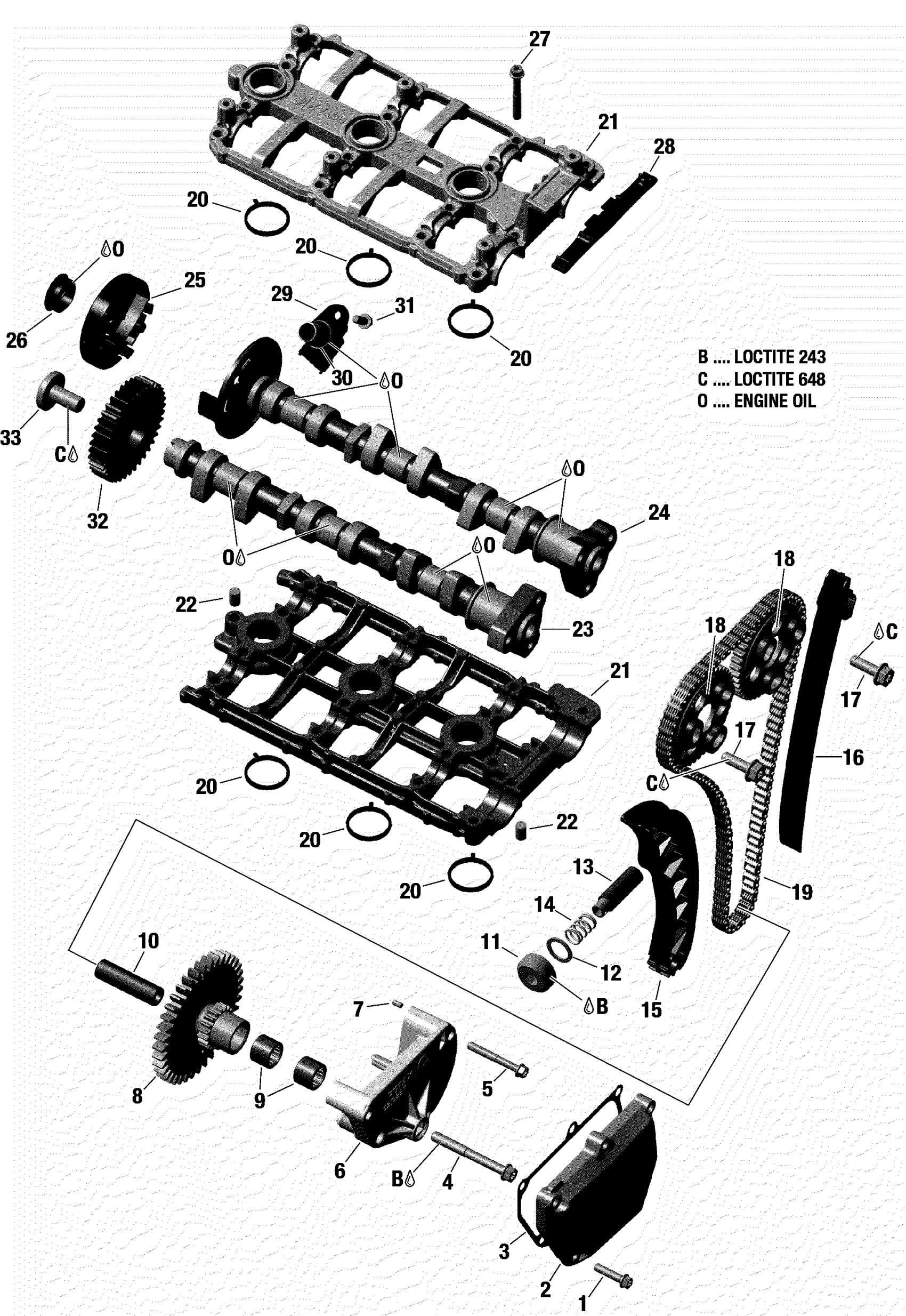

Can-Am F3 S SM6, 2021 Valve Train Diagram

#

Description
Price

1

Torx Flange Screw M6 X 25

420440234

$3.06

2

Valve Train Cover

420210863

$94.49

3

Gasket

420450040

$17.59

4

Torx Flange Screw M8 X 65

420440403

$2.19

5

Torx Flange Screw M6 X 45

420440324

$0.98

6

Bearing Bracket

420210868

$51.99

7

Needle Pin

420929075

$2.11

8>9

Intermediate Gear 38\19 Teeth Ass'y | Includes 8 to 9

420435316

$144.99

9

Needle Bushing

420632391

$47.49

10

Intermediate Gear Shaft

420249011

$50.99

11

Screw M24X1

420242369

$39.99

12

Gasket Ring

420430624

$1.89

13

Chain Tensioner

420236910

$41.49

14

Compression Spring

420238734

$8.89

15

Chain Tensioner

420236900

$20.99

16

Chain Guide

420236890

$20.99

17

Torx Flange Screw M8 X 25

420440374

$5.40

18

Camshaft Sprocket 42T

420253185

$77.49

19

Camshaft Chain

420297420

$153.49

20

Gasket

420431765

$4.65

21>22

Camshaft Support Ass'y | Includes 21 to 22

420210175

$291.49

22

Center Pin 8 X 12

420632010

$4.01

23

Camshaft Exhaust

420237179

$206.49

24

Camshaft Intake

420237178

$206.49

25

Cover

420201040

$10.17

26

V-Ring 20S FPM Blow By Valve

420630125

$11.63

27

Torx Flange Screw M6 X 45

420440324

$0.98

28

Chain Guide, Upper

420936500

$4.44

29>30

Camshaft Position Sensor Ass'y

420664046

$88.99

30

O-Ring

420631890

$5.18

31

Torx Flange Screw M6 X 16

420440162

$3.17

32

Drive Gear 39 Teeth

420435370

$37.99

33

Flat Head Screw M12 X 1.5

420441365

$5.82
