Partiron

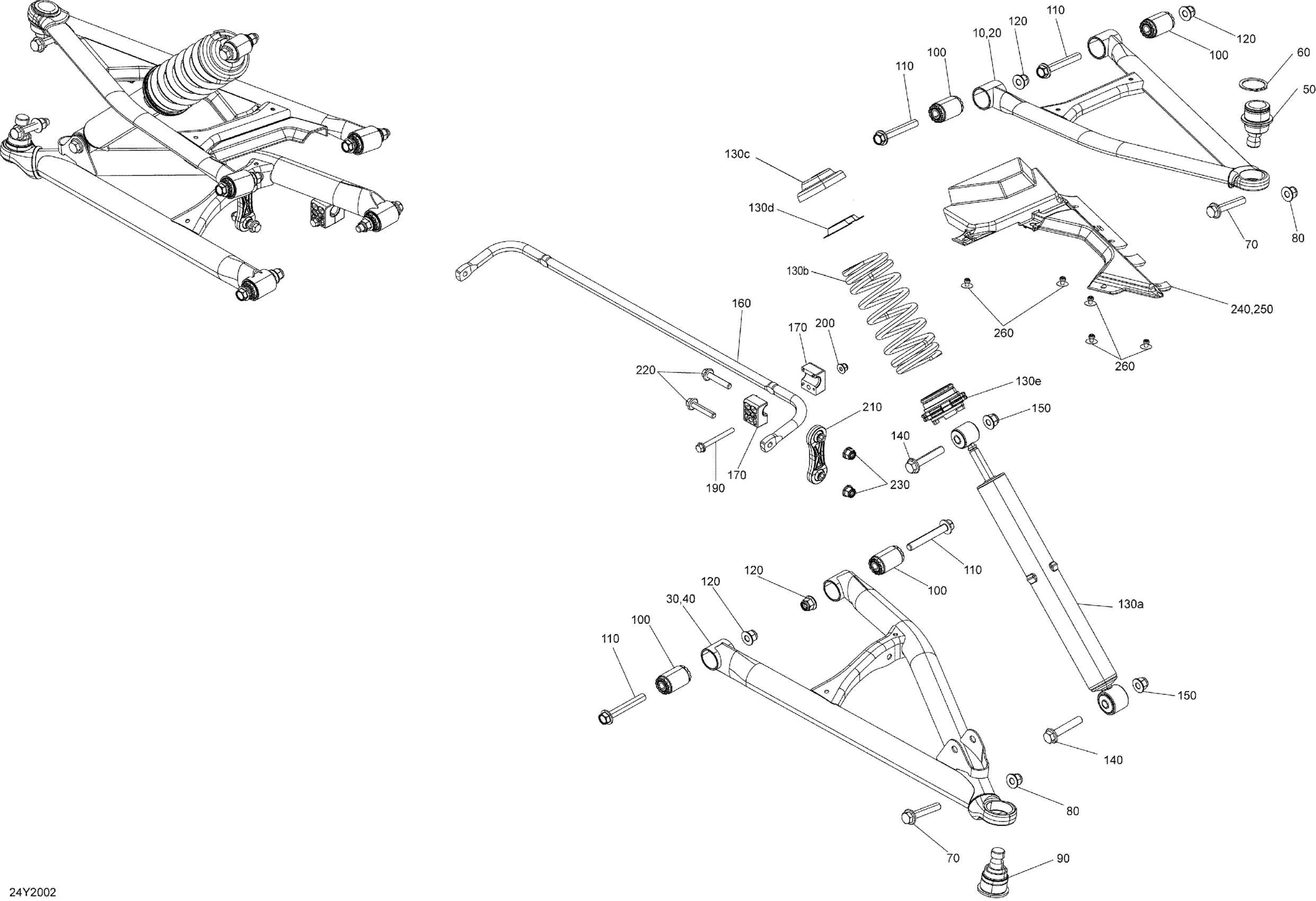

Can-Am F3 S SM6, 2020 Suspension, Front Diagram

#

Description
Price

10

Carbon Black, LH Upper Suspension Arm

706204681

$158.99

10

Orange Crush-LH Upper Arm

706203619

$158.99

20

Carbon Black RH Upper Arm | Model-Black

706201989

$158.99

20

Orange Crush-RH Upper Arm

706203620

$158.99

30

Carbon Black, LH Lower Suspension Arm

706201990

$158.99

30

Orange Crush-LH Lower Arm

706203621

$158.99

40

Carbon Black, RH Lower Suspension Arm

706201991

$158.99

40

Orange Crush-RH Lower Arm

706203622

$158.99

50

Ball Joint

706202507

$55.19

60

Circlip

293370035

$2.48

70

Hex. Flange Screw M10 X 55

207605554

$7.62

80

Flange Elastic Nut M10

233201466

$2.63

90

Ball Joint

706202508

$42.49

100

Suspension Arm Bushing

706201519

$13.76

110

Hex. Flange Screw M10 X 70

207607056

$3.38

120

Flange Elastic Nut M10

233201466

$2.63

130a

Shock

706001699

$409.99

130b

Spring

706001771

$62.49

140

Hex. Flange Screw M10 X 55

207605554

$7.62

150

Flange Elastic Nut M10

233201466

$2.63

160

Sway Bar

706202799

$90.99

170

Bushing

706201429

$10.01

190

Hex. Flange Screw M6 X 60

250000778

$3.61

200

Hex. Flange Elastic Nut M6

233261466

$1.66

210

Tie Rod

706200671

$20.99

220

Hex. Flange Screw M8 X 40

207684054

$2.00

230

Elastic Flange Nut M8

233281464

$0.83

240

LH Cable Cap

706203371

$13.99

250

RH Cable Cap

706203372

$13.99

260

Pop Rivet 3/16"

293150103

$0.52
