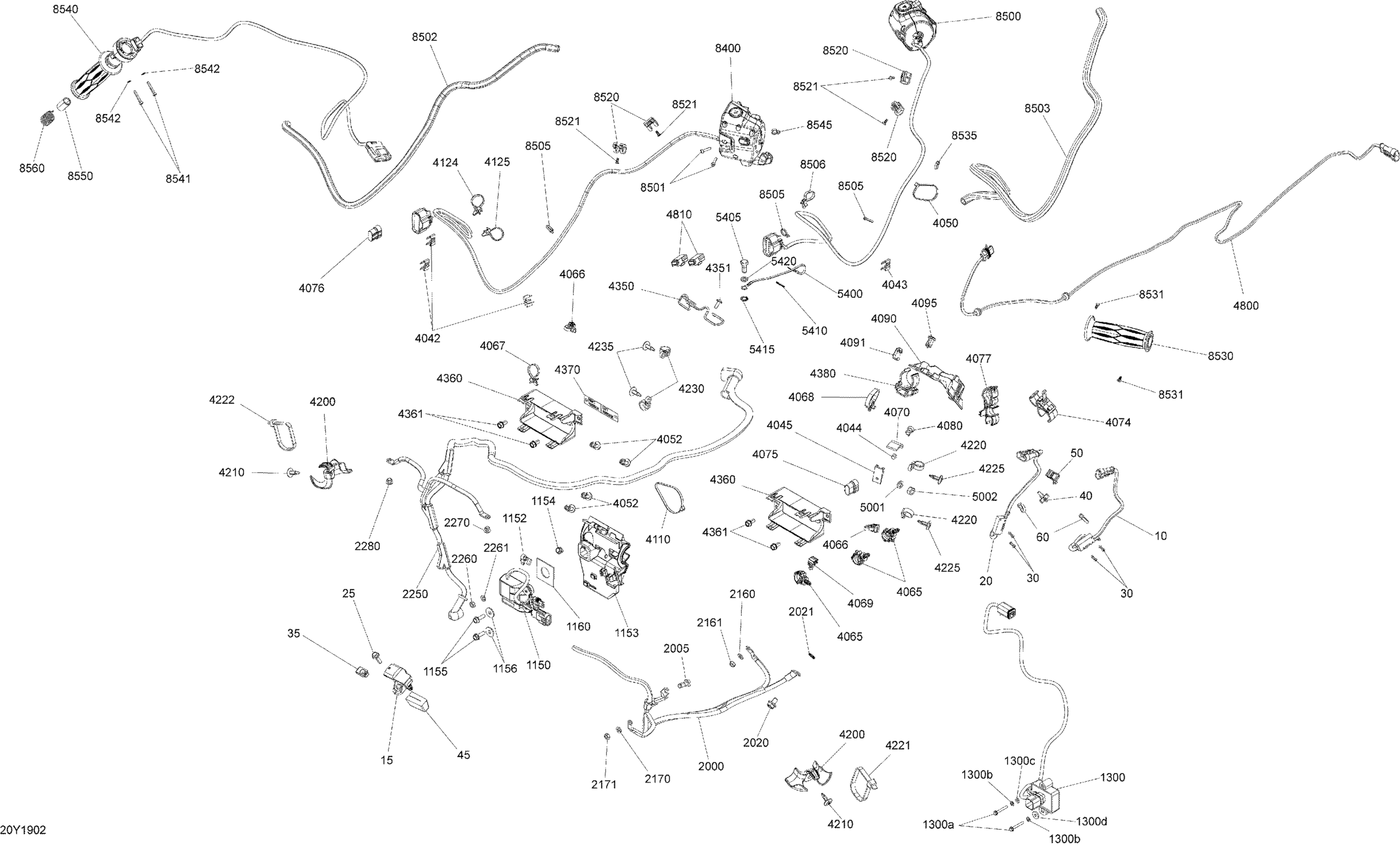

Can-Am F3 S SM6, 2019 Electrical System Accessories Diagram

#

Description
Price

10

Brake Light Switch Ass'y

710003412

$46.49

15

Pressure And Temperature Sensor

707000995

$88.99

20

Brake Pressure Switch Ass'y

710001379

$43.49

25

Hex. Flange Screw M6 X 25

207662554

$1.48

30

Pop Rivet

293150150

$2.40

35

Panel Nut M6 X 1.0

250100198

$2.11

40

Tie-Rap 173 mm

293750009

$1.04

45

Foam Filter

707000586

$5.50

50

Clip Tie-Rap

710002899

$8.49

60

Tie Wrap 142 mm

293750002

$1.25

1150

Dess Module

710004916

$179.99

1152

Tie-Rap 173 mm

293750009

$1.04

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Flat Washer 6 mm

234062410

$0.77

1160

Rubber Bumper

293830091

$8.29

1300>1300d

CCK Module Ass'y | Includes 1300 to 1300d

710006467

$194.99

1300a

Hex. Screw Forming M4 X 30

250000955

$0.90

1300b

Push Nut | Not shown

211100002

$2.19

1300c

Flat Washer, Emhart

213200016

$0.72

1300d

Flat Washer 5 mm, Stainless

234052400

$2.85

2000

Starter Cable Ass'y

710006399

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561414

$0.55

2170

Lock Washer Helical M6

234161601

$1.15

2171

Hex. Nut M6

232061600

$1.15

2250

Pos Cable

710005026

$84.99

2260

Hex. Nut M6

232061600

$1.15

2261

Lock Washer Helical M6

234161601

$1.15

2270

Rivet 6,4 mm

293150173

$4.29

2280

Rivet 6,4 mm

293150173

$4.29

4042

Lock

710001222

$2.09

4043

Lock

710001222

$2.09

4044

Pop Rivet 3/16"

390402400

$0.35

4045

Clip

270000141

$11.49

4050

Tie Wrap 368 mm

293750008

$1.04

4052

Tuflok Plastic Rivet

293150230

$1.47

4065

Support Cable

293750083

$2.29

4066

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

4067

Tie-Rap 173 mm

293750009

$1.04

4068

Tie Rap | Not Shown

710004947

$8.68

4069

Clip Tie-Rap

293750063

$8.75

4070

Rubber Pad

709000401

$9.79

4074

Support

710004613

$8.29

4075

Connector Plug

710004901

$13.22

4076

Connector Plug

710004901

$13.22

4077

Wire Support

710004669

$6.79

4080

Tie-Rap 180 mm

414115200

$0.11

4090

Harness Holder

710004794

$3.39

4091

Tie-Rap 180 mm

414115200

$0.11

4095

Tuflok Plastic Rivet

293150230

$1.47

4110

Tie Wrap 368 mm

293750008

$1.04

4124

Tie-Rap 173 mm

293750009

$1.04

4125

Tie-Rap 173 mm

293750009

$1.04

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.69

4220

Tie Rap

710004424

$6.29

4221

Tie-Rap 180 mm

414115200

$0.11

4222

Tie-Rap 180 mm

414115200

$0.11

4225

Tuflock Phillips Plastic Screw

414745900

$1.69

4350

Wire Guide

709401619

$15.49

4351

Torx Screw M5 X 14

250000742

$1.47

4360

Fuse Holder Support

710004472

$10.01

4361

Hex. Flange Screw M6 X 12

210261250

$1.90

4370

RH/LH Fuse Box Decal

710003077

$0.64

4380

Cable Support

710004299

$4.19

4800

Tail Harness

710006428

$18.49

4810

Connector With Cap

710004456

$12.49

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72

5400

Fuel Tank Cable

710006436

$19.49

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5410

Lock Washer Serrated M6

250200041

$1.15

5415

Serrated Lock Washer 8 mm

234481608

$1.15

5420

Washer

250200111

$2.11

8400

Housing-Switch LH

710006666

Unavailable

8500

RH Switch Housing | Included 5d to 5d1

710004583

$309.99

8501

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.11

8502

Braided Sleeve

710004231

$38.99

8503

Braided Sleeve

710004231

$38.99

8505

Tie Wrap 94 mm | 4X4

293750001

$1.03

8505

Tie Wrap 94 mm | 4X4

293750001

$1.03

8506

Tie Rap

293750074

$1.29

8520

Wire Guide

709401804

$3.09

8521

Torx Cutting Screw, M4 X 10

250000453

$3.89

8530

Handle Grip

709401054

$86.99

8531

Torx Cutting Screw, M4 X 10

250000453

$3.89

8540

Throttle Handle Grip | RS

709401055

$249.99

8541

Socket Screw, M4 X 25

205042594

$2.11

8542

Flat Washer 4 mm

234040600

$0.55

8550

Bushing

709401801

$2.53

8560

Spring

709401937

$19.99

9000

Tie-Rap 180 mm

414115200

$0.11
