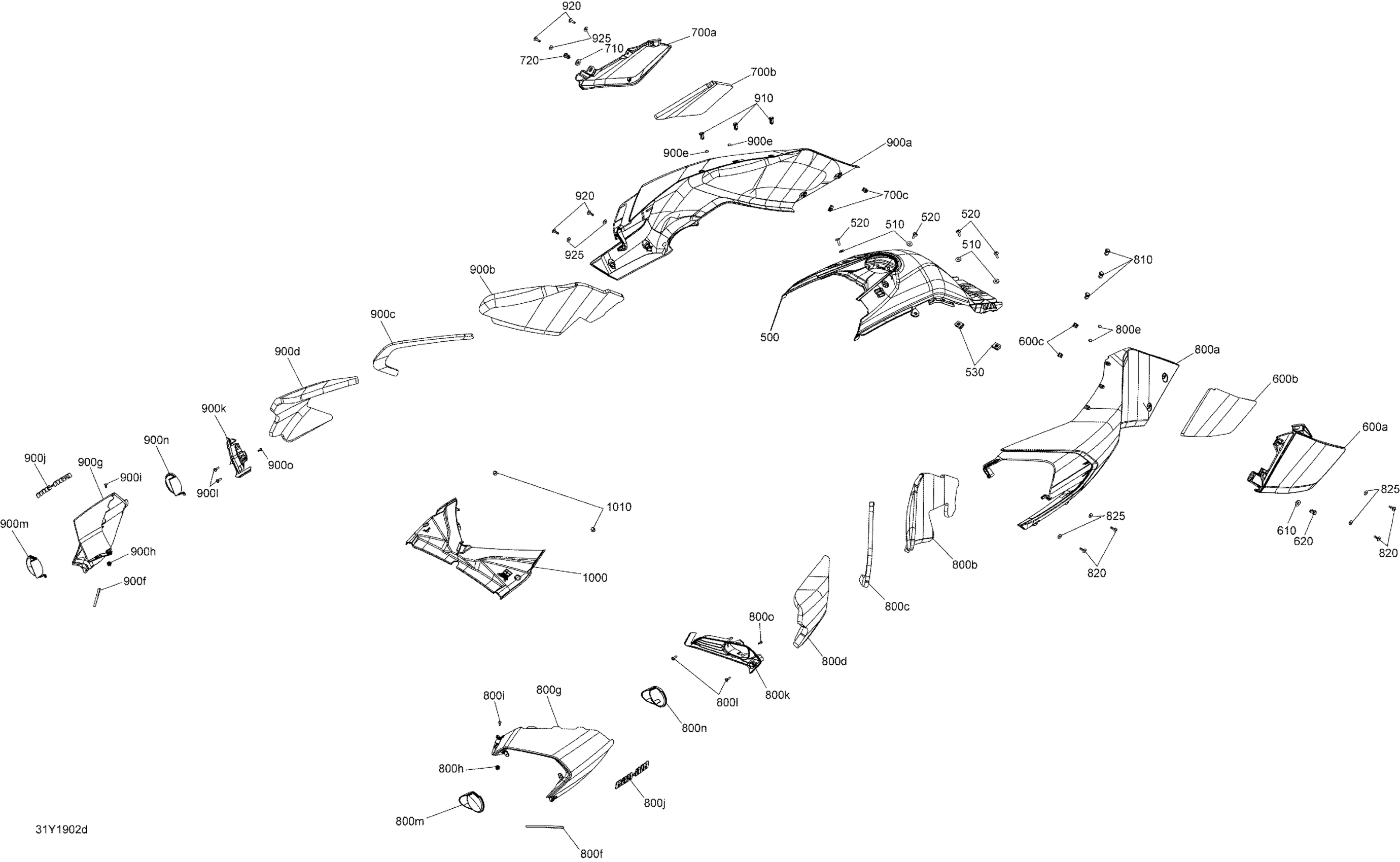

Can-Am F3 S SM6, 2019 Body And Accessories Fairing Diagram

#

Description
Price

500

Deep Black, Tank Cover

705013571

$244.99

510

Stainless Steel Flat Washer

234062670

$2.11

520

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100208

$1.46

600a

Monolith Black, LH Low Fairing

705009918

$104.99

600a

Oxford Blue, LH Low Fairing | Package S Oxford Blue

705010775

$194.99

600a

Liquid Titan, LH Low Fairing | Model B-429 Liquid Titan

705013390

$194.99

600b

Acoustic Foam

705009153

$14.49

600c

Panel Nut M5 X 0.8

250000958

$4.23

610

Spacer

705010890

$2.89

620

Tuflok Plastic Rivet

293150230

$1.47

700a

Monolith Black, RH Lower Fairing

705009919

$104.99

700a

Oxford Blue, RH Lower Fairing | Package S Oxford Blue

705010777

$254.99

700a

Liquid Titan, RH Lower Fairing | Model B-429 Liquid Titan

705013395

$254.99

700b

Acoustic Foam

705009154

$13.49

700c

Panel Nut M5 X 0.8

250000958

$4.23

710

Spacer

705010890

$2.89

720

Tuflok Plastic Rivet

293150230

$1.47

800a

LH Lateral Fairing - Oxford Blue | Oxford Blue

705010779

$369.99

800a

Liquid Titan, LH Lateral Fairing | Model B-429 Liquid Titan

705013396

$369.99

800b

Acoustic Foam

705009155

$16.99

800c

Acoustic Foam

705009157

$8.49

800d

Acoustic Foam

705009159

$16.99

800e

Polyurethane Stopper

705006634

$4.76

800f

Seal 1000Mm Long

219704373

$8.26

800g

Carbon Black, LH Air Scoop

705011175

$224.99

800g

Deep Black, LH Air Scoop

705011456

$42.99

800h

Anchor Pin

705009430

$1.37

800i

Torx Truss Screw K40 X 12

250000577

$2.11

800j

Matt Black, Logo Can-Am

704905126

$38.99

800j

Liquid Titan, Logo Can-Am | Model B-429 Liquid Titan

704907415

$71.99

800k

Deep Black, LH Air Vent Grid

705010137

$19.99

800l

Torx Screw K50 X 16

250000720

$1.69

800m

Deep Black, LH Light Cap

705007787

$10.99

800n

LH Heat Shield

705008995

$13.99

800o

Torx Truss Screw K40 X 12

250000577

$2.11

810

Tuflok Plastic Rivet

293150230

$1.47

820

Torx Truss M5 X 20

250000586

$4.44

825

Stainless Steel Flat Washer M5

234052670

$1.01

900a

RH Lateral Fairing - Oxford Blue | Oxford Blue

705010781

$369.99

900a

Monolith Black, RH Lateral Fairing

705010839

$254.99

900a

Liquid Titan, RH Lateral Fairing | Model B-429 Liquid Titan

705013572

$369.99

900b

Acoustic Foam

705009156

$16.99

900c

Acoustic Foam

705009158

$8.49

900d

Acoustic Foam

705009160

$16.99

900e

Polyurethane Stopper

705006634

$4.76

900f

Seal 1000Mm Long

219704373

$8.26

900g

Carbon Black, RH Air Scoop

705011176

$224.99

900g

Deep Black, RH Air Scoop

705011399

$42.99

900h

Anchor Pin

705009430

$1.37

900i

Torx Truss Screw K40 X 12

250000577

$2.11

900j

Matt Black, Logo Can-Am

704905126

$38.99

900j

Liquid Titan, Logo Can-Am | Model B-429 Liquid Titan

704907415

$71.99

900k

Deep Black, RH Air Vent Grid

705010138

$19.99

900l

Torx Screw K50 X 16

250000720

$1.69

900m

Deep Black, RH Light Cap

705008963

$10.99

900n

RH Heat Shield

705008996

$13.99

900o

Torx Truss Screw K40 X 12

250000577

$2.11

910

Tuflok Plastic Rivet

293150230

$1.47

920

Torx Truss M5 X 20

250000586

$4.44

925

Stainless Steel Flat Washer M5

234052670

$1.01

1000

Service Center Fairing

705008058

$33.99

1010

Rubber Bumper

293830005

$8.09
