Description

Price

1

Clutch Shaft Kit | Speed (1)

420481150

$301.99

2

Needle Bearing

420432131

$31.99

3

Gear Set | Speed (6)

420481175

$144.99

4

Retaininig Ring 34 X 2

420245311

$8.50

5

Gear Set | Speed (4)

420481165

$144.99

6

Thrust Washer

420627294

$7.19

7

Needle Bearing

420932976

$27.49

8

Gear Set | Speed (3)

420481160

$349.99

9

Groove Ring

420245361

$8.50

10

Gear Set | Speed (2)

420481155

$184.99

11

Thrust Washer

420627298

$4.23

12

Needle Bearing

420232533

$29.99

13

Gear Set | Speed (5)

420481170

$144.99

14

Gear Set | Reverse (R)

420481140

$114.99

15

Needle Bearing

420632821

$56.99

16

Retaininig Ring 41.5 X 2

420245411

$14.67

17

Thrust Washer

420626831

$12.65

18

Thrust Washer

420626851

$7.19

19

Needle Cage

420432034

$35.99

20

Bolt

420249050

$20.99

21

Retaining Plate

420651620

$14.74

22

Flat Head Screw M8 X 20

420641407

$4.34

23

Screw M6 X 20

420941436

$3.17

24

Ball Bearing

420232782

$24.49

25

RETAININIG RING 30 X 2 - Call your local BRP dealership

420945619

$4.23

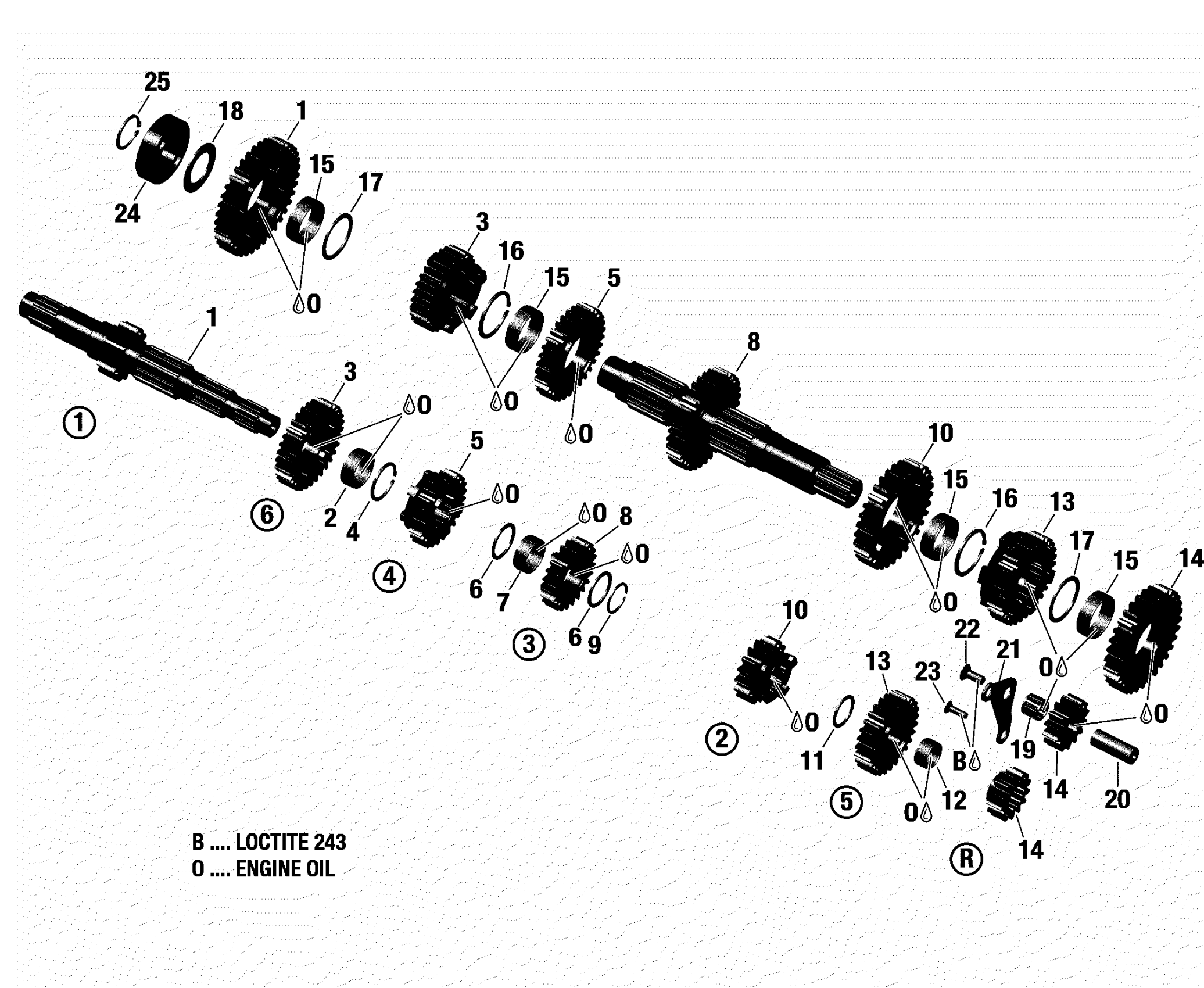

Can-Am 002 - F3 S SM6, 2019 05- Gear Box Diagram

Clutch Shaft Kit | Speed (1)

Needle Bearing

Gear Set | Speed (6)

Retaininig Ring 34 X 2

Gear Set | Speed (4)

Thrust Washer

Needle Bearing

Gear Set | Speed (3)

Groove Ring

Gear Set | Speed (2)

Thrust Washer

Needle Bearing

Gear Set | Speed (5)

Gear Set | Reverse (R)

Needle Bearing

Retaininig Ring 41.5 X 2

Thrust Washer

Thrust Washer

Needle Cage

Bolt

Retaining Plate

Flat Head Screw M8 X 20

Screw M6 X 20

Ball Bearing

RETAININIG RING 30 X 2 - Call your local BRP dealership
