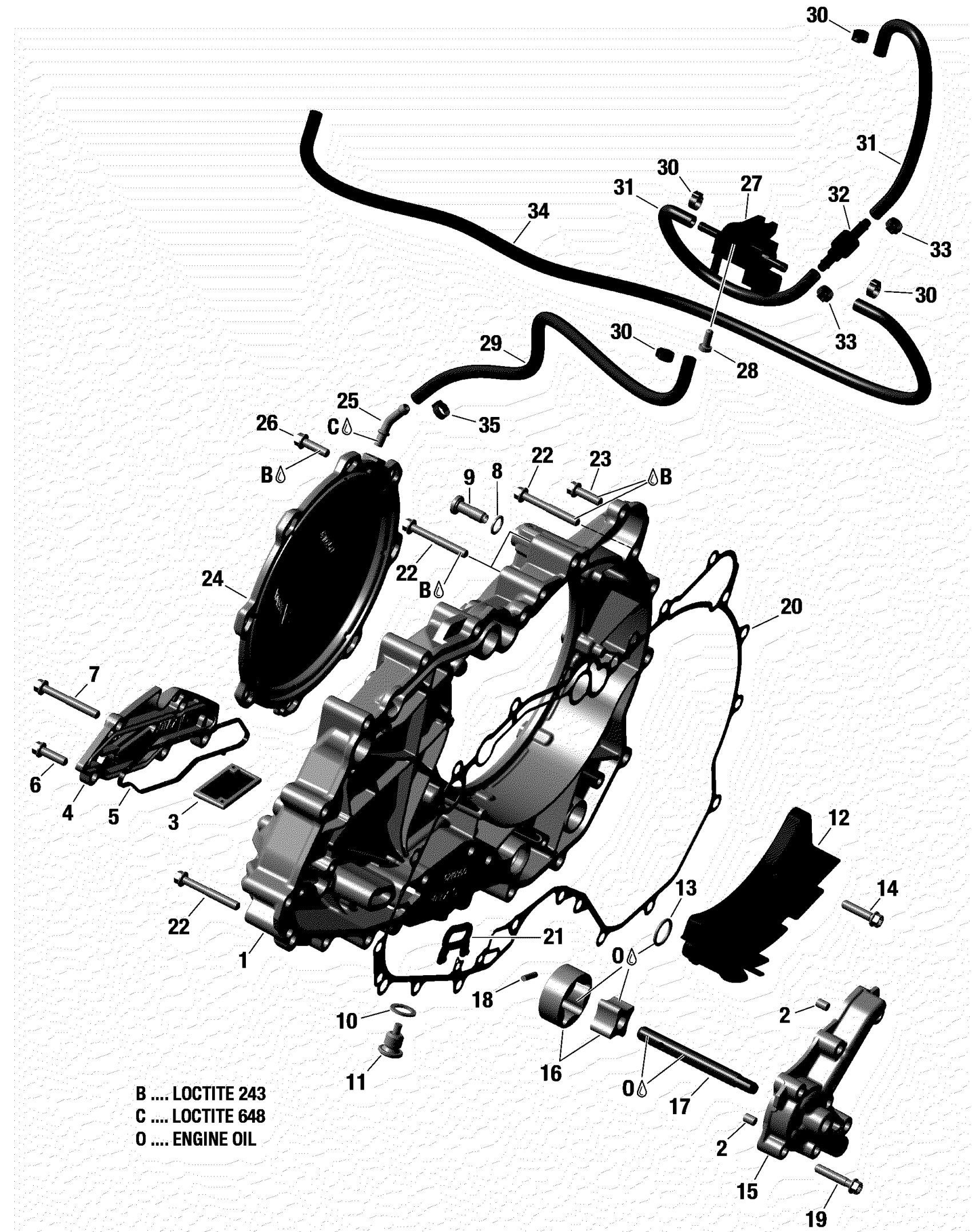

Can-Am F3 S SM6, 2019 Clutch Cover Diagram

#

Description
Price

1>2

Clutch Cover Ass'y | Includes 1 to 2

420210353

$487.49

2

Center Pin

420232210

$8.26

3

Oil Sieve

420656990

$13.10

4

Oil Duct Cover

420210871

$69.99

5

Gasket

420250630

$11.64

6

Torx Flange Screw M6 X 20

420440207

$3.06

7

Torx Flange Screw M6 X 45

420440324

$0.98

8

Oil Seal

420230150

$2.85

9

Banjo Bolt

420441701

$20.49

10

Copper Washer

420250640

$0.98

11

Magnetic Drain Plug M12 X 1.5

420241780

$17.59

12

Oil Guiding Plate

420224080

$17.69

13

O-Ring

420430220

$8.26

14

Torx Flange Screw M6 X 25

420440234

$3.06

15

Oil Pump Housing

420612240

$39.99

16

Oil Pump Rotor

420956278

$72.99

17

Oil Pump Shaft

420637140

$43.49

18

Needle Pin

420232731

$4.01

19

Torx Flange Screw M6 X 30

420440647

$2.00

20>21

Gasket Ass`y

420450032

$25.99

21

Not Available As Spare Parts

XXX

Unavailable

22

Torx Flange Screw M6 X 45

420440324

$0.98

23

Torx Flange Screw M6 X 20

420440207

$3.06

24>25

Diaphragm Cover

420212238

$148.49

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Torx Flange Screw M6 X 20

420441835

$3.17

27

Solenoide Valve

420664635

$94.99

28

Torx Screw M5 X 12

420640086

$2.11

29

Hose 640mm

420260283

$23.99

30

Clamp 9.2-10.9 mm

420853133

$3.56

31

Hose 640mm

420260283

$23.99

32

Check Valve

420201480

$46.99

33

Gear Clamp

420851463

$7.51

34

Hose 640mm

420260283

$23.99

35

Gear Clamp

420851468

$5.97
