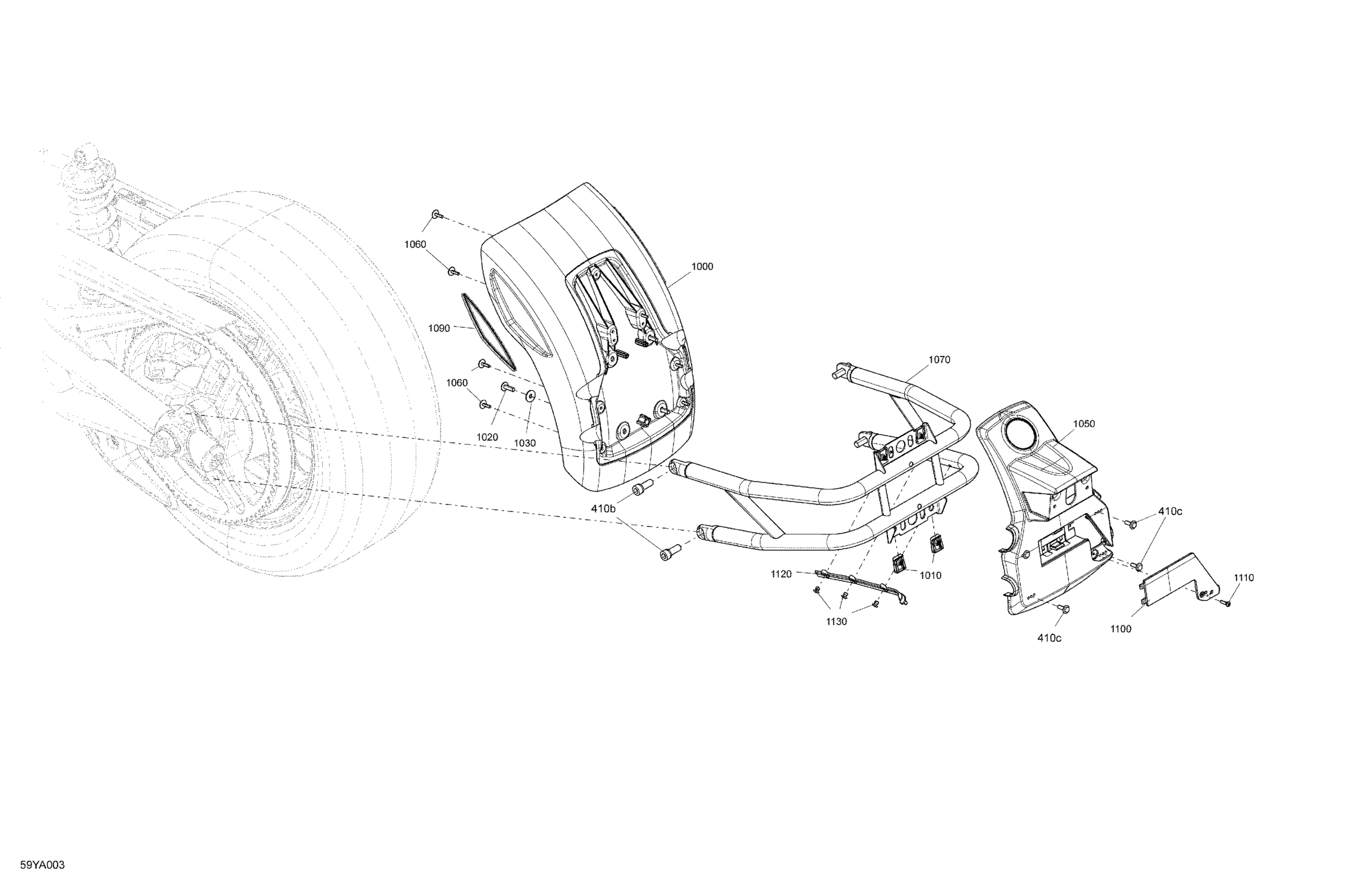

Can-Am F3 S SE6 - Monolith Black Satin, 2021 Body - Rear Fender - Australia - Europe - Japan Diagram

Description

Price

410b

Allen Screw S.GRIP M10 X 25

205502560

$6.77

410c

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

1000

Rear Fender

705011661

$204.99

1010

Panel Nut M6 X 1.0

250100208

$1.46

1020

Torx Truss Screw M6 X 20

250000705

$2.11

1030

Flat Washer

250200082

$0.42

1050

Rear Fender Moulding

705008241

$204.99

1060

Screw M4 X 16

250000725

$3.49

1070

Carbon Black Rear Fender Support

705008249

$214.99

1090

Amber, Lateral Reflector

705002423

$15.49

1100

Cover Moulding

705008990

$11.49

1110

Flange Torx Screw K40 X 16

250000287

$2.11

1120

Cable Cap

706202219

$6.98

1130

Rivet 3/16"

293150102

$0.70
