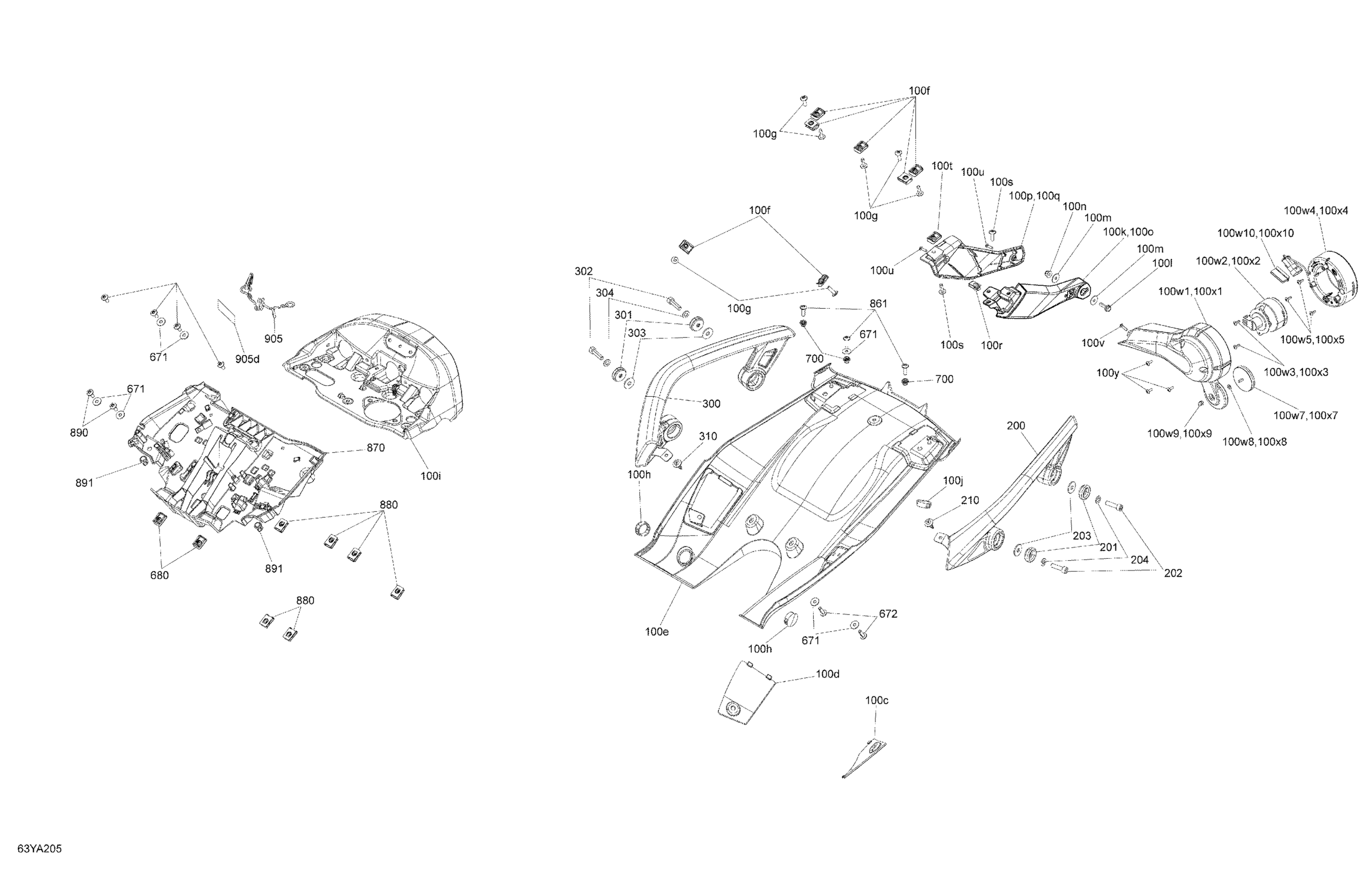

Can-Am On-Road 002 - F3 S SE6 - Monolith Black Satin, 2021 07- Body - Cargo - Japan Diagram

#

Description
Price

100c

LH Front Cap

708301513

$16.99

100d

RH Front Cap

708301514

$16.99

100e

Under Tail Cover

708001415

$54.99

100f

Panel Nut M6 X 1.0

250100208

$1.46

100g

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100h

Black, Nylon Cap

414916600

$4.69

100i

Taillight Support

708002814

$26.99

100j

Black, Nylon Cap

414916600

$4.69

100k

LH Flasher Support

708002222

$71.99

100k

LH Flasher Support

708002222

$71.99

100l

Hex. Flange Screw M6 X 20

207662044

$2.00

100m

Flat Washer

224060201

$1.26

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100o

RH Flasher Support

708002223

$71.99

100o

RH Flasher Support

708002223

$71.99

100p

LH Cap Support

708001624

$16.99

100q

RH Cap Support

708001625

$16.99

100r

Panel Nut M6 X 1.0

250100198

$2.11

100s

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100t

Panel Nut M6 X 1.0

250100208

$1.46

100u

Torx-Truss Pt K40 X 16

250000759

$2.11

100v

Flange Torx Screw K40 X 16

250000287

$2.11

100w1

LH Housing Ass'y

708002232

$31.99

100w2

Rear Flasher

710004057

$163.99

100w3

Torx Truss PT K40 x 12

250001131

$2.11

100w4

Rear Light

710004056

$402.49

100w5

Torx Truss PT K40 x 12

250001131

$2.11

100w7

Red Reflector

705011221

$14.49

100w8

Flat Washer M5

234051670

$2.11

100w9

Cap Nut M5

250100152

$2.00

100w10

Neoprene Seal 3000Mm Long

219704371

$51.99

100x1

RH Housing Ass'y

708002233

$31.99

100x2

Rear Flasher

710004057

$163.99

100x3

Torx Truss PT K40 x 12

250001131

$2.11

100x4

Rear Light

710004056

$402.49

100x5

Torx Truss PT K40 x 12

250001131

$2.11

100x7

Red Reflector

705011221

$14.49

100x8

Flat Washer M5

234051670

$2.11

100x9

Cap Nut M5

250100152

$2.00

100x10

Neoprene Seal 3000Mm Long

219704371

$51.99

100y

Torx Truss PT K40 x 12

250001131

$2.11

200

LH Rear Holding Handle

708003456

$105.99

201

Bushing

708302461

$19.49

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

203

Flat Washer 8 mm

234082410

$1.47

204

Stainless Steel Flat Washer 8 mm

234081670

$0.67

210

Tuflock Phillips Plastic Screw

414745900

$1.69

300

RH Rear Holding Handle

708003457

$105.99

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Insert Half Hex Body M6 x 1.0

250100199

$3.19

861

Torx Screw M6 X 20

250000722

$1.68

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Truss M8 X 16

250000881

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

905

Lanyard | Included 905 to 905d

708002532

$22.99

905d

Cord Decal

704905127

Unavailable
