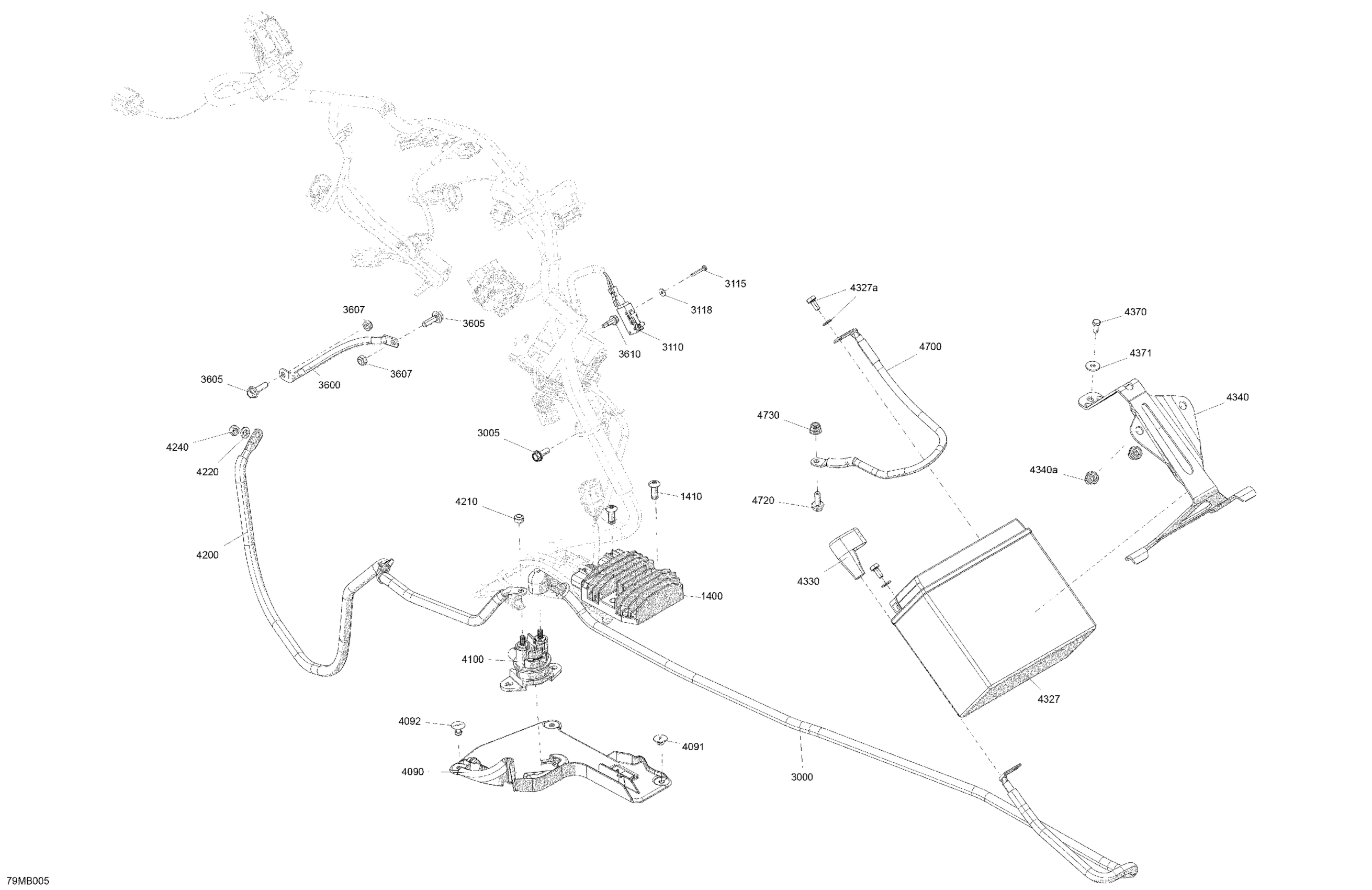

Ski-Doo 002 - EXPEDITION SPORT 600 ACE - North America, 2022 08- Electric - Lower Section Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Monobolt Rivet 6.4

293150182

$3.09

Chassis Wiring Harness

515178732

$329.99

Hex. Flange Screw M6 X 16

250001062

$1.57

Switch Ass'y

515177460

$46.99

Hex Screw M3 X 20

207132044

$2.11

Flat Washer M3, Stainless

234032600

$0.55

Ground Wire

515178338

$16.49

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M5 X 16

250000911

$0.85

Starter Relay Support

515178244

$3.49

Pop Rivet 3/16"

293150103

$0.55

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Starter Relay

278003012

$42.49

Battery Wire

515178336

$47.99

Elastic Stop Nut M6

232561434

$1.99

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561434

$1.99

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

Battery Bolt Kit

250000282

$7.29

Protector Cap | STD

710001817

$11.12

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

Insert

293450275

$12.99

Hex. Screw M5 X 12

207151244

$0.90

Washer | DS 650 X

391301600

$0.48

Ground Wire

515178155

$26.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Elastic Flange Nut M6 X 1.0

233261416

$2.11
