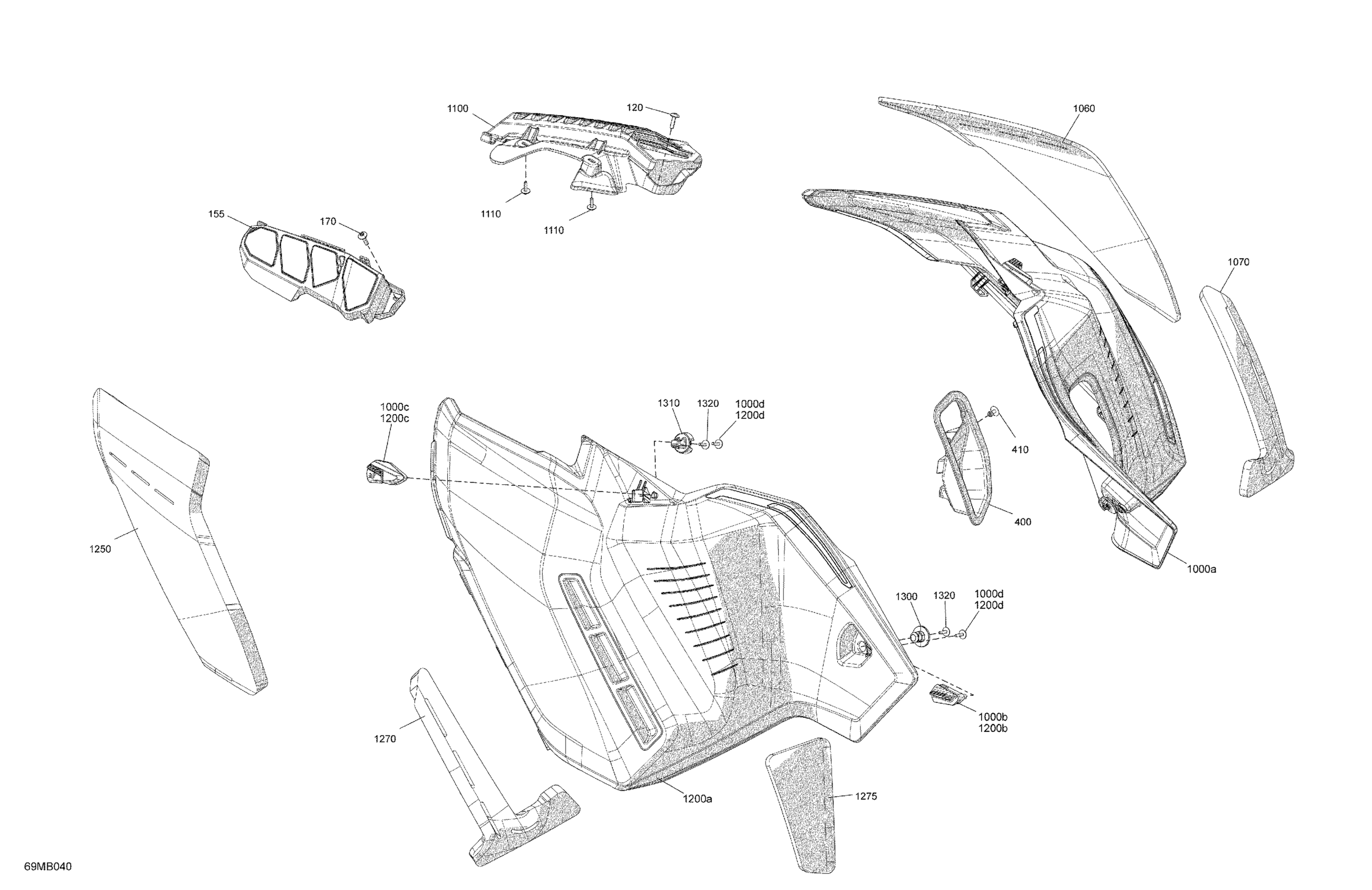

Ski-Doo EXPEDITION SPORT 600 ACE - 2022 Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$1.74

155

LH Hood Trim

517306690

$29.20

170

Torx Screw M5 X 20

250000528

$1.74

400

Reverse Lever Trim

517306302

$5.75

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1000a

Deep Black, RH Body Panel

517306747

$166.12

1000b

RH Rear Latch

517305773

$14.22

1000c

RH Front Latch

517305979

$13.88

1000d

Screw M4 X 16

250000725

$2.87

1060

RH Front Panel Foam

517306843

$13.63

1070

RH Rear Panel Foam

517306845

$13.63

1100

RH Hood Grille Ass'y

517308292

$75.35

1110

Screw M4 X 16

250000725

$2.87

1200a

Deep Black, LH Body Panel

517306750

$175.35

1200b

LH Rear Latch

517305774

$14.22

1200c

LH Front Latch

517305980

$14.22

1200d

Screw M4 X 16

250000725

$2.87

1250

LH Front Panel Foam

517306863

$13.63

1270

LH Rear Panel Foam

517306865

$13.63

1275

LH Rear Panel Foam

517306496

$5.49

1300

Rear Stud

517305985

$15.00

1310

Front Stud

517305988

$15.35

1320

Screw M4 X 16

250000725

$2.87
