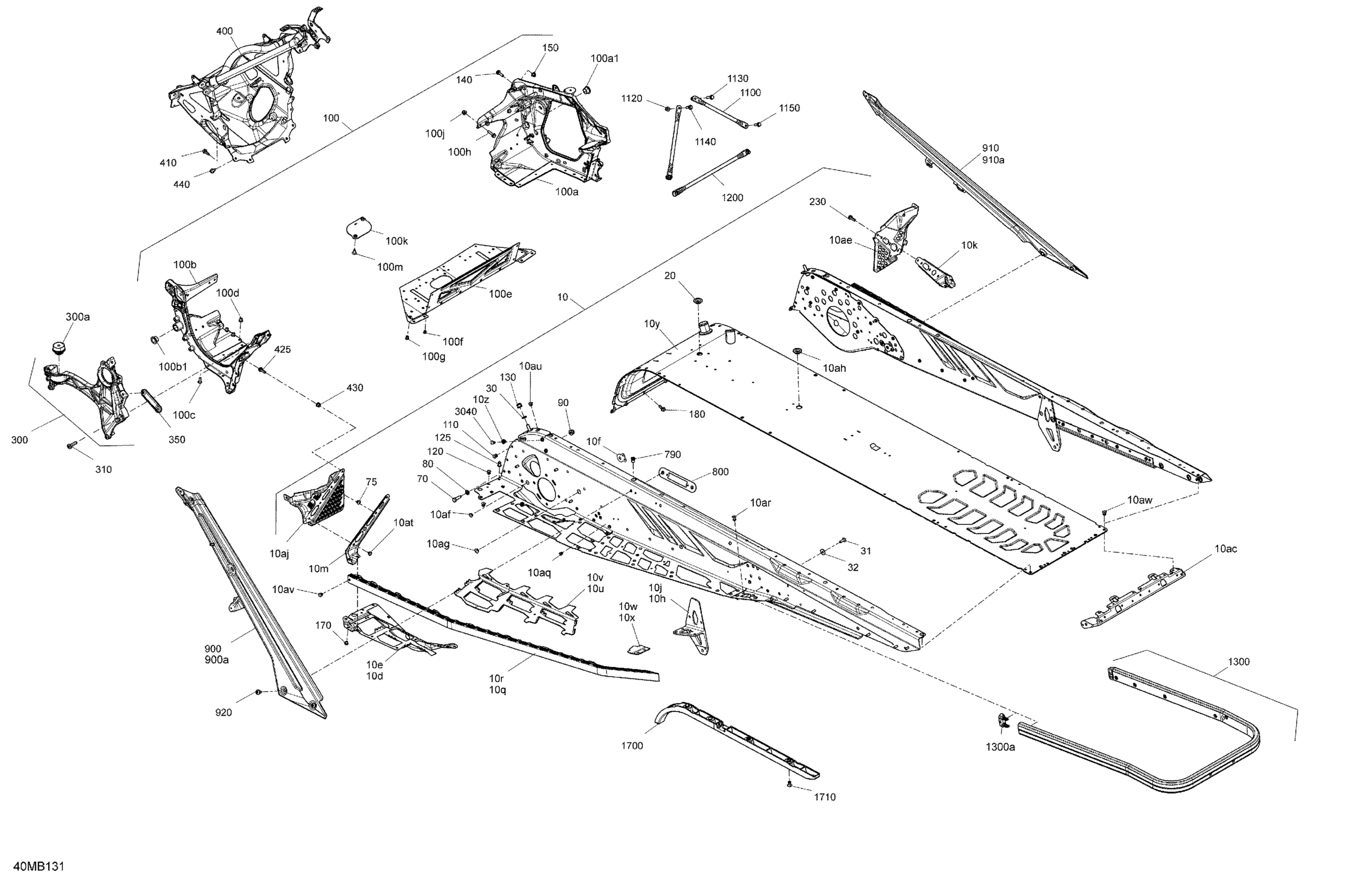

Ski-Doo EXPEDITION SPORT 600 ACE - 2022 Frame - System Diagram

Chassis Tunnel Module 154 | Includes 10 to 10a39

415130857

$3,299.97

RH Footrest Reinforcement

518332578

$81.51

LH Footrest Reinforcement

518332577

$81.51

Front Suspension Arm Reinforcement

518335959

$3.85

RH Rear Suspension Support

518334407

$41.51

LH Bracket

518329632

$43.05

Stirrup Reinforcement

518331253

$18.43

Deep Black, LH Chassis Reinforcement

518332924

$18.43

RH Roller

518328451

$180.74

LH Roller

518328452

$180.74

RH Central Tunnel Reinforcement

518331564

$33.05

LH Central Tunnel Reinforcement

518331565

$33.05

LH Reinforcement Plate

518329088

$3.08

RH Reinforcement Plate

518329089

$4.22

Radiator Tunnel 154

518335129

$692.28

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Rear Cap

518328990

$20.74

RH Footrest

518330691

$20.74

Full Moon Dart 8 mm

293730041

$2.12

Full Moon Dart 10 mm

293730059

$4.42

Black, Plug

293730052

$6.37

LH Foot Protector

518331559

$23.82

Rivet Avibulb 3/16

293150203

$0.29

Rivet

293150183

$2.06

Hemlock Rivet, 6.5 mm

293150096

$3.17

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

Flat Washer 8 mm

234081410

$0.69

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11

Hex Screw M8 X 30

250000942

$0.92

Hemlock Rivet, 6.5 mm

293150096

$3.17

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module Ass'y | Includes 100 to 100m

518332686

$570.74

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$186.89

Leg Bushing

505072690

Unavailable

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Bushing

505072690

Unavailable

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Bottom Plate

518332715

$34.58

Rivet Avibulb 3/16

293150203

$0.29

Insert M5 X 0.8

293450268

$1.95

Hex. Flange Screw M6 X 25

250000945

$3.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Oil Plate

518329454

$15.34

Torx Truss Screw M6 X 12

250000767

$1.66

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Hemlock Rivet, 6.4 mm

293150174

$6.43

Hemlock Rivet 6.5 mm

293150120

$7.23

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Insert M5 - 0.8

293450267

$4.22

Hex. Flange Screw M6 X 16

207661646

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

LH Side Member Ass'y | Includes 300 to 300b

518333691

$181.51

Vibration Damper

512061516

$57.66

Screw-Pan HD.Torx M8X30

250001060

$0.65

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$9.69

Chassis Suspension Module

518334461

$653.05

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Insert

293450278

$4.09

Member Fixation Plate

518329480

$10.03

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$108.43

LH Rear Diagonal Cross Member

518333356

$108.43

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$108.43

RH Rear Diagonal Cross Member

518332559

$108.43

Pan Head Torx Screw M8 X 12

250000887

$1.56

Upper Colomn Support

518329370

$20.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662556

$3.61

Hex. Flange Screw M6 X 20

207662046

$1.74

Hex. Flange Screw M6 X 20

207562056

$1.74

Center Column Support

518329755

$3.46

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$154.99

Bumper Cap

520001629

$0.95

Front Protector

518329982

$17.66

Pop Rivet 3/16”

293150108

$1.23

Dart

293730079

$1.92
